74270 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) ELECTRICAL SYSTEM Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

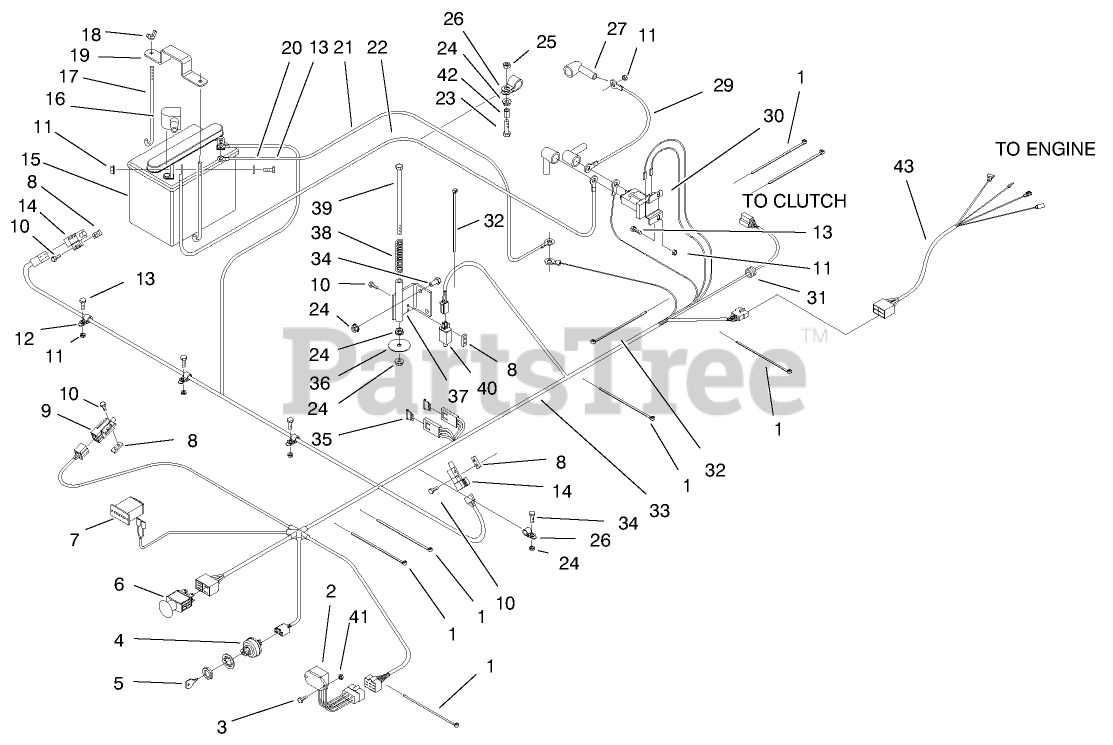

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

2

Toro E543316

Module-Safety
(Superseded to 1-543316)

$189.99

$

In Stock, only 1 left!

0

3

Toro E807533

Bolt-CARR
(Superseded to 1-807533)

$1.49

$

In Stock, Qty 6

0

4

Toro E543070

Ignition Switch
(Superseded to 1-543070)

$44.99

$

In Stock, only 2 left!

0

5

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

6

Toro E633673

Switch
(Superseded to 103-5221)

$58.99

$

In Stock, Qty 20+

0

7

Toro E513374

Meter-Hour
(Superseded to 1-513374)

$69.99

$

In Stock, only 1 left!

0

8

Toro E633181

Plate
(Superseded to 1-633181)

$6.49

$

In Stock, only 2 left!

0

9

Toro E633110

Switch-Brake
(Superseded to 1-633110)

$22.99

$

In Stock, only 2 left!

0

10

Toro 32104-81

SCREW-HEAD, PAN

$0.99

$

Usually ships in 3-6 days

0

11

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

12

Toro E323229

Clip
(Superseded to 1-323229)

$2.99

$

Usually ships in 3-6 days

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro E633111

Switch-Drive Lever
(Superseded to 1-633111)

$21.99

$

In Stock, Qty 19

0

15

Toro E603479

Battery
(Superseded to 105-1692)

$

$

Not available

16

Toro E543391

Insulator Battery
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

17

Toro E633651

Bolt
(Superseded to 1-633651)

$7.99

$

In Stock, Qty 11

0

18

Toro E543792

Wingnut
(Superseded to 1-543792)

$6.49

$

In Stock, Qty 15

0

19

Toro E633652

Strap-Hold Down
(Superseded to 1-633652-03)

$21.99

$

In Stock, only 3 left!

0

20

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro E523282

Cable-Ground
(Superseded to 1-523282)

$

$

Not available

22

Toro E523281

Wire
(Superseded to 109-7630)

$43.99

$

In Stock, only 2 left!

0

23

Toro E800279

Bolt-TAP
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro E804256

Nut-Lock
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

26

Toro E633396

Clip
(Superseded to 1-633396)

$5.49

$

Usually ships in 3-6 days

0

27

Toro E543393

Insulator Solenoid
(Superseded to 1-543393)

$5.49

$

In Stock, only 2 left!

0

29

Toro E633306

Wire-Starter
(Superseded to 109-7620)

$25.99

$

In Stock, only 1 left!

0

30

Toro E513075

Switch-Solenoid
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

31

Toro E543286

Grommet
(Superseded to 1-543286)

$12.99

$

Usually ships in 3-6 days

0

32

Toro E303287

Tie-Plastic
(Superseded to 1-303287)

$1.49

$

Usually ships in 3-6 days

0

33

Toro E653154

Harness-Wiring
(Superseded to 1-653154)

$313.99

$

In Stock, only 3 left!

0

34

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

35

Toro E816001

Fuse
(Superseded to 1-816001)

$6.49

$

In Stock, Qty 13

0

36

Toro E653036

Wahser
(Superseded to 1-653036)

$5.49

$

In Stock, only 2 left!

0

37

Toro E652072

Bracket-Switch, Seat
(Superseded to 1-652072-03)

$

$

Not available

38

Toro E523415

Spring
(Superseded to 1-523415)

$33.99

$

In Stock, only 1 left!

0

39

Toro E800282

Screw
(Superseded to 1-800282)

$5.49

$

In Stock, only 1 left!

0

40

Toro E513152

Switch-Seat
(Superseded to 1-513152)

$13.99

$

In Stock, Qty 15

0

41

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Toro E633082

Bushing
(Superseded to 1-633082)

$11.99

$

Usually ships in 3-6 days

0

43

Toro E613262

Harness-Wire
(Superseded to 1-613262)

$37.99

$

Usually ships in 3-6 days
