74270 (Z 147) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) 44" DECK Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

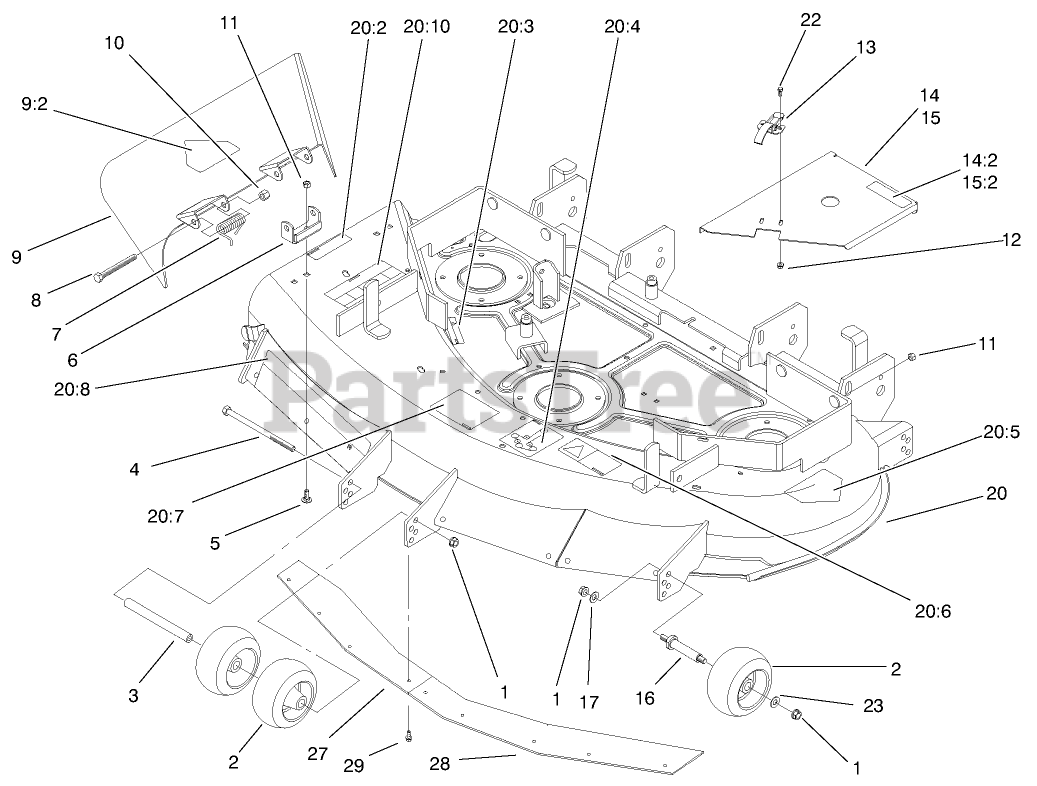

44" DECK Parts Diagram

  • Title

1

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

2

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 16

0

3

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

4

Toro 323-28

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

5

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

6

Toro 29-5590-01

BRACKET-PIVOT

$35.99

$

Usually ships in 3-6 days

0

7

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

8

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

9

Toro 100-4295

DISCHARGE CHUTE W/DECAL-CE
(Superseded to 105-4626)

$

$

Not available

9:2

Toro 93-7316

DECAL-DANGER

$10.99

$

In Stock, Qty 20+

0

10

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

11

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

12

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 18

0

13

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

14

Toro 100-3961

LH COVER ASM

$

$

Not available

14:2

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

15

Toro 100-3962

RH COVER ASM

$

$

Not available

15:2

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

16

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

17

Toro E303327

Washer
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

20

Toro 99-8948

44" DECK ASM W/DECALS-INTL

$

$

Not available

20:2

Toro 93-7828

DECAL-WARNING, DEFLECTOR

$23.99

$

Usually ships in 3-6 days

0

20:3

Toro 98-1977

DECAL-WARNING

$11.99

$

Usually ships in 3-6 days

0

20:4

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 1 left!

0

20:5

Toro 93-7010

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

20:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

20:7

Toro 99-8939

DECAL-ANTI SCALP

$28.99

$

Usually ships in 3-6 days

0

20:8

Toro 100-3967

DECAL

$

$

Not available

20:10

Toro 93-7824

DECAL-DANGER

$24.99

$

Usually ships in 3-6 days

0

22

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

23

Toro E373034

Washer
(Superseded to 1-373034)

$3.49

$

In Stock, Qty 20+

0

27

Toro 100-3257-03

PLATE-BLOWOUT, RH

$162.99

$

Usually ships in 3-6 days

0

28

Toro 100-3258-03

PLATE-BLOWOUT, LH

$162.99

$

Usually ships in 3-6 days

0

29

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0
