74269 (Z 597-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) TANK AND FUEL LINE ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

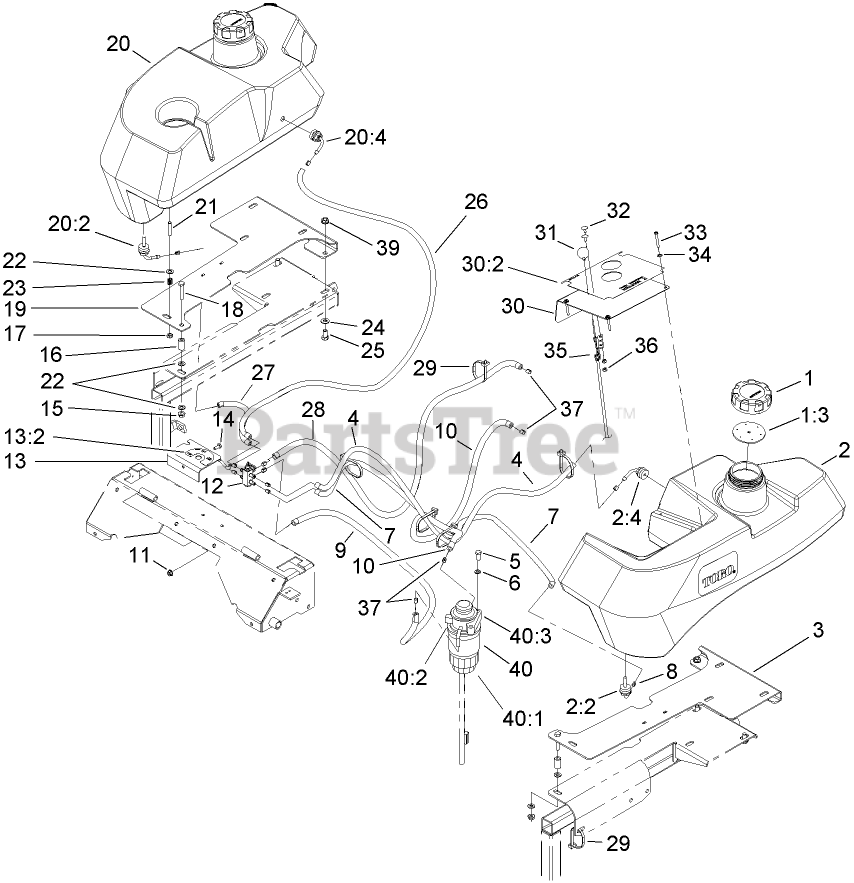

TANK AND FUEL LINE ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9884

CAP-DIESEL FUEL, YELLOW

$

$

Not available

1:3

Toro 104-7420

GASKET-VENTED

$33.99

$

Usually ships in 3-6 days

0

2

Toro 106-9978

LH Fuel Tank ASM

$

$

Not available

2:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

2:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$39.99

$

In Stock, only 1 left!

0

3

Toro 107-7672-03

BRACKET-FUEL TANK, LH

$111.99

$

Usually ships in 3-6 days

0

4

Toro 107-7686

HOSE-FUEL
(Superseded to 109-0273)

$21.99

$

Usually ships in 3-6 days

0

5

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

6

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

7

Toro 107-7742

HOSE-FUEL
(Superseded to 109-0289)

$34.99

$

Usually ships in 3-6 days

0

8

Toro 1-643293

CLAMP-HOSE, FUEL

$6.49

$

In Stock, Qty 6

0

9

Toro 107-7687

HOSE-FUEL
(Superseded to 110-4114)

$34.99

$

Usually ships in 3-6 days

0

10

Toro 103-1693

HOSE-FUEL
(Superseded to 110-4172)

$38.99

$

Usually ships in 3-6 days

0

11

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

12

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$217.99

$

In Stock, only 1 left!

0

13

Toro 107-9878

BRACKET-VALVE, FUEL

$116.99

$

Usually ships in 3-6 days

0

13:2

Toro 107-2114

DECAL-VALVE, FUEL

$30.99

$

Usually ships in 3-6 days

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

16

Toro 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

18

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

19

Toro 107-7671-03

BRACKET-FUEL TANK, RH

$111.99

$

Usually ships in 3-6 days

0

20

Toro 106-9977

RH Fuel Tank ASM
(Superseded to 110-0440)

$

$

Not available

20:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

20:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$39.99

$

In Stock, only 1 left!

0

21

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

26

Toro 99-3185

HOSE-FUEL
(Superseded to 110-5701)

$17.99

$

Usually ships in 3-6 days

0

27

Toro 107-7684

HOSE-FUEL
(Superseded to 109-0294)

$6.49

$

In Stock, only 1 left!

0

28

Toro 107-7741

HOSE-FUEL
(Superseded to 110-4100)

$28.99

$

Usually ships in 3-6 days

0

29

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

30

Toro 107-7703

PANEL-CONTROL
(Superseded to 110-5734)

$

$

Not available

30:2

Toro 107-7701

DECAL-PANEL, CONTROL

$

$

Not available

31

Toro 1-513592

KNOB-BALL

$6.49

$

In Stock, Qty 10

0

32

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

33

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

34

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

35

Toro 103-1450

CABLE-THROTTLE

$66.99

$

In Stock, only 1 left!

0

36

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

In Stock, only 3 left!

0

39

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

40

Toro 100-3191

SEPARATOR-FUEL

$436.99

$

Usually ships in 3-6 days

0

40:1

Toro 100-3192

ELEMENT-FILTER, FUEL

$112.99

$

Usually ships in 3-6 days

0

40:2

Toro 100-6409

SENSOR-FILTER, FUEL

$167.99

$

Usually ships in 3-6 days

0

40:3

Toro 100-6408

COVER-FILTER

$243.99

$

Usually ships in 3-6 days

0
