74269 (Z 597-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) DECK ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

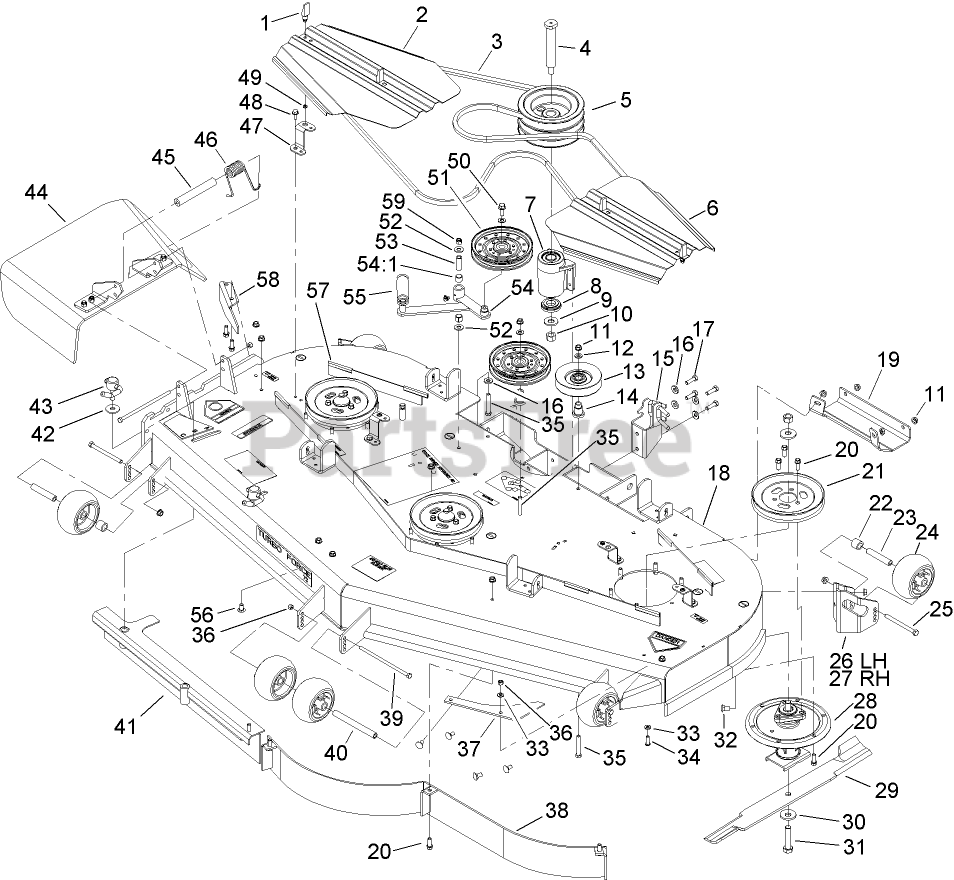

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 74-5950

LATCH-SWELL

$23.99

$

In Stock, Qty 10

0

2

Toro 106-3275-01

Cover-Belt

$192.99

$

Usually ships in 3-6 days

0

3

Toro 107-7723

BELT-V

$128.99

$

In Stock, only 1 left!

0

4

Toro 1-643393

JACKSHAFT

$33.99

$

In Stock, only 1 left!

0

5

Toro 103-5381

SHEAVE-JACKSHAFT

$668.99

$

Usually ships in 3-6 days

0

6

Toro 105-8786-01

Cover-Belt

$152.99

$

In Stock, only 3 left!

0

7

Toro 103-2544

JACKSHAFT ASM
(Superseded to 114-0250)

$343.99

$

Usually ships in 3-6 days

0

8

Toro 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 2 left!

0

9

Toro 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 9

0

10

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 11

0

14

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 3 left!

0

15

Toro 103-3445-01

GUARD-JACKSHAFT

$

$

Not available

16

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

17

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Toro 107-7677

DECK ASM

$

$

Not available

19

Toro 106-3279-01

Plate-Skid

$103.99

$

Usually ships in 3-6 days

0

20

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

21

Toro 107-7678

PULLEY

$75.99

$

Usually ships in 3-6 days

0

22

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

23

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

24

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

25

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

26

Toro 106-7354-01

MOUNT-WHEEL, LH

$107.99

$

In Stock, only 1 left!

0

27

Toro 106-7355-01

MOUNT-WHEEL, RH

$107.99

$

Usually ships in 3-6 days

0

28

Toro 106-3217

Spindle ASM
(Superseded to 119-8599)

$615.99

$

In Stock, only 4 left!

0

29

Toro 105-7784

Blade-Rotary, 24.5 High Flow
(Superseded to 105-7784-03)

$42.99

$

In Stock, Qty 20+

0

30

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 20+

0

31

Toro 103-0862

Screw-Cap

$5.99

$

In Stock, Qty 20+

0

32

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

33

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

34

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

35

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 107-3138

PLATE-TURBO

$52.99

$

Usually ships in 3-6 days

0

38

$177.99

$

Usually ships in 3-6 days

0

39

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 13

0

40

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

41

$297.99

$

Usually ships in 3-6 days

0

42

Toro 105-7697

WASHER-PLASTIC

$3.49

$

Usually ships in 3-6 days

0

43

Toro 106-3242

Lever ASM
(Superseded to 107-1664)

$75.99

$

In Stock, only 2 left!

0

44

Toro 106-3249

Rubber Deflector ASM
(Superseded to 108-2792)

$227.99

$

In Stock, Qty 6

0

45

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 5

0

46

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

47

Toro 105-8787-01

Bracket-Cover

$33.99

$

Usually ships in 3-6 days

0

48

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

49

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

50

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

51

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 20+

0

52

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

53

Toro 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

54

Toro 107-9868

IDLER ARM ASM

$138.99

$

In Stock, only 1 left!

0

54:1

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

55

Toro 105-6992

SPRING-EXTENSION

$31.99

$

Usually ships in 3-6 days

0

56

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

57

Toro 105-7699

STRIP-SEAL

$9.99

$

In Stock, Qty 20+

0

58

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

In Stock, only 1 left!

0

59
