74269 (Z 590-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311999999) (2011) MOTION CONTROL ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

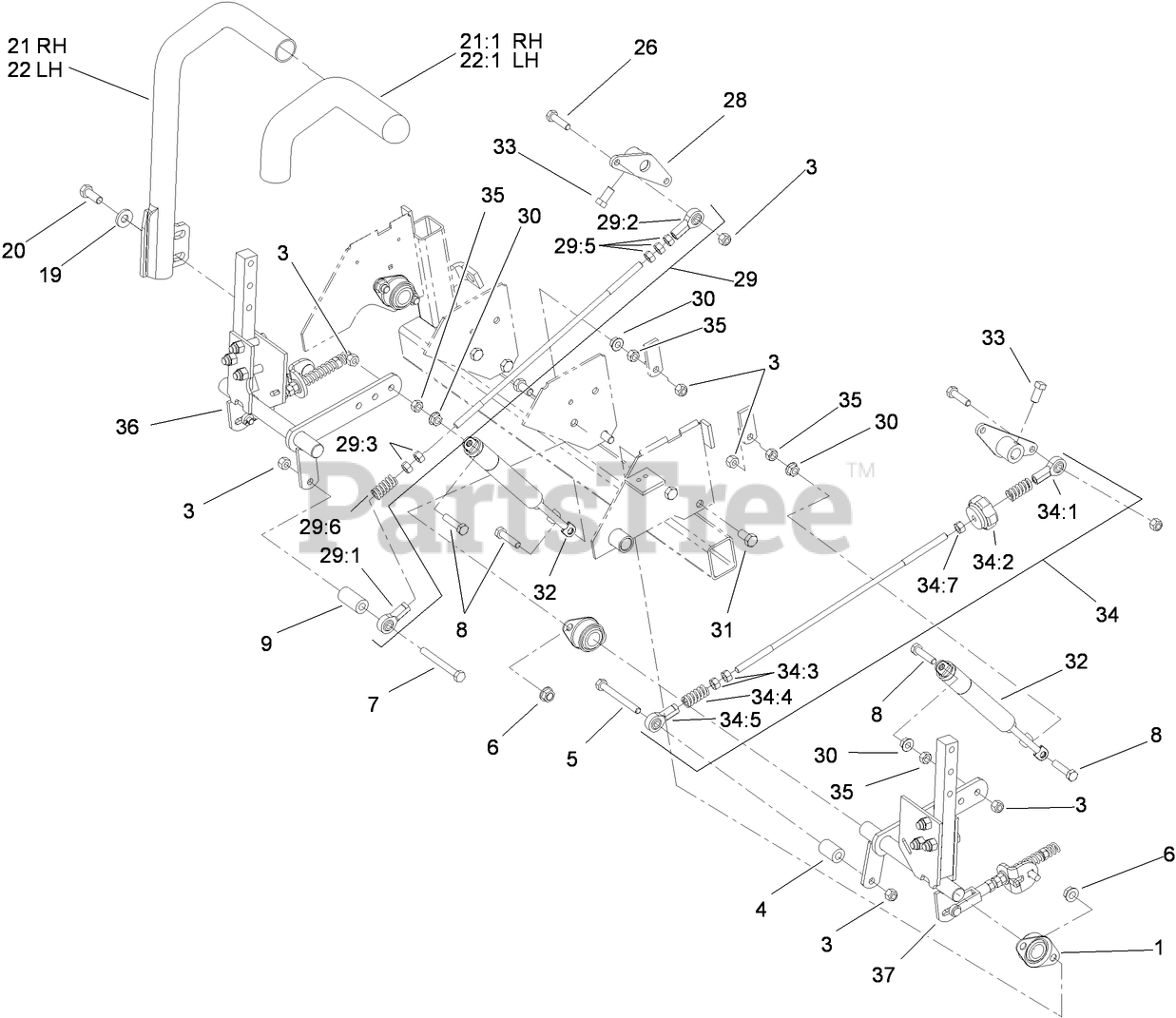

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 103-1361

SPACER-HYDRO CONTROL, LH

$7.99

$

Usually ships in 3-6 days

0

5

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

6

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

8

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 103-5192

SPACER-CONTROL, HYD

$34.99

$

Usually ships in 3-6 days

0

19

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

20

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 108-7237

RH LEVER ASM

$137.99

$

Usually ships in 3-6 days

0

21:1

Toro 106-9987

Grip-Control, Motion

$19.99

$

In Stock, only 4 left!

0

22

Toro 108-7238

LH LEVER ASM

$137.99

$

In Stock, only 1 left!

0

22:1

Toro 106-9987

Grip-Control, Motion

$19.99

$

In Stock, only 4 left!

0

26

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

28

Toro 103-0194-03

ARM-CONTROL, HYDRO

$67.99

$

Usually ships in 3-6 days

0

29

Toro 103-5190

RH HYD CONNECT LINK ASM

$83.99

$

Usually ships in 3-6 days

0

29:1

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

29:2

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

29:3

$2.99

$

In Stock, only 2 left!

0

29:5

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

29:6

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

30

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

32

Toro 109-2339

DAMPER-CONTROL, MOTION

$76.99

$

In Stock, only 3 left!

0

33

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

34

Toro 103-3062

TRACKING ROD ASM

$90.99

$

Usually ships in 3-6 days

0

34:1

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

34:2

Toro 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

34:3

$2.99

$

In Stock, only 2 left!

0

34:4

Toro 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

34:5

Toro 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

34:7

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

35

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

36

Toro 109-3978

RH MOTION CONTROL ASM

$168.99

$

Usually ships in 3-6 days

0

37

Toro 109-3979

LH MOTION CONTROL ASM

$

$

Not available
