74269 (Z 590-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) CASTER WHEEL AND Z STAND ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

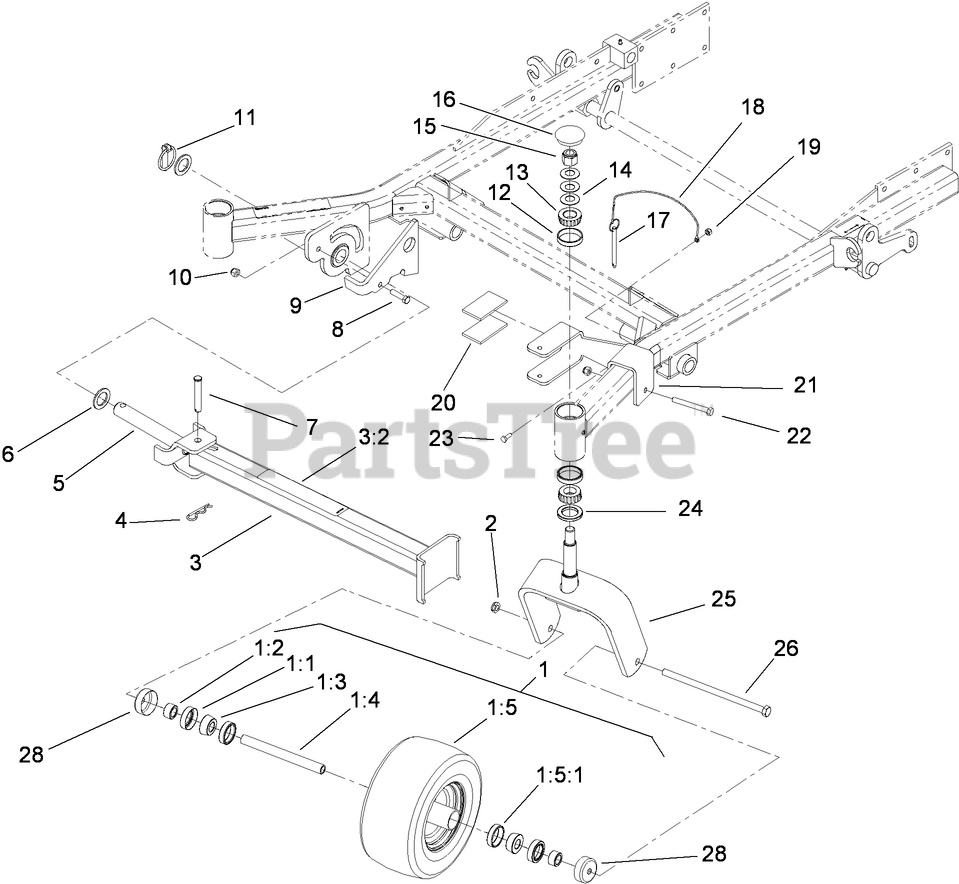

CASTER WHEEL AND Z STAND ASSEMBLY Parts Diagram

  • Title

1

Toro 109-9127

WHEEL & TIRE ASM

$341.99

$

In Stock, Qty 9

0

1:1

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 12

0

1:2

Toro 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

1:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, only 2 left!

0

1:4

Toro 103-5156

AXLE-CASTER
(Superseded to 126-5361)

$19.99

$

In Stock, only 2 left!

0

1:5

Toro 109-9124

WHEEL AND TIRE ASM
(Superseded to 109-9127)

$341.99

$

In Stock, Qty 9

0

1:5:1

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

2

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

3

Toro 107-1874

Leg ASM

$210.99

$

Usually ships in 3-6 days

0

3:2

Toro 106-7464

DECAL-Z STAND

$9.99

$

In Stock, only 2 left!

0

4

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

5

Toro 100-9692-01

PIN-PIVOT

$209.99

$

Usually ships in 3-6 days

0

6

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

7

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

8

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 100-9686-01

BRACKET-LATCH
(Superseded to 136-1657-01)

$59.99

$

Usually ships in 3-6 days

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

12

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 11

0

13

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 18

0

14

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

15

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 12

0

16

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

17

Toro 105-1647

PIN-HITCH, COTTERLESS

$20.99

$

Usually ships in 3-6 days

0

18

Toro 100-9385

LANYARD-NYLON

$6.49

$

Usually ships in 3-6 days

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 100-6547

Cushion-Rubber

$11.99

$

Usually ships in 3-6 days

0

21

Toro 108-4136-01

BRACKET-CRADLE

$128.99

$

Usually ships in 3-6 days

0

22

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

23

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

25

Toro 103-1474-01

CASTER-FORK
(Superseded to 116-8888)

$185.99

$

In Stock, Qty 10

0

26

Toro 325-39

Screw-HH

$18.99

$

In Stock, Qty 18

0

28

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0
