74269 TE (Z 597-D) - Toro 182cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) TANK AND FUEL LINE ASSEMBLY Parts Diagram

182cm Z Master Zero-Turn Mower, Side-Discharge Deck

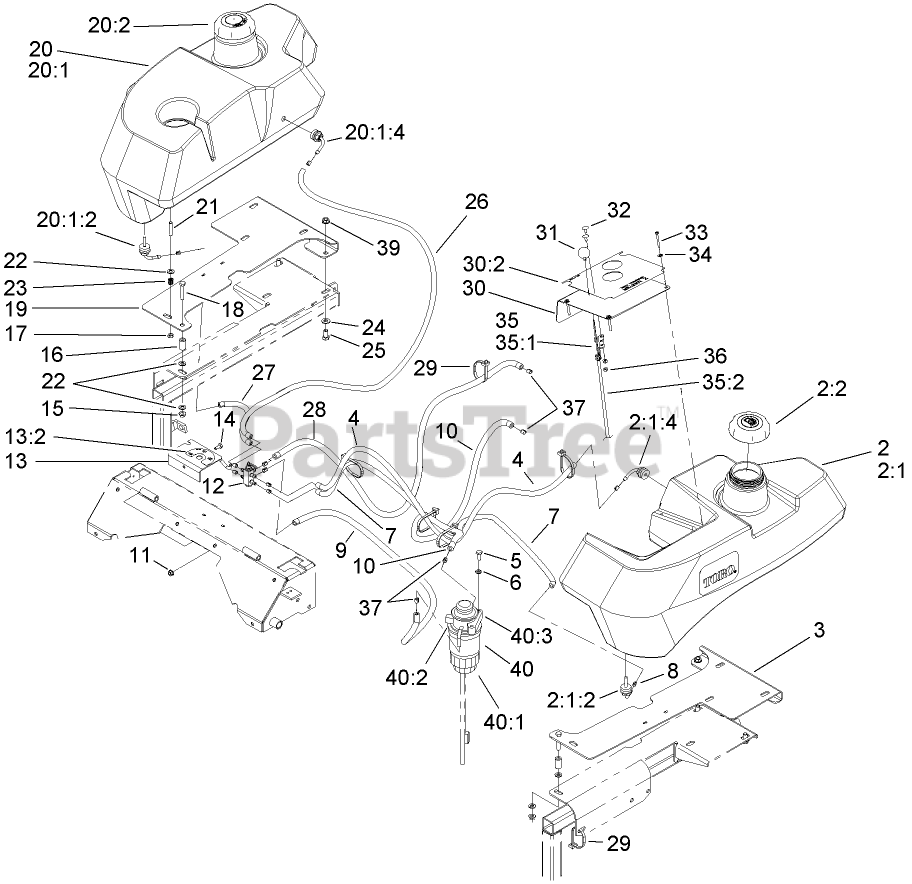

TANK AND FUEL LINE ASSEMBLY Parts Diagram

  • Title

2

Toro 110-4169

LH TANK ASM

$712.99

$

Usually ships in 3-6 days

0

2:1

TANK-FUEL, LH

Note: Not serviced separately

$

$

Not available

2:1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, Qty 6

0

2:1:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$41.99

$

In Stock, only 1 left!

0

2:2

Toro 110-0897

CAP-FUEL, DIESEL
(Superseded to 114-5062)

$34.99

$

In Stock, only 1 left!

0

3

Toro 107-7672-03

BRACKET-FUEL TANK, LH

$113.99

$

Usually ships in 3-6 days

0

4

Toro 109-0273

HOSE-FUEL

$22.99

$

Usually ships in 3-6 days

0

5

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

6

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

7

Toro 109-0289

HOSE-FUEL

$37.99

$

Usually ships in 3-6 days

0

8

Toro 1-643293

CLAMP-HOSE, FUEL

$6.49

$

In Stock, Qty 6

0

9

Toro 110-4114

HOSE-FUEL

$36.99

$

Usually ships in 3-6 days

0

10

Toro 110-4172

HOSE-FUEL

$38.99

$

Usually ships in 3-6 days

0

11

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$201.99

$

In Stock, only 4 left!

0

13

Toro 107-9878

BRACKET-VALVE, FUEL

$

$

Not available

13:2

Toro 107-2114

DECAL-VALVE, FUEL

$34.99

$

Usually ships in 3-6 days

0

14

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

16

Toro 94-7564

SPACER

$9.49

$

Usually ships in 3-6 days

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

18

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

19

Toro 107-7671-03

BRACKET-FUEL TANK, RH

$113.99

$

Usually ships in 3-6 days

0

20

Toro 110-4168

RH TANK ASM

$

$

Not available

20:1

TANK-FUEL, RH

Note: Not serviced separately

$

$

Not available

20:1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, Qty 6

0

20:1:4

Toro 103-2615

Fitting-Fuel, Bulkhead

$41.99

$

In Stock, only 1 left!

0

20:2

Toro 110-0897

CAP-FUEL, DIESEL
(Superseded to 114-5062)

$34.99

$

In Stock, only 1 left!

0

21

Toro 1-633023

STUD

$6.49

$

In Stock, only 2 left!

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 6

0

24

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

26

Toro 110-5701

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

27

Toro 109-0294

Hose-Fuel

$6.99

$

In Stock, only 1 left!

0

28

Toro 110-4100

HOSE-FUEL

$29.99

$

Usually ships in 3-6 days

0

29

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

30

Toro 110-5736

CONTROL PANEL ASM

$

$

Not available

30:2

Toro 110-5735

DECAL-PANEL, CONTROL

$

$

Not available

31

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

32

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

33

Toro 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

34

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

0

35

Toro 110-5729

THROTTLE CONTROL CABLE ASM

$98.99

$

In Stock, only 1 left!

0

35:1

Toro 112-2334

LEVER-THROTTLE

$82.99

$

Usually ships in 3-6 days

0

35:2

Toro 110-5730

CABLE-THROTTLE
(Superseded to 110-5729)

$98.99

$

In Stock, only 1 left!

0

36

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

In Stock, only 3 left!

0

39

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

40

Toro 100-3191

SEPARATOR-FUEL

$459.99

$

Usually ships in 3-6 days

0

40:1

Toro 100-3192

ELEMENT-FILTER, FUEL

$115.99

$

Usually ships in 3-6 days

0

40:2

Toro 100-6409

SENSOR-FILTER, FUEL

$188.99

$

Usually ships in 3-6 days

0

40:3

Toro 100-6408

COVER-FILTER

$256.99

$

Usually ships in 3-6 days

0
