74269 TE (Z 597-D) - Toro 182cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) STARTER MOTOR AND ALTERNATOR ASSEMBLY Parts Diagram

182cm Z Master Zero-Turn Mower, Side-Discharge Deck

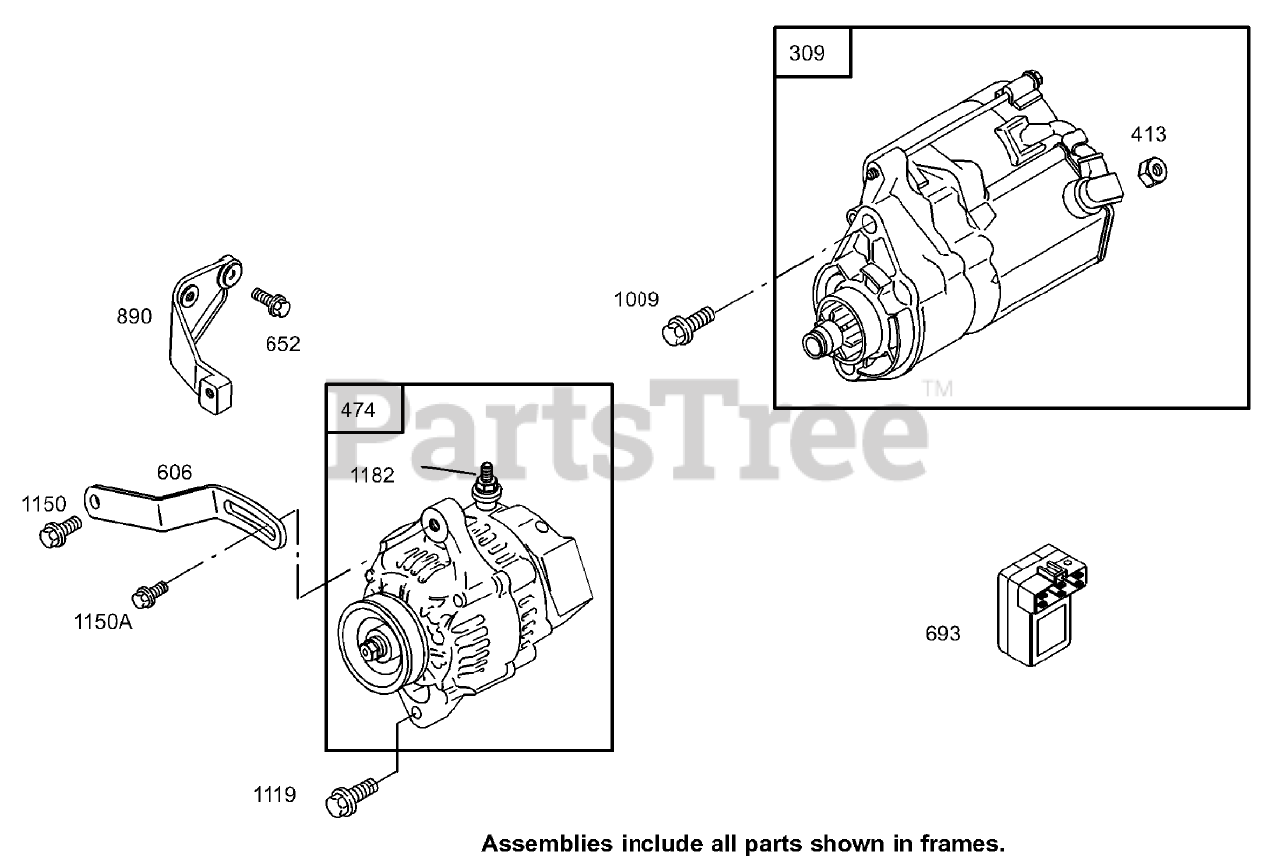

STARTER MOTOR AND ALTERNATOR ASSEMBLY Parts Diagram

  • Title
309

Toro 99-9207

MOTOR-STARTER
(Superseded to 110-2598)

$807.99

$

Usually ships in 3-6 days

0

413

Toro 99-9206

NUT-HEX, METRIC

$15.99

$

Usually ships in 3-6 days

0

474

Toro 99-9209

ALTERNATOR

$988.99

$

Usually ships in 3-6 days

0

606

Toro 106-1952

Strap-Adjusting
(Superseded to 99-9212)

$185.99

$

Usually ships in 3-6 days

0

652

Toro 99-9203

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

693

Toro 99-9666

MODULE
(Superseded to 115-2292)

$458.99

$

Usually ships in 3-6 days

0

890

Toro 99-9211

BRACKET-SUPPORT

$

$

Not available

1009

Toro 99-9201

SCREW-HEX

$16.99

$

Usually ships in 3-6 days

0

1119

Toro 99-9205

SCREW-HEX, METRIC

$24.99

$

Usually ships in 3-6 days

0

1150

Toro 99-9202

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

1182

Toro 99-9114

NUT-HEX, METRIC

$16.99

$

Usually ships in 3-6 days

0

1150A

Toro 107-9903

SCREW-HEX, METRIC

$12.99

$

Usually ships in 3-6 days

0
