74269 TE (Z 597-D) - Toro 182cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) HOOD ASSEMBLY Parts Diagram

182cm Z Master Zero-Turn Mower, Side-Discharge Deck

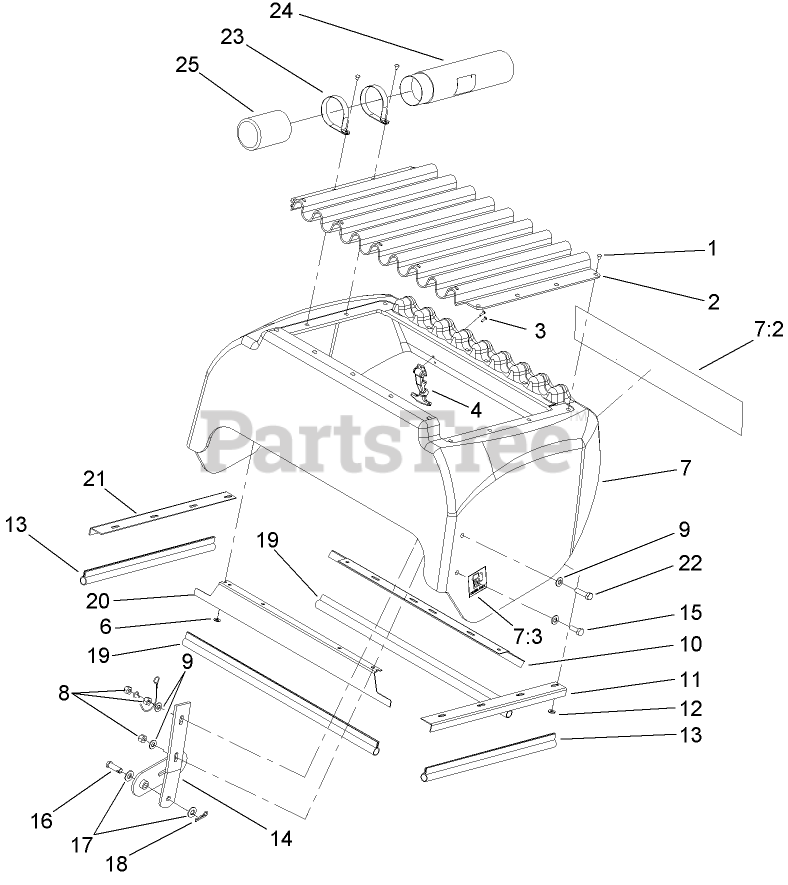

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 1-803072

RIVET

$2.99

$

Usually ships in 3-6 days

0

2

Toro 1-633864-03

SCREEN-RADIATOR

$290.99

$

Usually ships in 3-6 days

0

3

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

4

Toro 1-643188

LATCH-RUBBER

$23.99

$

In Stock, Qty 11

0

6

Toro 1-303435

WASHER-SPRING

$1.99

$

In Stock, Qty 20+

0

7

Toro 107-7679

HOOD ASM

$

$

Not available

7:2

Toro 107-7674

DECAL

$

$

Not available

7:3

Toro 103-1636

DECAL-FUEL

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 1-643108-03

ANGLE-RADIATOR, BOTTOM

$42.99

$

Usually ships in 3-6 days

0

11

Toro 1-643105-03

ANGLE-RADIATOR, LH

$31.99

$

Usually ships in 3-6 days

0

12

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

13

Toro 1-643186

SEAL-TRIM

$27.99

$

Usually ships in 3-6 days

0

14

Toro 1-633885-03

PLATE-HINGE, HOOD

$

$

Not available

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 13

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

19

Toro 1-643187

SEAL-TRIM

$23.99

$

Usually ships in 3-6 days

0

20

Toro 1-643107-03

ANGLE-RADIATOR, TOP

$51.99

$

Usually ships in 3-6 days

0

21

Toro 1-643106-03

ANGLE-RADIATOR, RH

$31.99

$

Usually ships in 3-6 days

0

22

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

23

Toro 107-1865

R-Clamp

$12.99

$

Usually ships in 3-6 days

0

24

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

25

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0
