74269 CP (Z 597-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) LH MOTION CONTROL ASSEMBLY NO. 109-3979 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

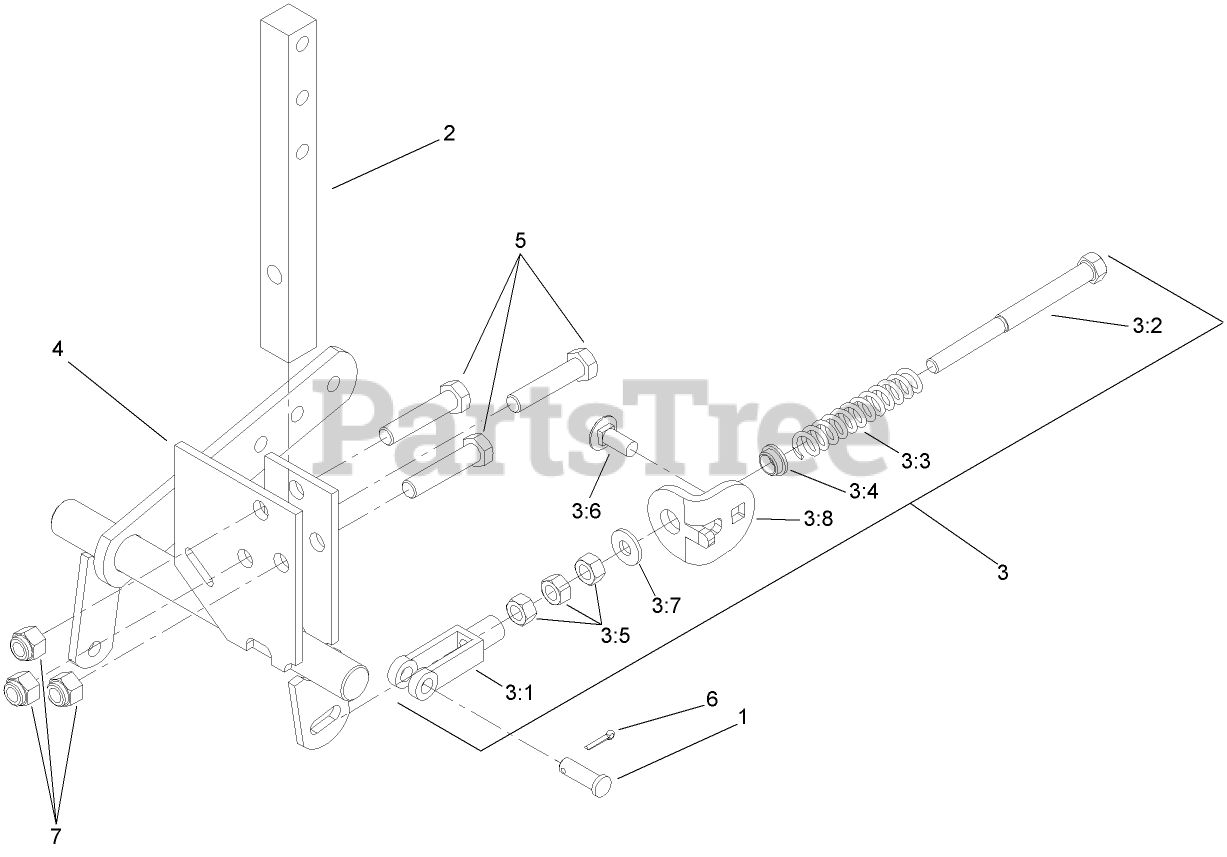

LH MOTION CONTROL ASSEMBLY NO. 109-3979 Parts Diagram

  • Title

1

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

2

Toro 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

3

Toro 109-3903

NEUTRAL RETURN ASM

$35.99

$

Usually ships in 3-6 days

0

3:1

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

3:2

Toro 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

3:3

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

3:4

Toro 109-3769

BUSHING-NYLON, FLANGED

$

$

Not available

3:5

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 13

0

3:6

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3:7

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3:8

Toro 109-3908

TAB-ADJUSTMENT

$6.49

$

Usually ships in 3-6 days

0

4

Toro 109-3983

CONTROL-MOTION, LH
(Superseded to 109-3979)

$

$

Not available

5

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
