74269 CP (Z 590-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) WHEEL AND BRAKE ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

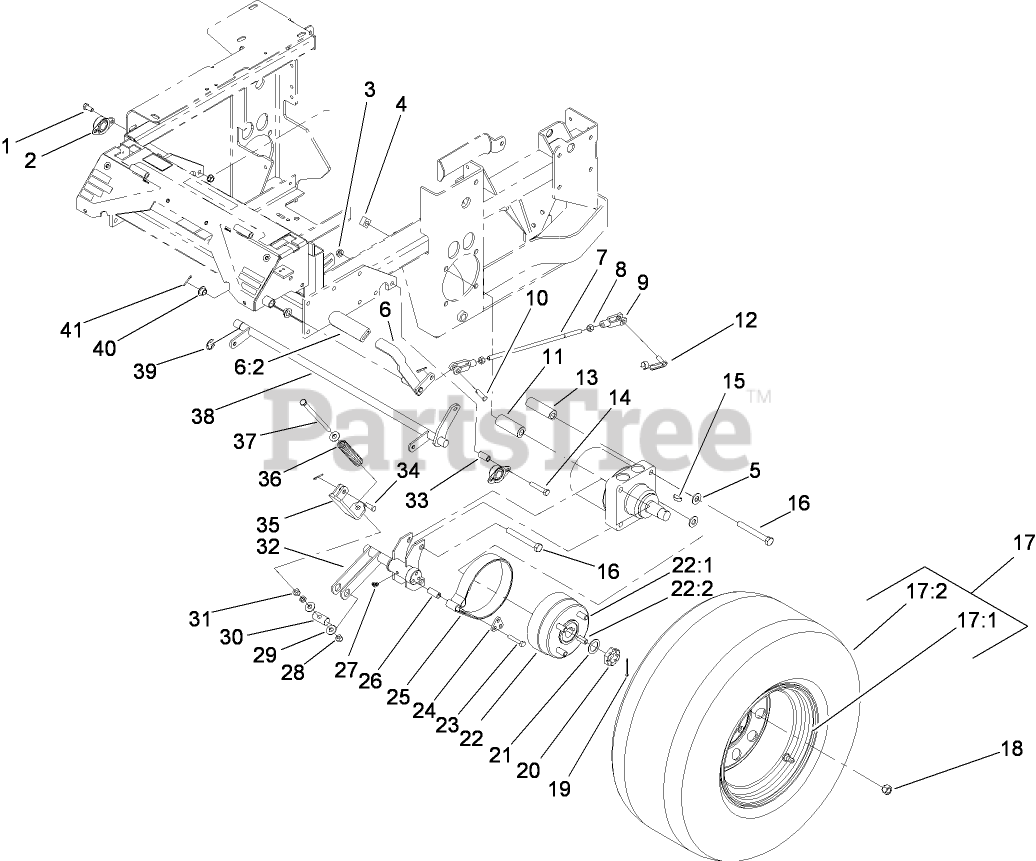

WHEEL AND BRAKE ASSEMBLY Parts Diagram

  • Title

1

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

2

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

3

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

Toro 109-5618

NUT-SQUARE, SPECIAL

$6.49

$

In Stock, Qty 17

0

5

Toro 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

6

Toro 103-0197

BRAKE LEVER AND GRIP ASM

$82.99

$

Usually ships in 3-6 days

0

6:2

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

7

Toro 103-1708

ROD-BRAKE

$7.99

$

Usually ships in 3-6 days

0

8

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

9

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

10

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

11

Toro 109-5011

SPACER-WHEEL, SHORT

$27.99

$

In Stock, Qty 6

0

12

Toro 103-2399

Pin-Spring, Clevis

$6.49

$

In Stock, Qty 14

0

13

Toro 109-5012

SPACER-WHEEL, LONG

$28.99

$

Usually ships in 3-6 days

0

14

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 12

0

16

Toro 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

17

Toro 109-3157

WHEEL AND TIRE ASM

$583.99

$

Usually ships in 3-6 days

0

17:1

Toro 109-3156

RIM

$243.99

$

In Stock, Qty 10

0

17:2

Toro 103-4963

TIRE

$369.99

$

Usually ships in 3-6 days

0

18

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

19

Toro 1-806800

PIN-COTTER

$2.99

$

In Stock, Qty 18

0

20

Toro 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

21

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

22

Toro 103-0590

WHEEL HUB ASM

$182.99

$

In Stock, Qty 8

0

22:1

Toro 103-0589

HUB-WHEEL

$173.99

$

In Stock, only 3 left!

0

22:2

Toro 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 11

0

23

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

24

Toro 103-0374

RETAINER-BAND, BRAKE

$5.49

$

In Stock, only 4 left!

0

25

Toro 103-0355

BAND-BRAKE

$58.99

$

In Stock, only 4 left!

0

26

Toro 103-0384

SPACER

$1.99

$

In Stock, Qty 6

0

27

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro 1-633144

PIN-TRUNION

$13.99

$

Usually ships in 3-6 days

0

31

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

32

Toro 103-0810-03

BRAKE-WIDE

$245.99

$

Usually ships in 3-6 days

0

33

Toro 103-0051

SPACER-RETAINER, BRAKE

$6.49

$

Usually ships in 3-6 days

0

34

Toro 1-808284

PIN-CLEVIS

$3.49

$

In Stock, Qty 20+

0

35

Toro 103-1117-03

LINKAGE-BRAKE, LOWER

$41.99

$

Usually ships in 3-6 days

0

36

Toro 1-633454

SPRING-BRAKE

$10.99

$

In Stock, only 1 left!

0

37

Toro 323-58

BOLT-TAP, HH

$5.49

$

Usually ships in 3-6 days

0

38

Toro 103-5243-03

SHAFT-BRAKE

$133.99

$

Usually ships in 3-6 days

0

39

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

40

Toro 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

41

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0
