74269 CP (Z 590-D) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) COOLING SYSTEM ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

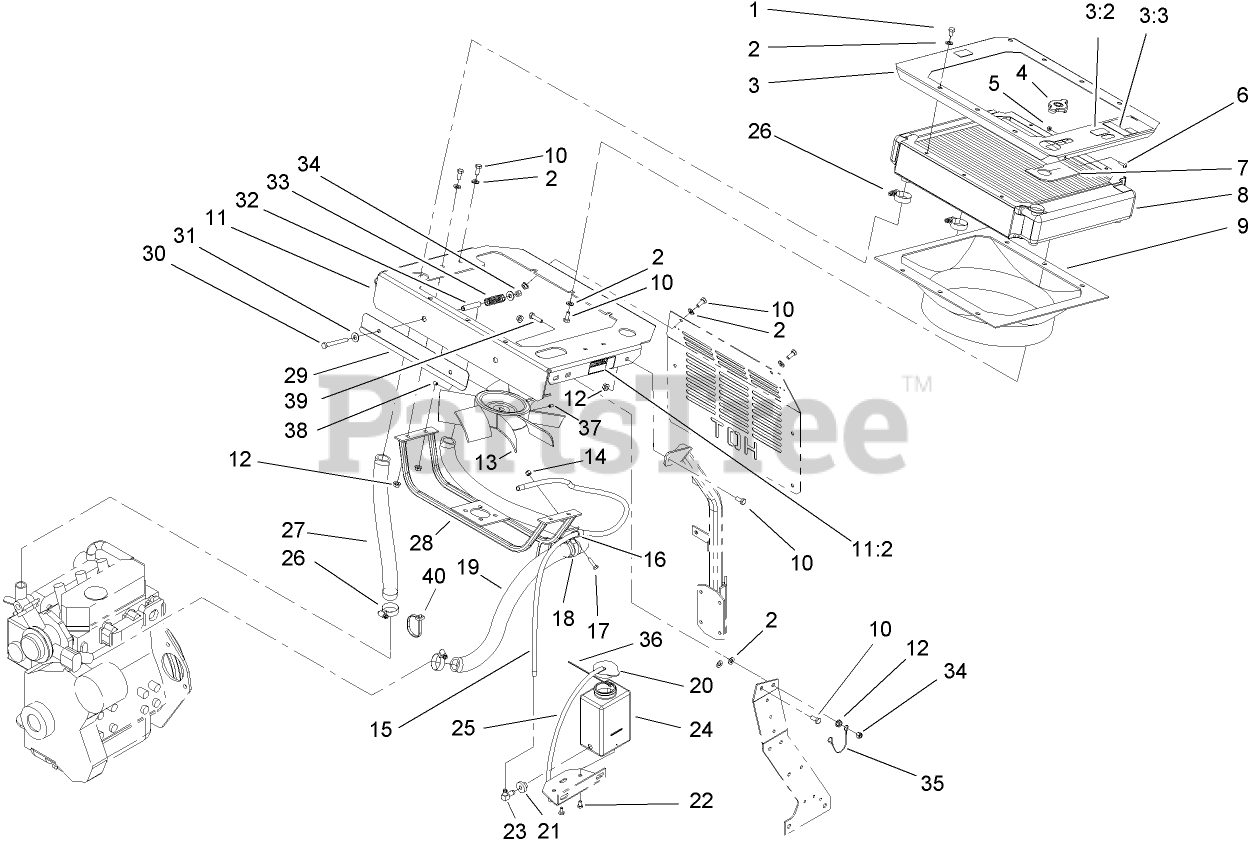

COOLING SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

2

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

3

Toro 107-7658

PLATE-TRIM, RADIATOR

$209.99

$

Usually ships in 3-6 days

0

3:2

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

3:3

Toro 104-2449

DECAL-COOLANT

$10.99

$

Usually ships in 3-6 days

0

4

Toro 1-643161

CAP-RADIATOR

$84.99

$

In Stock, only 3 left!

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

7

Toro 103-1352

SHIELD-FILL NECK, RADIATOR

$

$

Not available

8

Toro 107-9889

RADIATOR

$1874.99

$

Usually ships in 3-6 days

0

9

Toro 103-0898

SHROUD-COOLING, ENGINE

$249.99

$

Usually ships in 3-6 days

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 107-7717

FAN MOUNTING PLATE ASM

$137.99

$

Usually ships in 3-6 days

0

11:2

Toro 1-643253

DECAL-FAN, RADIATOR

$5.49

$

Usually ships in 3-6 days

0

12

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Toro 103-0892

FAN

$498.99

$

Usually ships in 3-6 days

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

15

Toro 109-2670

HOSE

$20.99

$

Usually ships in 3-6 days

0

16

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

17

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 103-0113

CLIP-LOOM

$

$

Not available

19

Toro 103-0922

HOSE-INLET, ENGINE

$150.99

$

Usually ships in 3-6 days

0

20

Toro 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 1 left!

0

21

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

22

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

23

Toro 1-643259

FITTING-ELBOW
(Superseded to 46-6550)

$40.99

$

Usually ships in 3-6 days

0

24

Toro 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

25

Toro 109-2669

HOSE

$11.99

$

In Stock, only 1 left!

0

26

Toro 1-633989

CLAMP-HOSE
(Superseded to 2412-34)

$2.49

$

In Stock, Qty 5

0

27

Toro 103-2505

HOSE-OUTLET, ENGINE

$54.99

$

Usually ships in 3-6 days

0

28

Toro 103-0086-03

MOUNT-MOTOR, FAN

$157.99

$

Usually ships in 3-6 days

0

29

Toro 103-4986

BRACKET-DEFLECTOR, AIR

$

$

Not available

30

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

31

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 103-5223

SPACER

$

$

Not available

33

Toro 1-513296

SPRING-INDICATOR, REVERSE

$7.99

$

Usually ships in 3-6 days

0

34

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Toro 107-9853

LANYARD

$22.99

$

Usually ships in 3-6 days

0

36

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

37

Toro 3245-44

SCREW-SET

$

$

Not available

38

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
