74269 (7000) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) Injection Pump Assembly Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

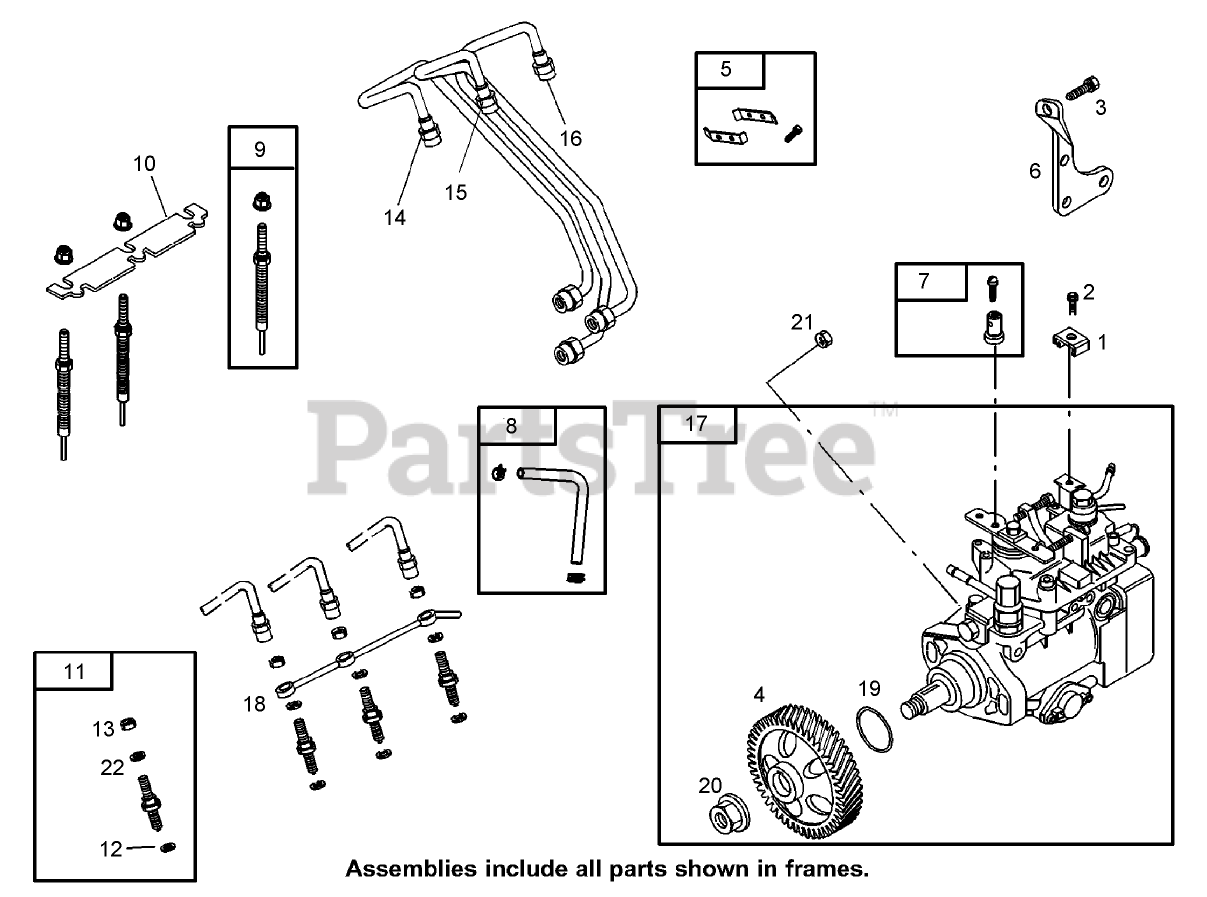

Injection Pump Assembly Parts Diagram

  • Title

1

Toro 99-9622

See Supercession: 99-9194
(Superseded to 99-9194)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 99-9056

SCREW-HEX

$47.99

$

Usually ships in 3-6 days

0

3

Toro 99-9616

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

4

Toro 99-9689

GEAR-DRIVE

$101.99

$

Usually ships in 3-6 days

0

5

Toro 99-9625

CLAMP

$

$

Not available

6

Toro 99-9626

BRACKET-SUPPORT

$

$

Not available

7

Toro 99-9628

CLAMP-SWIVEL

$21.99

$

Usually ships in 3-6 days

0

8

Toro 99-9629

HOSE / CLAMP ASM

$66.99

$

Usually ships in 3-6 days

0

9

Toro 99-9630

See Supercession: 114-4695
(Superseded to 114-4695)

$179.99

$

Usually ships in 3-6 days

0

10

Toro 99-9631

STRAP-PLUG, GLOW

$51.99

$

Usually ships in 3-6 days

0

11

Toro 99-9632

NOZZLE-INJECTOR

$709.99

$

Usually ships in 3-6 days

0

12

Toro 99-9633

SEAT-INJECTOR

$16.99

$

Usually ships in 3-6 days

0

13

Toro 105-9345

NUT

$

$

Not available

14

Toro 99-9690

PIPE-INJECTOR, NO. 1

$103.99

$

Usually ships in 3-6 days

0

15

Toro 99-9634

PIPE-INJECTOR, NO. 2

$128.99

$

Usually ships in 3-6 days

0

16

Toro 99-9635

PIPE-INJECTOR, NO. 3

$100.99

$

Usually ships in 3-6 days

0

17

Toro 105-9334

PUMP-INJECTION

$11003.99

$

Usually ships in 3-6 days

0

18

Toro 99-9637

PIPE-RETURN, FUEL

$96.99

$

Usually ships in 3-6 days

0

19

Toro 99-9618

O-RING

$

$

Not available

20

Toro 99-9620

NUT-HEX, METRIC

$

$

Not available

21

Toro 99-9619

NUT-HEX, METRIC

$

$

Not available

22

Toro 105-9343

SEAT-INJECTOR

$

$

Not available
