Toro 74268 (Z 597-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) ELECTRICAL COMPONENT ASSEMBLY Parts Lookup with Diagrams

1

Toro 103-4340

HARNESS-WIRE

$

Not available 

2

Toro 103-1349

CABLE-ENGINE NEGATIVE

$19.99

$

Usually ships in 3-6 days

3

Toro 103-1159

CABLE-BATTERY NEGATIVE

$28.99

$

Usually ships in 3-6 days

4

Toro 103-1160

CABLE-STARTER

$122.99

$

Usually ships in 3-6 days

5

Toro 103-4339

HARNESS-GAUGE

$

Not available 

6

Toro 106-5187

BATTERY-DRY

$223.99

$

Usually ships in 3-6 days

7

Toro 103-1227

HARNESS-WIRING, SEAT

$25.99

$

Usually ships in 3-6 days

8

Toro 1-303335

TIE-PLASTIC

(Superseded to 3290-378) 

$0.99

$

In Stock, Qty 7

9

Toro 1-643275

RELAY

$25.99

$

In Stock, Qty 20+

10

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 13

11

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

12

Toro 103-0205

ALARM-TONE, DUAL

$71.99

$

In Stock, only 2 left!

13

Toro 1-643178

CAP-INSULATOR, RED

$5.49

$

Usually ships in 3-6 days

14

Toro 103-1420

INSULATOR-STARTER

$6.99

$

Usually ships in 3-6 days

15

Toro 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

16

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

19

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

20

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

22

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

26

Toro 1-643037

GAUGE-VOLTMETER

$223.99

$

In Stock, only 1 left!

27

Toro 1-643021

GAUGE-TEMPERATURE

$150.99

$

In Stock, only 1 left!

28

Toro 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 8

29

Toro 1-633111

SWITCH

$22.99

$

In Stock, Qty 20+

30

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

31

Toro 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

32

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

33

Toro 1-323229

CLIP-LOOM

$3.49

$

Usually ships in 3-6 days

34

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

36

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

37

Toro 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

38

Toro 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

39

Toro 103-1368

FUSE-40 AMP

$5.49

$

Usually ships in 3-6 days

40

Toro 103-0949

SENDER-TEMPERATURE

$79.99

$

Usually ships in 3-6 days

41

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

42

Toro 103-1340

INSULATOR-TERMINAL, BATTERY

$5.49

$

Usually ships in 3-6 days

43

Toro 103-1312

Bolt-Holddown

$6.99

$

Usually ships in 3-6 days

44

Toro 103-1311-03

HOLDDOWN-BATTERY

$28.99

$

Usually ships in 3-6 days

45

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

46

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

47

Toro 103-5218

MODULE-DELAY, SEAT

$47.99

$

In Stock, Qty 7

48

Toro 1-643267

INDICATOR-LED, RED

$26.99

$

In Stock, Qty 5

49

Toro 103-1320

INDICATOR-LED, AMBER

$41.99

$

Usually ships in 3-6 days

50

Toro 1-513374

METER-HOUR

(Superseded to 120-2244) 

$74.99

$

In Stock, Qty 5

51

Toro 103-5221

SWITCH-PTO

$61.99

$

In Stock, Qty 20+

52

Toro 103-0206

SWITCH-STARTING, KEY

(Superseded to 109-4736) 

$44.99

$

In Stock, Qty 20+

53

Toro 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

54

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

55

Toro 107-9309

DECAL-INSTRUCTIONS, CHARGING

$22.99

$

Usually ships in 3-6 days

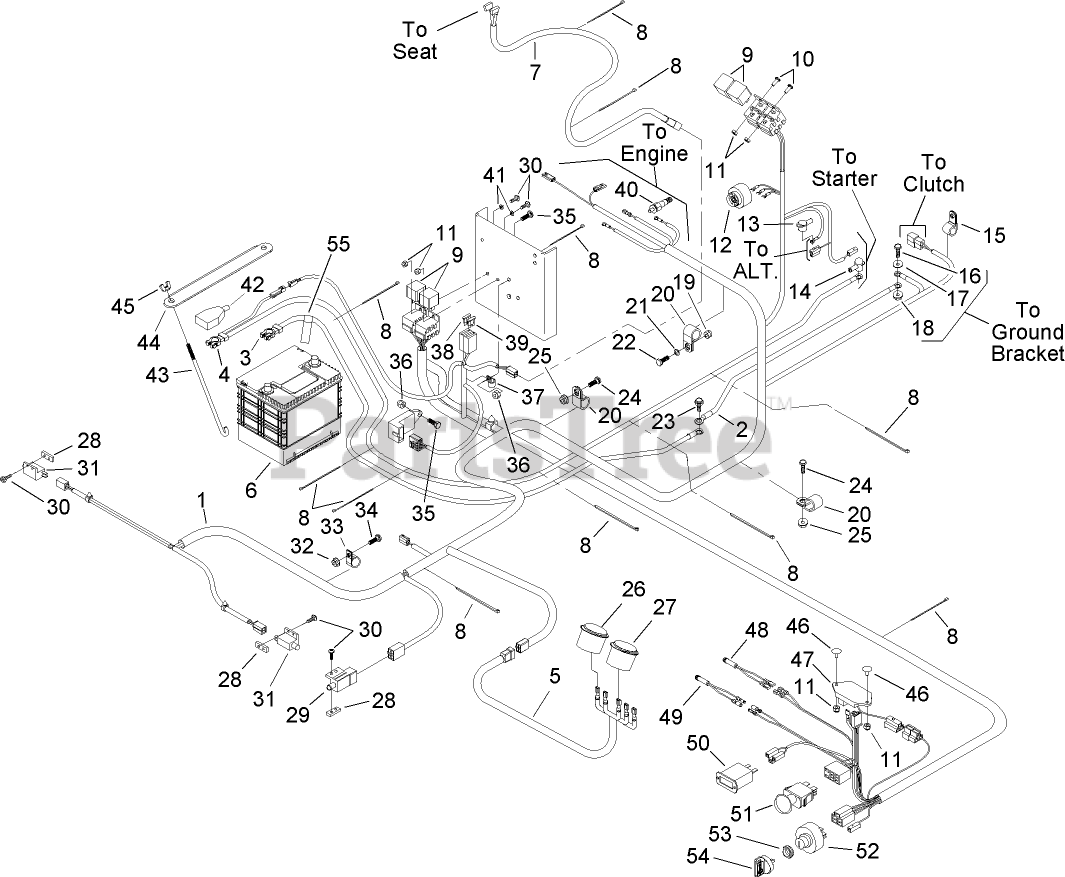

74268 (Z 597-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) ELECTRICAL COMPONENT ASSEMBLY Parts Diagram

ELECTRICAL COMPONENT ASSEMBLY Parts Diagram
