74268 (Z 597-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) MOTION CONTROL ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

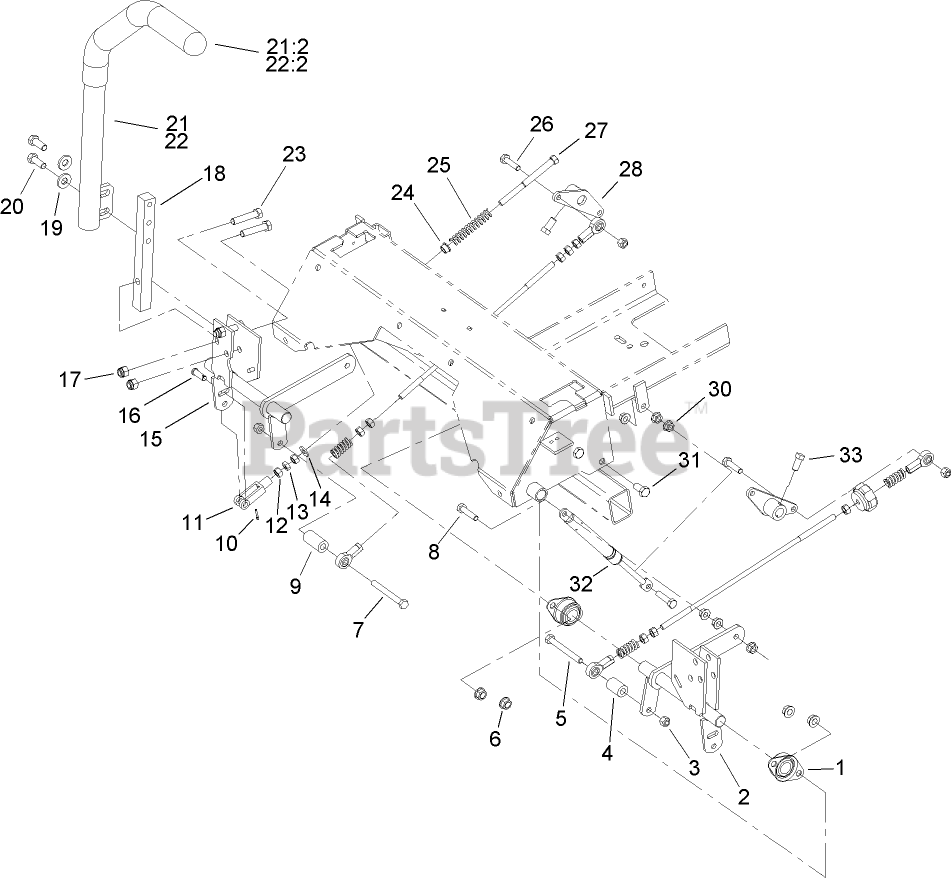

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

2

Toro 103-4787

CONTROL-MOTION, LH
(Superseded to 109-3979)

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 103-1361

SPACER-HYDRO CONTROL, LH

$7.99

$

Usually ships in 3-6 days

0

5

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

6

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

8

Toro 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 103-5192

SPACER-CONTROL, HYD

$34.99

$

Usually ships in 3-6 days

0

10

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

11

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

12

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 11

0

13

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

14

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 103-4788

CONTROL-MOTION, RH
(Superseded to 109-3980)

$142.99

$

Usually ships in 3-6 days

0

16

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

18

Toro 103-0407

ARM-SHAFT, CONTROL

$30.99

$

In Stock, only 2 left!

0

19

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

20

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 106-9983

RH Lever ASM
(Superseded to 108-7237)

$137.99

$

Usually ships in 3-6 days

0

21:2

Toro 106-9987

Grip-Control, Motion

$19.99

$

In Stock, only 4 left!

0

22

Toro 106-9982

LH Lever ASM
(Superseded to 108-7238)

$137.99

$

In Stock, only 1 left!

0

22:2

Toro 106-9987

Grip-Control, Motion

$19.99

$

In Stock, only 4 left!

0

23

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

25

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

26

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

27

Toro 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

28

Toro 103-0194-03

ARM-CONTROL, HYDRO

$67.99

$

Usually ships in 3-6 days

0

30

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

31

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

32

Toro 103-4079

DAMPER-CONTROL, MOTION

$76.99

$

In Stock, only 3 left!

0

33

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0
