74268 (Z 597-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) FRONT AND REAR ENGINE COVER ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

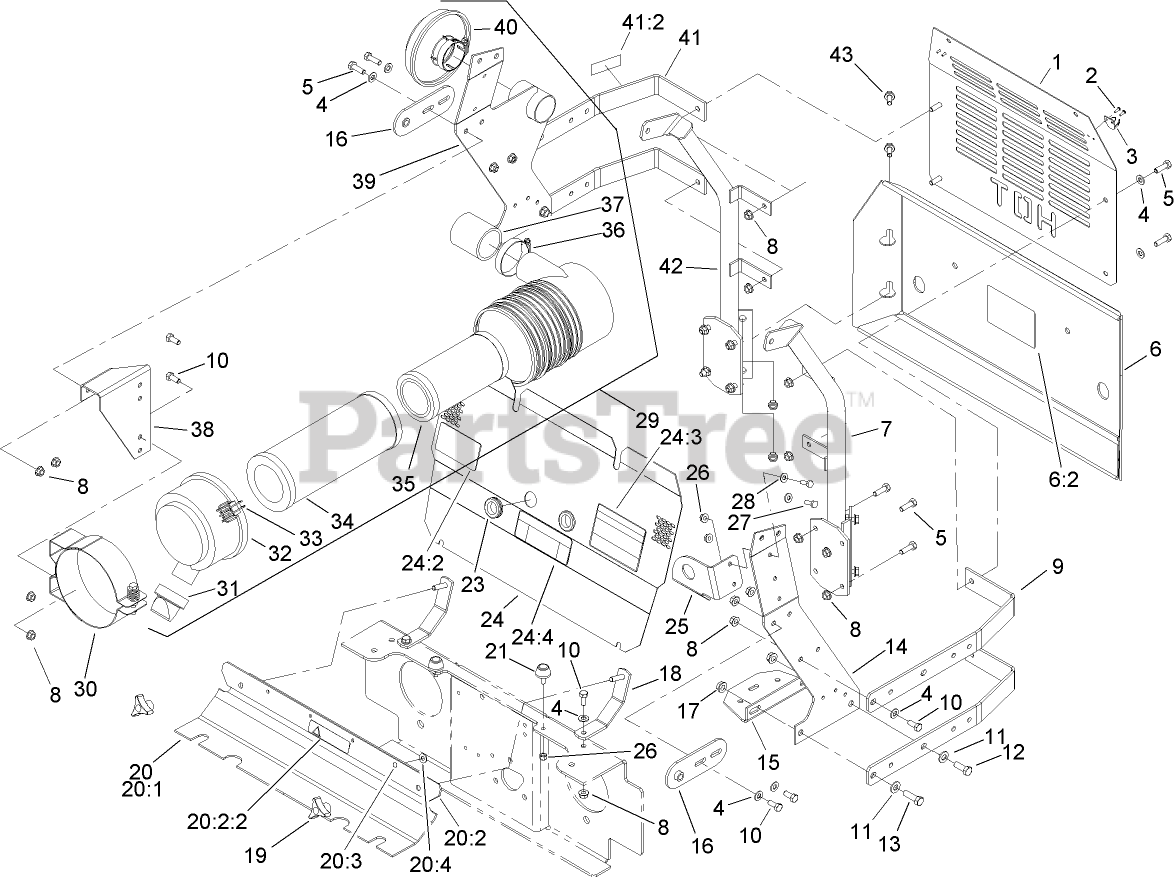

FRONT AND REAR ENGINE COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 103-4855-03

GUARD-MUFFLER

$80.99

$

Usually ships in 3-6 days

0

2

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

3

Toro 1-643189

KEEPER-LATCH, RUBBER
(Superseded to 249-40)

$11.99

$

Usually ships in 3-6 days

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 107-9865

REAR BUMPER ASM

$292.99

$

Usually ships in 3-6 days

0

6:2

Toro 107-9864

DECAL-BELT ROUTING, DECK DRIVE

$41.99

$

Usually ships in 3-6 days

0

7

Toro 103-5157-03

FRAME-UPPER, LH REAR

$

$

Not available

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 103-4906-03

BAR-MOUNT FRAME, RADIATOR

$

$

Not available

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 103-5169-03

MOUNT-SIDE, LH

$

$

Not available

15

Toro 103-2603-03

BRACKET-BOTTLE

$

$

Not available

16

Toro 1-632986-03

SHACKLE-HINGE

$

$

Not available

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 103-5163-03

MOUNT-BELT SHIELD, ENGINE

$

$

Not available

19

Toro 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

20

Toro 107-7709

ENGINE BELT SHIELD ASM

$104.99

$

Usually ships in 3-6 days

0

20:1

Toro 103-4987

SHIELD-ENGINE

$

$

Not available

20:2

Toro 107-7713

STRIP-SHIELD, BELT

$

$

Not available

20:2:2

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

20:3

Toro 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

20:4

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

23

Toro 100-3815

GROMMET-RUBBER

$9.99

$

In Stock, only 2 left!

0

24

Toro 107-7707

ENGINE ACCESS PANEL ASM

$290.99

$

Usually ships in 3-6 days

0

24:2

Toro 107-7705

DECAL-BELT ROUTING, PUMP

$31.99

$

Usually ships in 3-6 days

0

24:3

Toro 103-3276

DECAL-BUZZER, WARNING

$11.99

$

Usually ships in 3-6 days

0

24:4

Toro 103-5881

DECAL-DEVICES, ROTATING

$6.49

$

In Stock, Qty 10

0

25

Toro 103-4982-03

BRACKET-BUZZER

$

$

Not available

26

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

27

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 103-5178

FILTER-AIR

$319.99

$

In Stock, only 1 left!

0

30

Toro 103-1058

BRACKET-FILTER, AIR

$110.99

$

Usually ships in 3-6 days

0

31

Toro 87-9400

VALVE-VACUATOR

$12.99

$

In Stock, only 4 left!

0

32

Toro 103-1060

COVER-FILTER, AIR

$229.99

$

Usually ships in 3-6 days

0

33

Toro 1-643283

LATCH-CLEANER, AIR

$21.99

$

Usually ships in 3-6 days

0

34

Toro 103-1327

FILTER-AIR

$34.99

$

In Stock, Qty 5

0

35

Toro 103-1326

FILTER-AIR, SAFETY

$41.99

$

In Stock, only 2 left!

0

36

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

37

Toro 103-5198

HOSE-INTAKE

$21.99

$

Usually ships in 3-6 days

0

38

Toro 103-0953-03

MOUNT-CLEANER, AIR

$

$

Not available

39

Toro 103-5123-03

RH RADIATOR AND AC SUPPORT ASM

$

$

Not available

40

Toro 100-2436

HOOD-CLEANER, 2" AIR INTAKE

$69.99

$

Usually ships in 3-6 days

0

41

Toro 107-7715

BAR-RADIATOR

$

$

Not available

41:2

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

42

Toro 103-5158-03

FRAME-UPPER, RH REAR

$

$

Not available

43

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0
