74268 TE (Z 597-D) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) SEAT AND ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram
152cm Z Master Zero-Turn Mower, Side-Discharge Deck

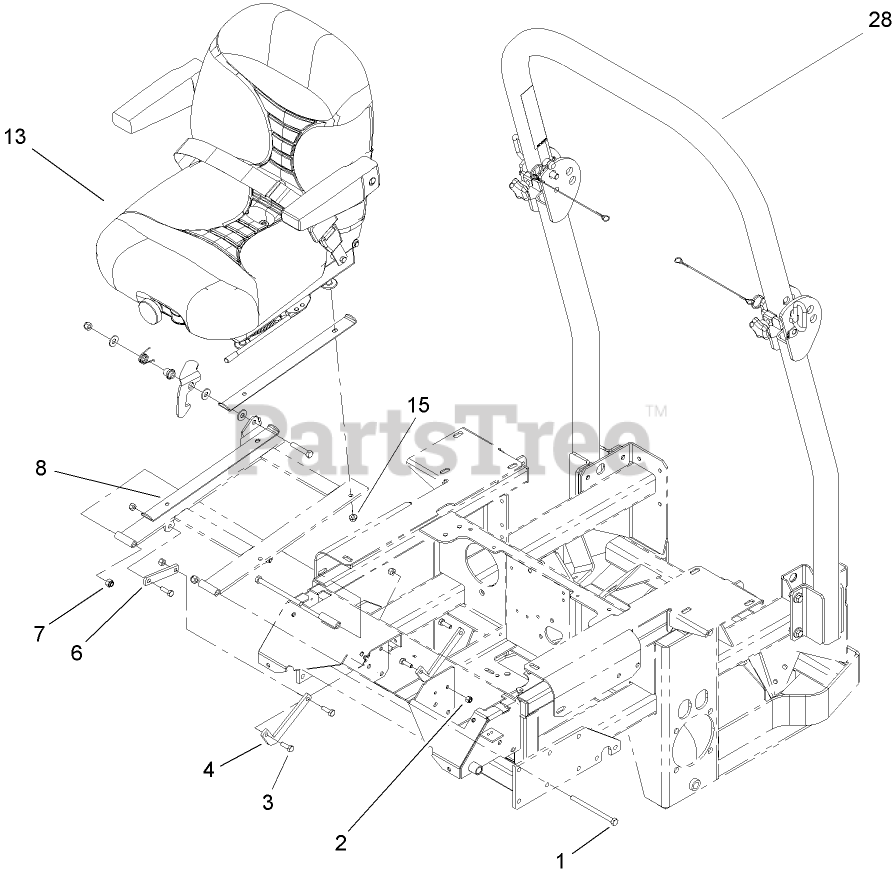

SEAT AND ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram
Toro 323-39
SCREW-HH
$11.99
$
In Stock, Qty 20+
Toro 3296-29
NUT-LOCK, NI
$2.49
$
In Stock, Qty 20+
Toro 322-5
SCREW-HH
$0.99
$
In Stock, Qty 20+
Toro 103-5181
LINK-SEAT STOP, LOWER
$
$
Not available
Toro 103-5161
LINK-STOP, SEAT
$22.99
$
Usually ships in 3-6 days
Toro 3296-39
NUT-LOCK, NI
$2.99
$
In Stock, Qty 8
Toro 1-633872-03
STOP-SEAT
$47.99
$
Usually ships in 3-6 days
$2368.99
$
Usually ships in 3-6 days
Toro 32128-20
NUT-HF
$1.49
$
In Stock, Qty 20+
Toro 106-7437
ROPS ASM
$1079.99
$
Usually ships in 3-6 days
