74268 TE (Z 597-D) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) INJECTION PUMP ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

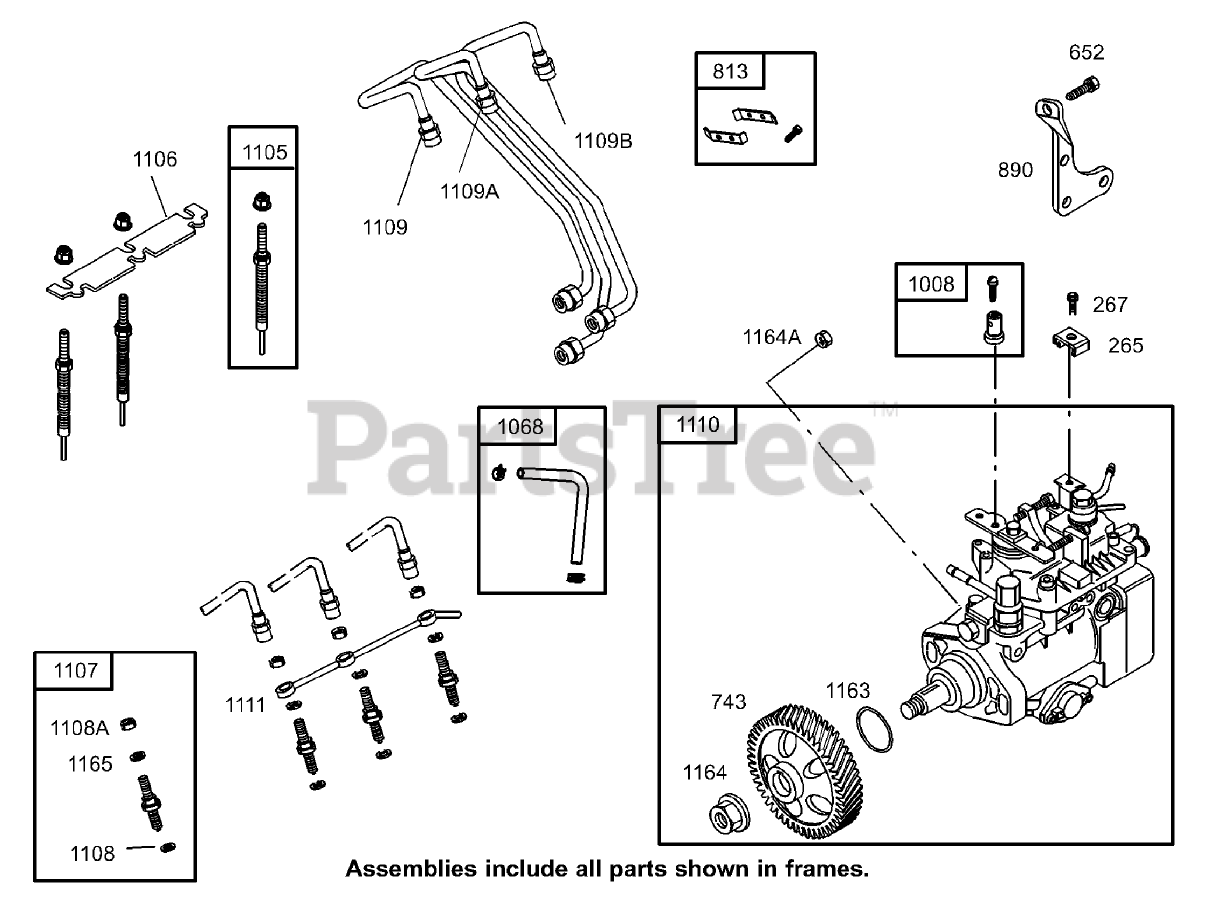

INJECTION PUMP ASSEMBLY Parts Diagram

  • Title

265

Toro 99-9622

Clamp-Casing
(Superseded to 99-9194)

$6.49

$

Usually ships in 3-6 days

0

267

Toro 99-9056

SCREW-HEX

$50.99

$

Usually ships in 3-6 days

0

652

Toro 99-9616

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

743

Toro 99-9689

GEAR-DRIVE

$106.99

$

Usually ships in 3-6 days

0

813

Toro 99-9625

CLAMP

$

$

Not available

890

Toro 99-9626

BRACKET-SUPPORT

$

$

Not available

1008

Toro 99-9628

CLAMP-SWIVEL

$22.99

$

Usually ships in 3-6 days

0

1068

Toro 99-9629

HOSE / CLAMP ASM

$69.99

$

Usually ships in 3-6 days

0

1105

Toro 99-9630

PLUG-GLOW
(Superseded to 114-4695)

$188.99

$

Usually ships in 3-6 days

0

1106

Toro 99-9631

STRAP-PLUG, GLOW

$54.99

$

Usually ships in 3-6 days

0

1107

Toro 99-9632

NOZZLE-INJECTOR

$744.99

$

Usually ships in 3-6 days

0

1108

Toro 99-9633

SEAT-INJECTOR

$17.99

$

Usually ships in 3-6 days

0

1109

Toro 99-9690

PIPE-INJECTOR, NO. 1

$108.99

$

Usually ships in 3-6 days

0

1110

Toro 105-9334

PUMP-INJECTION

$11553.99

$

Usually ships in 3-6 days

0

1111

Toro 99-9637

PIPE-RETURN, FUEL

$100.99

$

Usually ships in 3-6 days

0

1163

Toro 99-9618

O-RING

$

$

Not available

1164

Toro 99-9620

NUT-HEX, METRIC

$

$

Not available

1165

Toro 105-9343

Seat-Injector

$

$

Not available

1108A

Toro 105-9345

Nut

$

$

Not available

1109A

Toro 99-9634

PIPE-INJECTOR, NO. 2

$134.99

$

Usually ships in 3-6 days

0

1109B

Toro 99-9635

PIPE-INJECTOR, NO. 3

$105.99

$

Usually ships in 3-6 days

0

1164A

Toro 99-9619

NUT-HEX, METRIC

$

$

Not available
