74268 TE (Z 597-D) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 250000001 - 250999999) (2005) CYLINDER ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

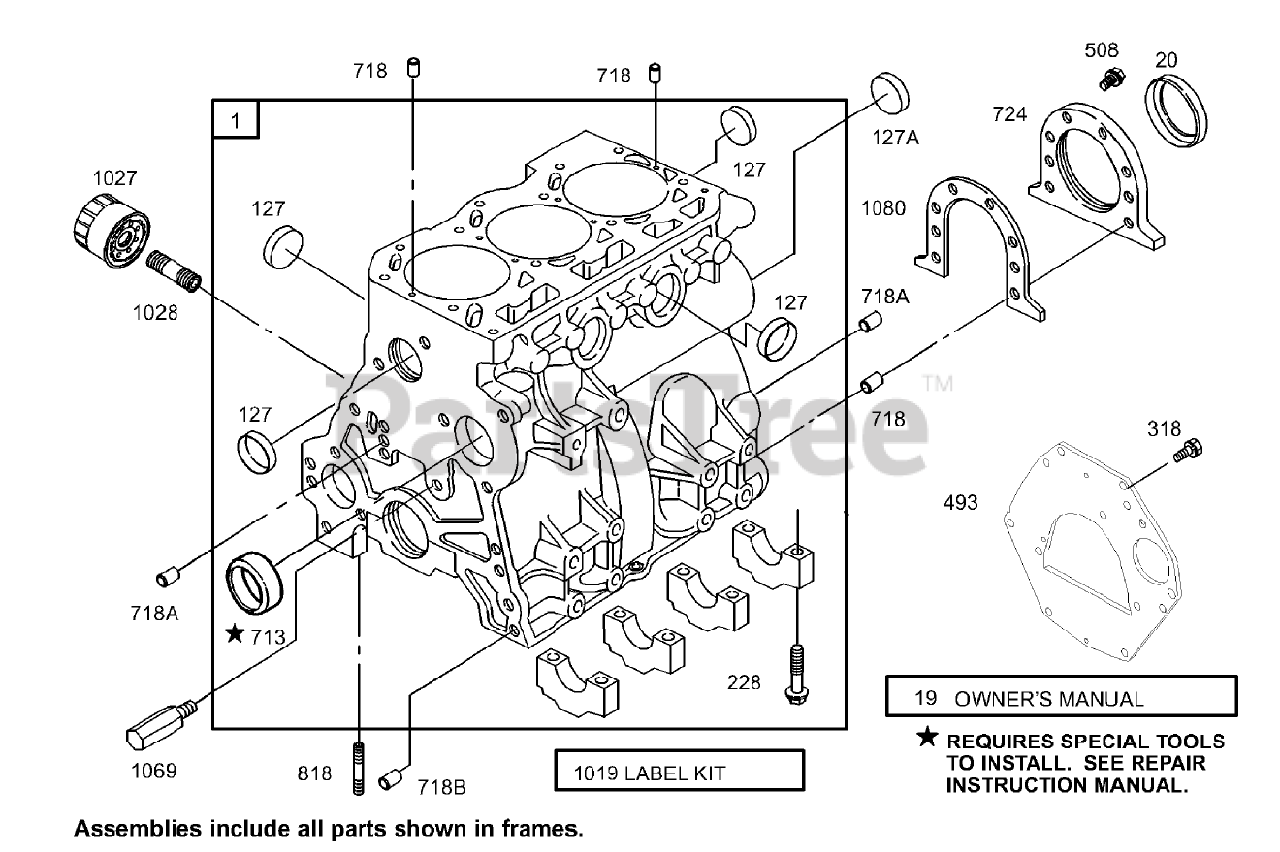

CYLINDER ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9891

CYLINDER ASM

$

$

Not available

19

Toro 103-1384

MANUAL-ENGINE

$

$

Currently unavailable

20

Toro 99-9003

SEAL-OIL

$138.99

$

Usually ships in 3-6 days

0

127

Toro 99-9008

PLUG-WELCH

$11.99

$

Usually ships in 3-6 days

0

228

Toro 99-9006

SCREW-HEX

$12.99

$

Usually ships in 3-6 days

0

318

Toro 99-9005

SCREW-HEX

$18.99

$

Usually ships in 3-6 days

0

493

Toro 107-9893

PLATE-END, REAR

$

$

Not available

508

Toro 99-9004

SCREW-HEX

$

$

Not available

713

Toro 99-9002

BUSHING

$201.99

$

Usually ships in 3-6 days

0

718

Toro 99-9012

PIN-LOCATING

$20.99

$

Usually ships in 3-6 days

0

724

Toro 99-9022

RETAINER-SEAL

$

$

Not available

818

Toro 99-9007

STUD-METRIC

$7.49

$

Usually ships in 3-6 days

0

1019

Toro 107-9894

KIT-LABEL

$

$

Not available

1027

Toro 99-9017

FILTER-OIL
(Superseded to 108-3842)

$12.99

$

In Stock, Qty 9

0

1028

Toro 105-9337

ADAPTER-FILTER, OIL

$178.99

$

Usually ships in 3-6 days

0

1069

Toro 99-9020

NOZZLE-OIL

$

$

Not available

1080

Toro 99-9021

GASKET-RETAINER

$18.99

$

Usually ships in 3-6 days

0

127A

Toro 107-9892

PLUG-WELCH (CAM)

$117.99

$

Usually ships in 3-6 days

0

718A

Toro 99-9013

PIN-LOCATING

$21.99

$

Usually ships in 3-6 days

0

718B

Toro 99-9014

PIN-LOCATING

$20.99

$

Usually ships in 3-6 days

0
