74268 TE (Z 597-D) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 240000001 - 240999999) (2004) SEAT AND ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

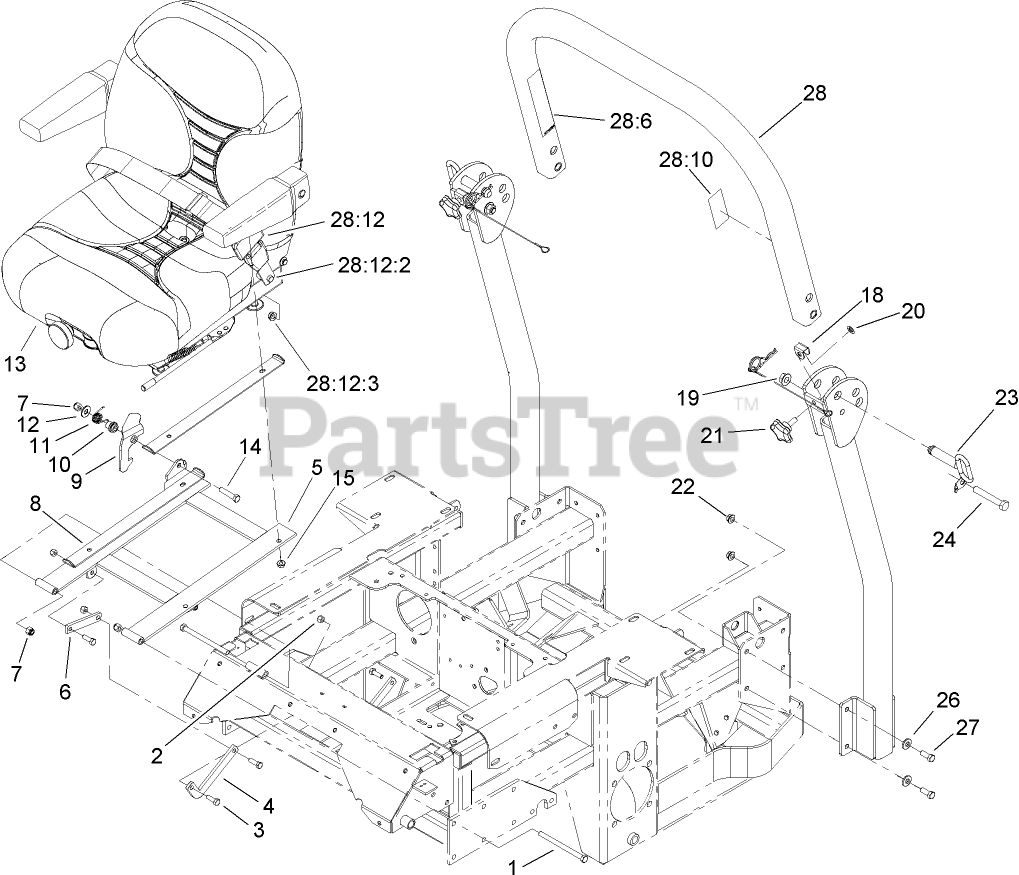

SEAT AND ROLL-OVER-PROTECTION-SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 103-5181

LINK-SEAT STOP, LOWER

$

$

Not available

5

Toro 103-5536-03

FRAME-SEAT
(Superseded to 103-7967-03)

$

$

Not available

6

Toro 103-5161

LINK-STOP, SEAT

$22.99

$

Usually ships in 3-6 days

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 1-633872-03

STOP-SEAT

$47.99

$

Usually ships in 3-6 days

0

9

Toro 103-5520

CATCH-LATCH, SINGLE

$170.99

$

Usually ships in 3-6 days

0

10

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

11

Toro 103-5519

SPRING-TORSION, LATCH

$8.49

$

Usually ships in 3-6 days

0

12

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro 106-9988

SEAT-SUSPENSION
(Superseded to 110-0838)

$2368.99

$

Usually ships in 3-6 days

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

$5.49

$

In Stock, Qty 6

0

19

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

20

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

21

$8.49

$

In Stock, Qty 5

0

22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Toro 103-4553

PIN-FOLD, ROPS

$79.99

$

In Stock, only 2 left!

0

24

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

26

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

27

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 106-7437

ROPS ASM

$1079.99

$

Usually ships in 3-6 days

0

28:6

Toro 107-3069

DECAL-WARNING

$22.99

$

Usually ships in 3-6 days

0

28:10

Toro 107-2101

DECAL-ROPS

$

$

Not available

28:12

Toro 103-4469

SEATBELT KIT

$167.99

$

Usually ships in 3-6 days

0

28:12:2

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

28:12:3

Toro 3296-38

NUT-LOCK, NI

$2.99

$

In Stock, only 4 left!

0
