74268 CP (Z 597-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) HOOD ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

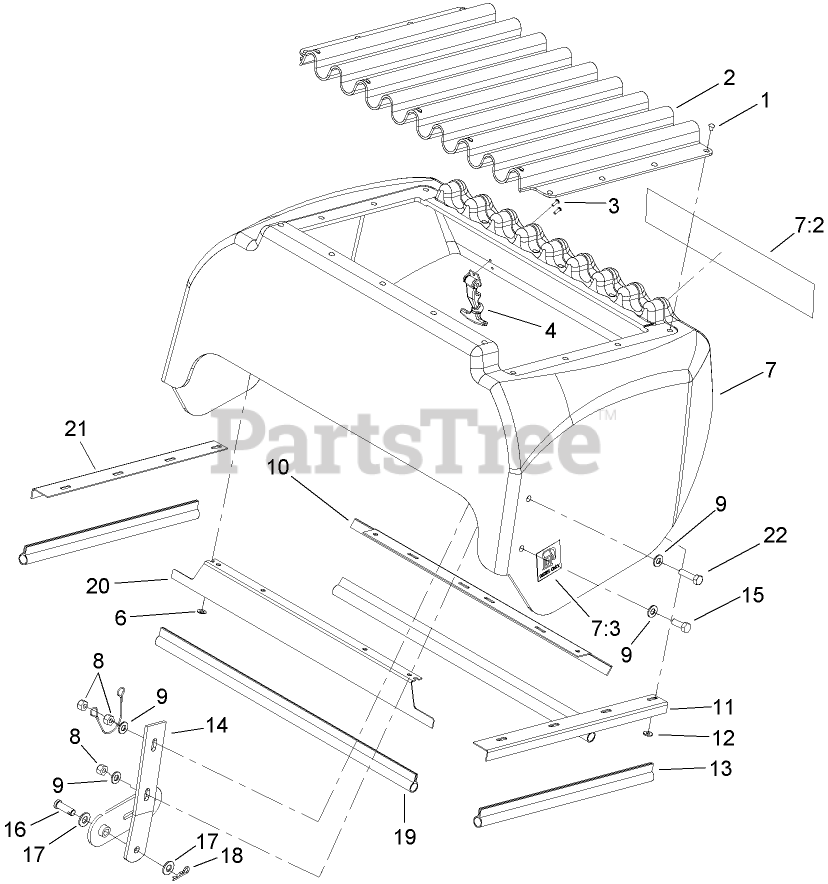

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 1-803072

RIVET

$2.99

$

Usually ships in 3-6 days

0

2

Toro 1-633864-03

SCREEN-RADIATOR

$274.99

$

Usually ships in 3-6 days

0

3

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

4

Toro 1-643188

LATCH-RUBBER

$22.99

$

In Stock, only 2 left!

0

6

Toro 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

7

Toro 107-7679

HOOD ASM

$

$

Not available

7:2

Toro 107-7674

DECAL

$

$

Not available

7:3

Toro 103-1636

DECAL-FUEL

$

$

Not available

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 1-643108-03

ANGLE-RADIATOR, BOTTOM

$39.99

$

Usually ships in 3-6 days

0

11

Toro 1-643105-03

ANGLE-RADIATOR, LH

$29.99

$

Usually ships in 3-6 days

0

12

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 1-643186

SEAL-TRIM

$26.99

$

Usually ships in 3-6 days

0

14

Toro 1-633885-03

PLATE-HINGE, HOOD

$

$

Not available

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

18

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

19

Toro 1-643187

SEAL-TRIM

$22.99

$

Usually ships in 3-6 days

0

20

Toro 1-643107-03

ANGLE-RADIATOR, TOP

$47.99

$

Usually ships in 3-6 days

0

21

Toro 1-643106-03

ANGLE-RADIATOR, RH

$29.99

$

Usually ships in 3-6 days

0

22

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0
