74268 CP (Z 590-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) ENGINE MOUNT ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

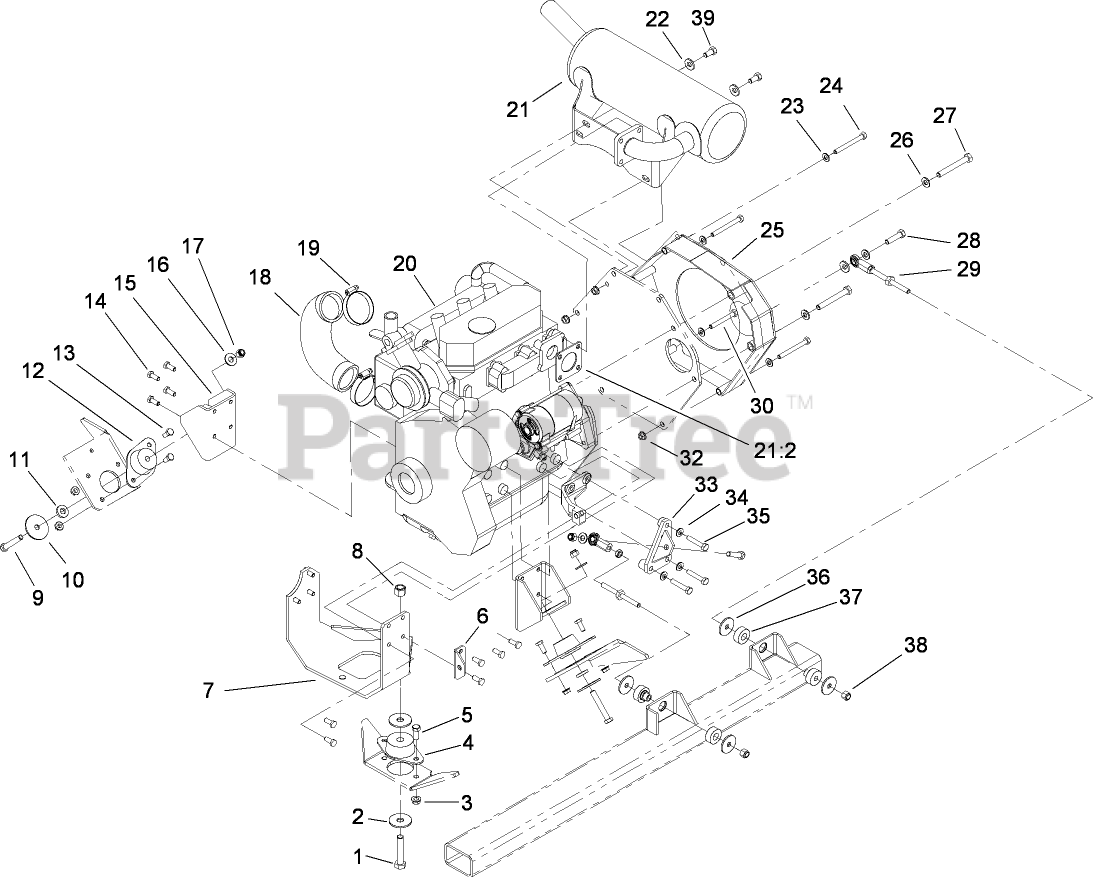

ENGINE MOUNT ASSEMBLY Parts Diagram

  • Title

1

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

2

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

3

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

4

Toro 103-1022

ISOLATOR-REAR

$99.99

$

Usually ships in 3-6 days

0

5

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 10

0

6

Toro 103-3908

BRACKET-GROUND

$

$

Not available

7

Toro 103-0870-03

REAR ENGINE MOUNT ASM

$220.99

$

Usually ships in 3-6 days

0

8

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 83-1040

WASHER-FLAT

$4.49

$

In Stock, only 2 left!

0

11

Toro 66-6480

WASHER

$2.49

$

Usually ships in 3-6 days

0

12

Toro 103-2613

ISOLATOR-SIDE

$89.99

$

In Stock, only 3 left!

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

15

Toro 103-0839-03

LH AND RH ENGINE MOUNT ASM

$80.99

$

Usually ships in 3-6 days

0

16

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 103-0921

HOSE

$73.99

$

Usually ships in 3-6 days

0

19

Toro 2412-42

CLAMP-HOSE

$10.99

$

Usually ships in 3-6 days

0

20

Toro 103-0888

ENGINE-DAIHATSU

$

$

Not available

21

Toro 103-2592

MUFFLER KIT

$685.99

$

Usually ships in 3-6 days

0

21:2

Toro 103-1385

GASKET-MUFFLER

$84.99

$

Usually ships in 3-6 days

0

22

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 8

0

25

Toro 103-3573-03

COVER-FLYWHEEL

$

$

Not available

26

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 56-2150

SCREW-HH

$12.99

$

Usually ships in 3-6 days

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 103-3745

BALL JOINT LINK ASM

$103.99

$

Usually ships in 3-6 days

0

30

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

32

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

33

Toro 103-3556-03

BRACKET-ENGINE, FRONT

$

$

Not available

34

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

35

Toro 33114-045

Screw-HH

$1.99

$

Usually ships in 3-6 days

0

36

Toro 93-6099

WASHER

$3.99

$

Usually ships in 3-6 days

0

37

Toro 103-3568

ISOLATOR-LINK

$53.99

$

Usually ships in 3-6 days

0

38

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

39

Toro 63-7790

SCREW-CAP

$3.99

$

Usually ships in 3-6 days

0
