74268 (7000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 312000001 - 312999999) (2012) ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 106-7437 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

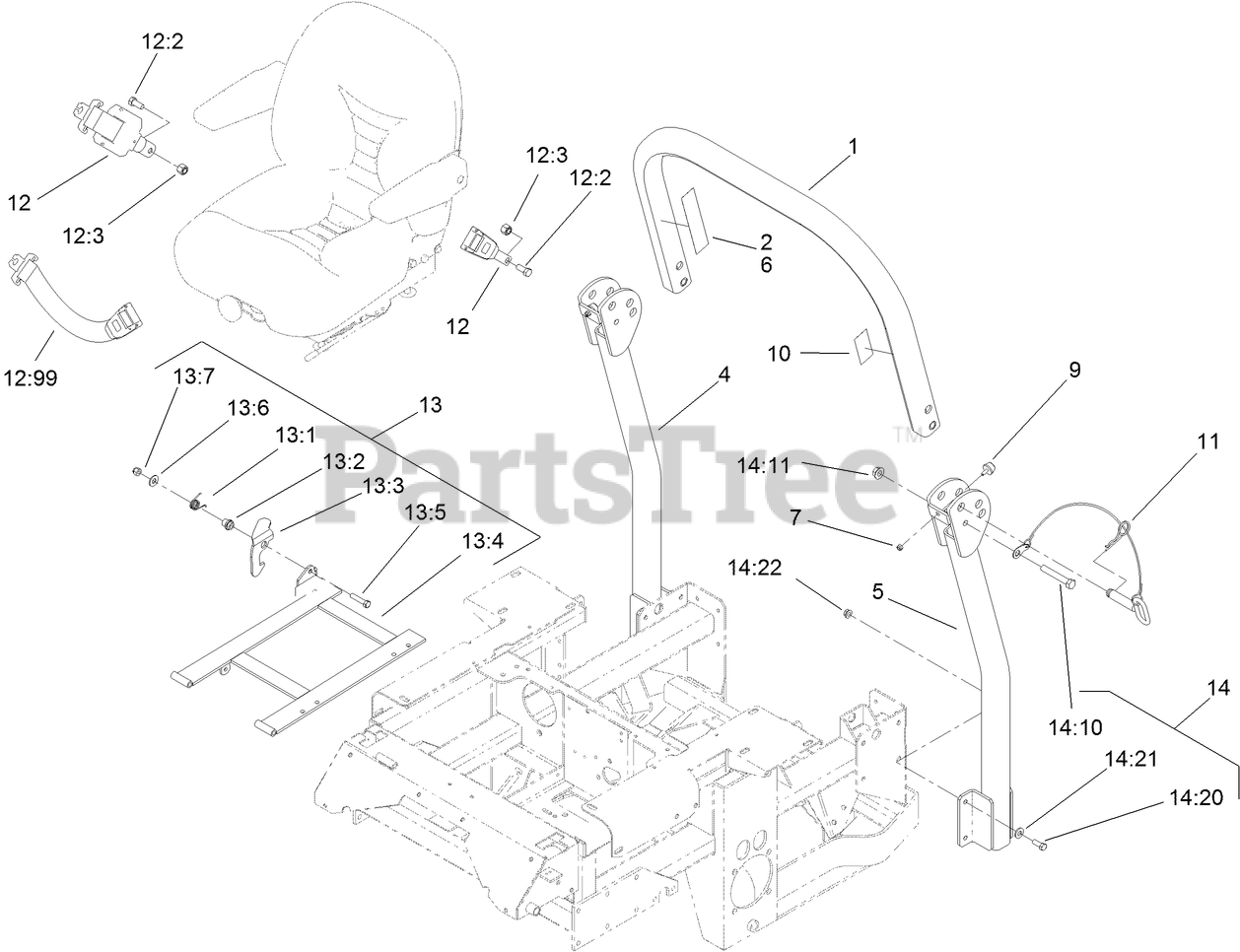

ROLL-OVER PROTECTION SYSTEM ASSEMBLY NO. 106-7437 Parts Diagram

  • Title
1

Upper Tube ASM

Note: Not serviced separately

$

$

Not available

2

Toro 107-2102

DECAL-WARNING, FOLDING ROPS

$9.99

$

In Stock, only 1 left!

0

4

TUBE-SUPPORT, RH

Note: Not serviced separately

$

$

Not available

5

TUBE-SUPPORT, LH

Note: Not serviced separately

$

$

Not available

6

Toro 107-3069

DECAL-WARNING

$22.99

$

Usually ships in 3-6 days

0

7

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

9

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

10

Toro 107-2101

DECAL-ROPS

$

$

Not available

11

Toro 103-4553

PIN-FOLD, ROPS

$79.99

$

In Stock, only 2 left!

0

12

Toro 110-0883

RETRACTABLE SEATBELT KIT

$274.99

$

Usually ships in 3-6 days

0

12:2

Toro 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

12:3

Toro 3296-7

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

12:99

Toro 109-6226

SEAT BELT EXTENSION KIT

$96.99

$

Usually ships in 3-6 days

0

13

Toro 109-1813

SEAT FRAME SINGLE LATCH ASM

$375.99

$

Usually ships in 3-6 days

0

13:1

Toro 103-5520

CATCH-LATCH, SINGLE

$170.99

$

Usually ships in 3-6 days

0

13:2

Toro 103-5519

SPRING-TORSION, LATCH

$8.49

$

Usually ships in 3-6 days

0

13:3

Toro 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

13:4

Toro 109-9222-03

FRAME-SEAT

$

$

Currently unavailable

13:5

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13:6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

13:7

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

BAG-BOLT

Note: Not serviced separately

$

$

Not available

14:10

Toro 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

14:11

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

14:20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14:21

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14:22

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0
