74267 (Z 595-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270000300) (2007) ENGINE HOUSING ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

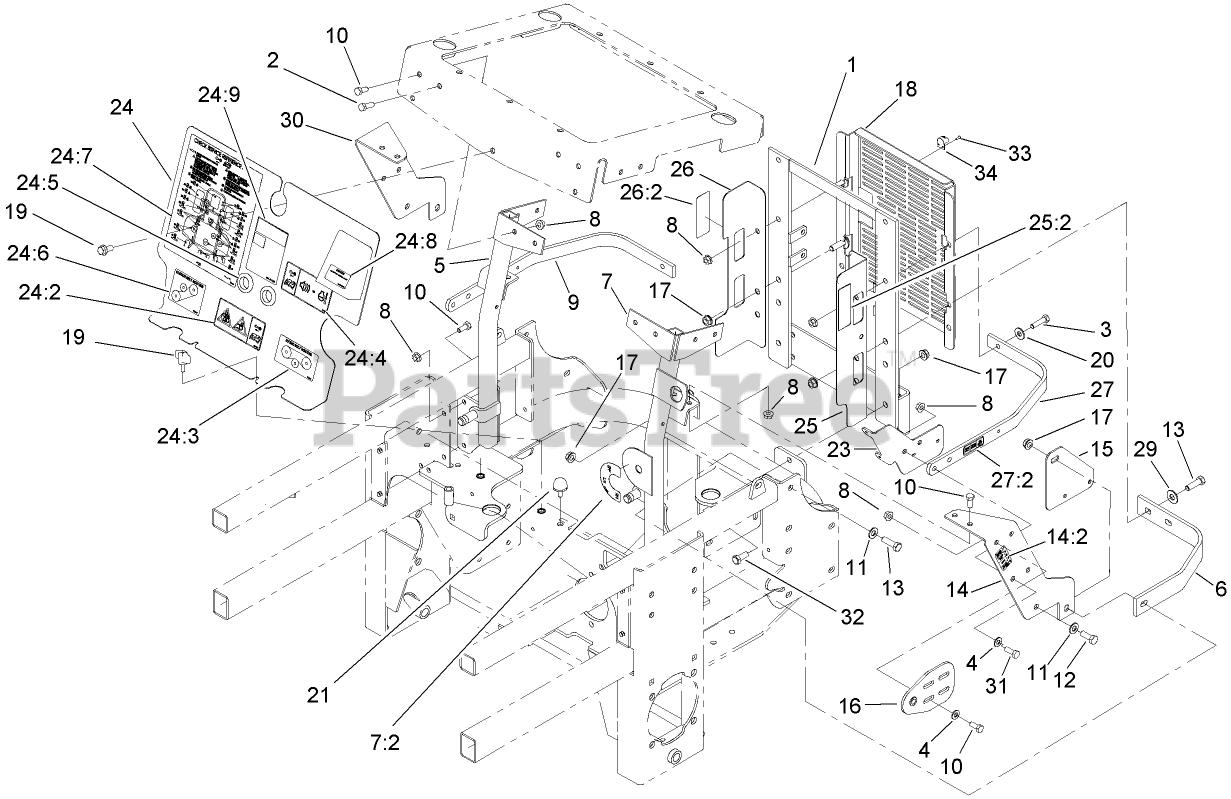

ENGINE HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9934-03

SUPPORT-RADIATOR, REAR

$200.99

$

Usually ships in 3-6 days

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 107-9941-03

RH RADIATOR BRACE ASM
(Superseded to 114-1170)

$218.99

$

Usually ships in 3-6 days

0

6

Toro 103-7623-03

STRAP-GUARD

$43.99

$

Usually ships in 3-6 days

0

7

Toro 110-3870

LH RADIATOR BRACE ASM

$196.99

$

Usually ships in 3-6 days

0

7:2

Toro 107-2114

DECAL-VALVE, FUEL

$34.99

$

Usually ships in 3-6 days

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 1-633897-03

RIB-TOP

$

$

Not available

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 112-8318

LH SUPPORT BRACKET ASM

$

$

Not available

14:2

Toro 112-8319

DECAL-FUSES

$

$

Not available

15

Toro 108-5349-03

BRACKET-PUMP, FUEL

$

$

Not available

16

Toro 108-5345-03

PLATE-PIVOT, HOOD

$56.99

$

Usually ships in 3-6 days

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 112-8302-03

SHIELD-COOLER

$115.99

$

Usually ships in 3-6 days

0

19

Toro 98-8332

KNOB

$5.49

$

In Stock, Qty 16

0

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

23

Toro 107-8081-03

BRACKET-RELAY/FUSE

$

$

Not available

24

Toro 108-5936

FRONT ENGINE SHIELD ASM

$275.99

$

Usually ships in 3-6 days

0

24:2

Toro 110-3853

DECAL-DANGER, ROTATING DEVICES

$11.99

$

Usually ships in 3-6 days

0

24:3

Toro 108-5955

DECAL-ROUTING, HYDRO BELT

$19.99

$

Usually ships in 3-6 days

0

24:4

Toro 110-3852

DECAL- WARNING, BUZZER

$7.99

$

Usually ships in 3-6 days

0

24:5

Toro 100-3815

GROMMET-RUBBER

$9.99

$

In Stock, only 2 left!

0

24:6

Toro 108-5957

DECAL-ROUTING, CLUTCH BELT

$19.99

$

Usually ships in 3-6 days

0

24:7

Toro 110-3851

DECAL-CHECK, SERVICE

$17.99

$

Usually ships in 3-6 days

0

24:8

Toro 110-0806

DECAL-CAUTION

$9.49

$

Usually ships in 3-6 days

0

24:9

Toro 104-2449

DECAL-COOLANT

$10.99

$

Usually ships in 3-6 days

0

25

Toro 110-0878

LH FAN GUARD ASM

$64.99

$

Usually ships in 3-6 days

0

25:2

Toro 1-643253

DECAL-FAN, RADIATOR

$5.49

$

Usually ships in 3-6 days

0

26

Toro 110-0887

RH FAN GUARD ASM

$64.99

$

Usually ships in 3-6 days

0

26:2

Toro 1-643253

DECAL-FAN, RADIATOR

$5.49

$

Usually ships in 3-6 days

0

27

Toro 110-0890

STRAP-TOP

$

$

Not available

27:2

Toro 110-0305

DECAL-RELAY

$

$

Not available

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro 108-5339-03

BRACKET-SUPPORT, RH

$41.99

$

Usually ships in 3-6 days

0

31

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

33

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

34

Toro 1-643189

KEEPER-LATCH, RUBBER
(Superseded to 249-40)

$11.99

$

Usually ships in 3-6 days

0
