74267 (Z 595-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270000300) (2007) ELECTRICAL ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

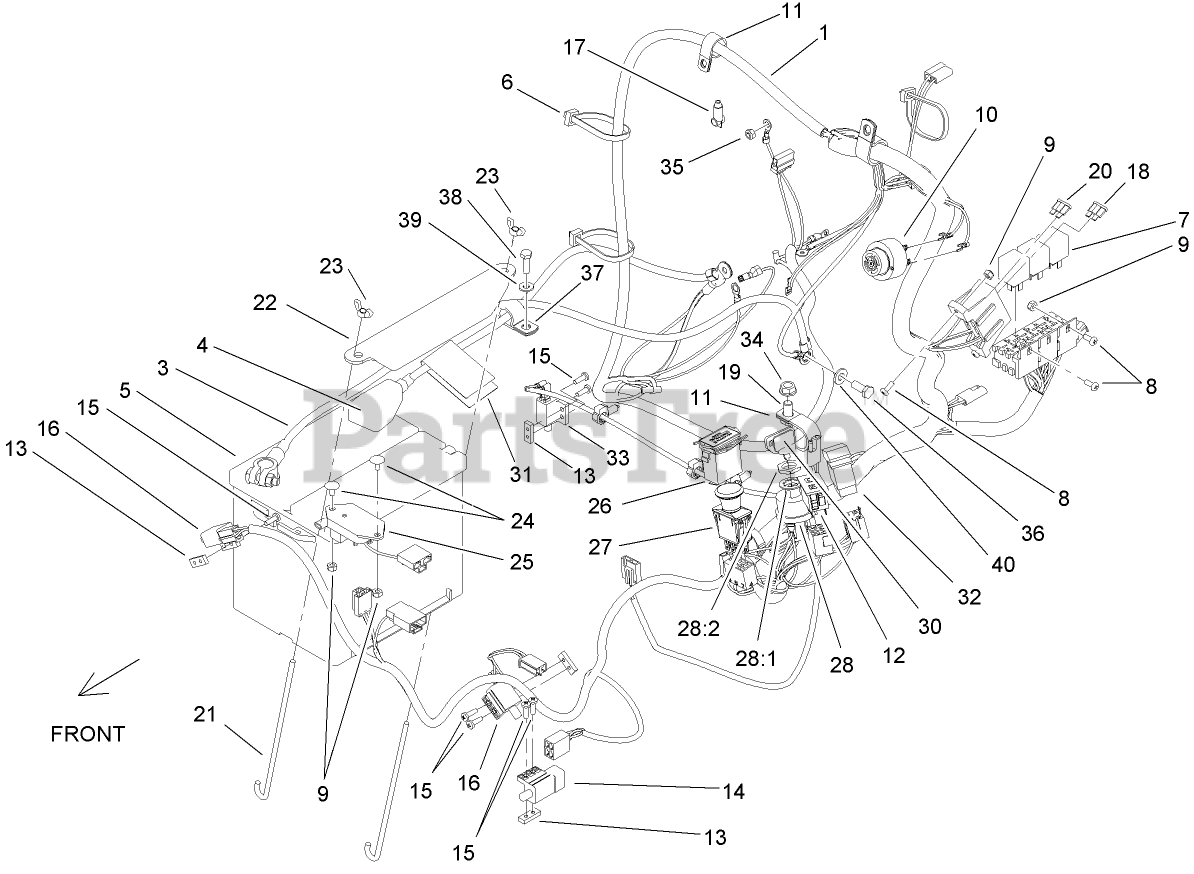

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 112-8315

HARNESS-ELECTRICAL, MAIN

$

$

Not available

3

Toro 110-0303

CABLE-BATTERY, NEGATIVE

$91.99

$

Usually ships in 3-6 days

0

4

Toro 110-0304

CABLE-BATTERY, POSITIVE

$93.99

$

Usually ships in 3-6 days

0

5

Toro 106-5187

BATTERY-DRY

$209.99

$

Usually ships in 3-6 days

0

6

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

7

Toro 1-643275

RELAY

$22.99

$

In Stock, Qty 8

0

8

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 103-0205

ALARM-TONE, DUAL

$64.99

$

In Stock, only 2 left!

0

11

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

12

Toro 100-8071

LAMP-WARNING

$41.99

$

Usually ships in 3-6 days

0

13

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

14

Toro 1-633111

SWITCH

$20.99

$

In Stock, Qty 20+

0

15

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Toro 1-513051

SWITCH-OPEN, NORMALLY

$18.99

$

In Stock, Qty 20+

0

17

Toro 1-643178

CAP-INSULATOR, RED

$5.49

$

Usually ships in 3-6 days

0

18

Toro 103-1368

FUSE-40 AMP

$5.49

$

Usually ships in 3-6 days

0

19

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

20

Toro 109103

FUSE-BLADE, 30 AMP

$6.49

$

In Stock, Qty 6

0

21

Toro 103-1312

Bolt-Holddown

$6.49

$

Usually ships in 3-6 days

0

22

Toro 103-1311-03

HOLDDOWN-BATTERY

$26.99

$

Usually ships in 3-6 days

0

23

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

24

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

25

Toro 103-5218

MODULE-DELAY, SEAT

$44.99

$

In Stock, Qty 6

0

26

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$67.99

$

In Stock, only 1 left!

0

27

Toro 103-5221

SWITCH-PTO

$55.99

$

In Stock, Qty 20+

0

28

Toro 104-2541

SWITCH ASM

$37.99

$

In Stock, Qty 11

0

28:1

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

28:2

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

30

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

31

Toro 107-9309

DECAL-INSTRUCTIONS, CHARGING

$20.99

$

Usually ships in 3-6 days

0

32

Toro 110-0811

SWITCH-ROCKER

$68.99

$

Usually ships in 3-6 days

0

33

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 15

0

34

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

36

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

37

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

38

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
