74267 (Z 580-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) CASTER WHEEL AND FORK ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

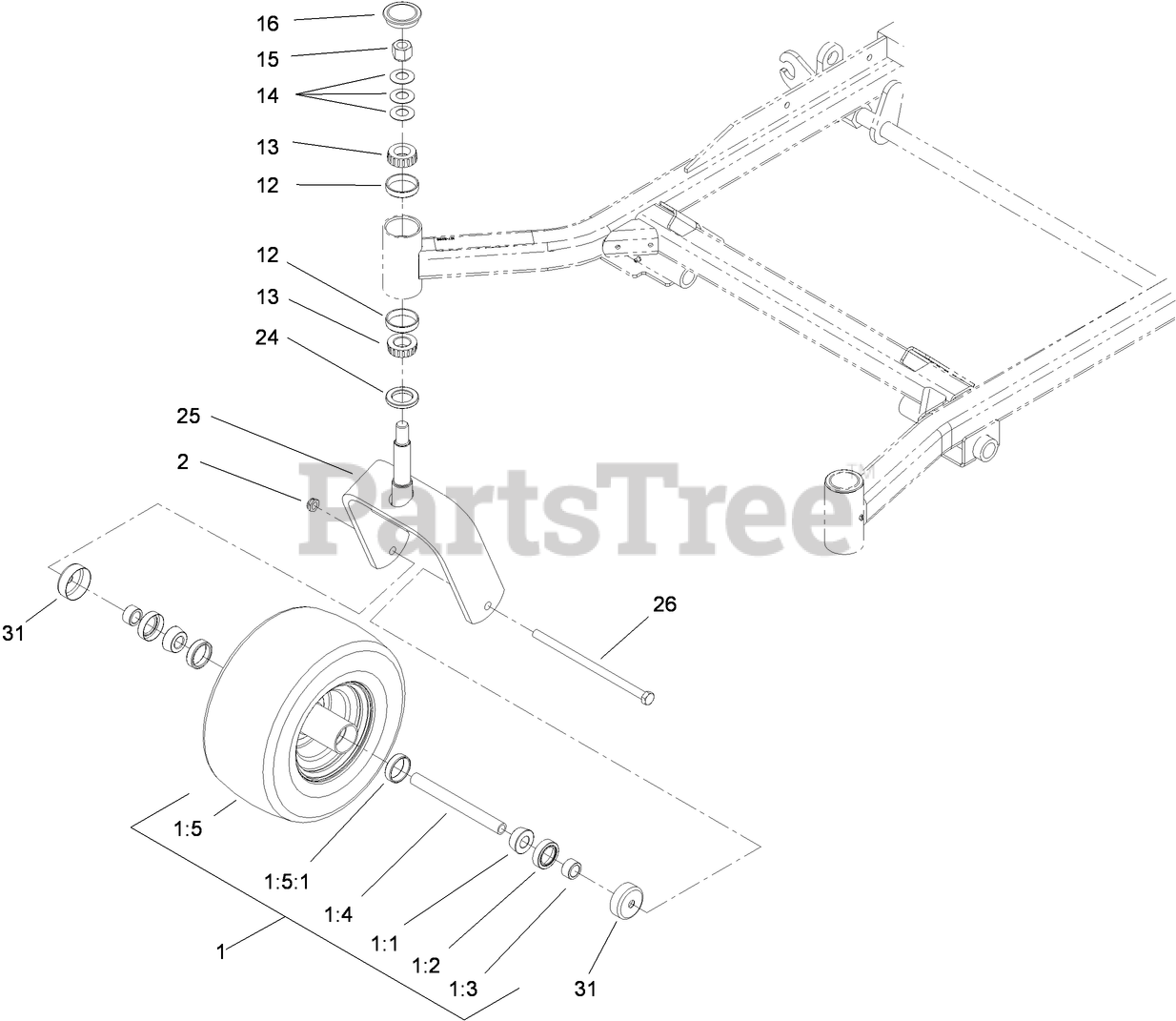

CASTER WHEEL AND FORK ASSEMBLY Parts Diagram

  • Title

1

Toro 109-9125

WHEEL AND TIRE ASM
(Superseded to 109-9127)

$341.99

$

In Stock, Qty 18

0

1:1

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 20+

0

1:2

Toro 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 20+

0

1:3

Toro 103-3051

SPACER-NUT

$9.49

$

In Stock, Qty 20+

0

1:4

Toro 103-5156

AXLE-CASTER
(Superseded to 126-5361)

$19.99

$

In Stock, Qty 17

0

1:5

Toro 109-9124

WHEEL AND TIRE ASM
(Superseded to 109-9127)

$341.99

$

In Stock, Qty 18

0

1:5:1

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

2

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

12

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

13

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 16

0

14

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

15

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

16

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

24

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

25

Toro 103-1474-01

CASTER-FORK
(Superseded to 116-8888)

$185.99

$

In Stock, Qty 20+

0

26

Toro 325-39

Screw-HH

$18.99

$

In Stock, Qty 18

0

31

Toro 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0
