74267 CP (Z 580-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 310000001 - 310999999) (2010) DECK ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

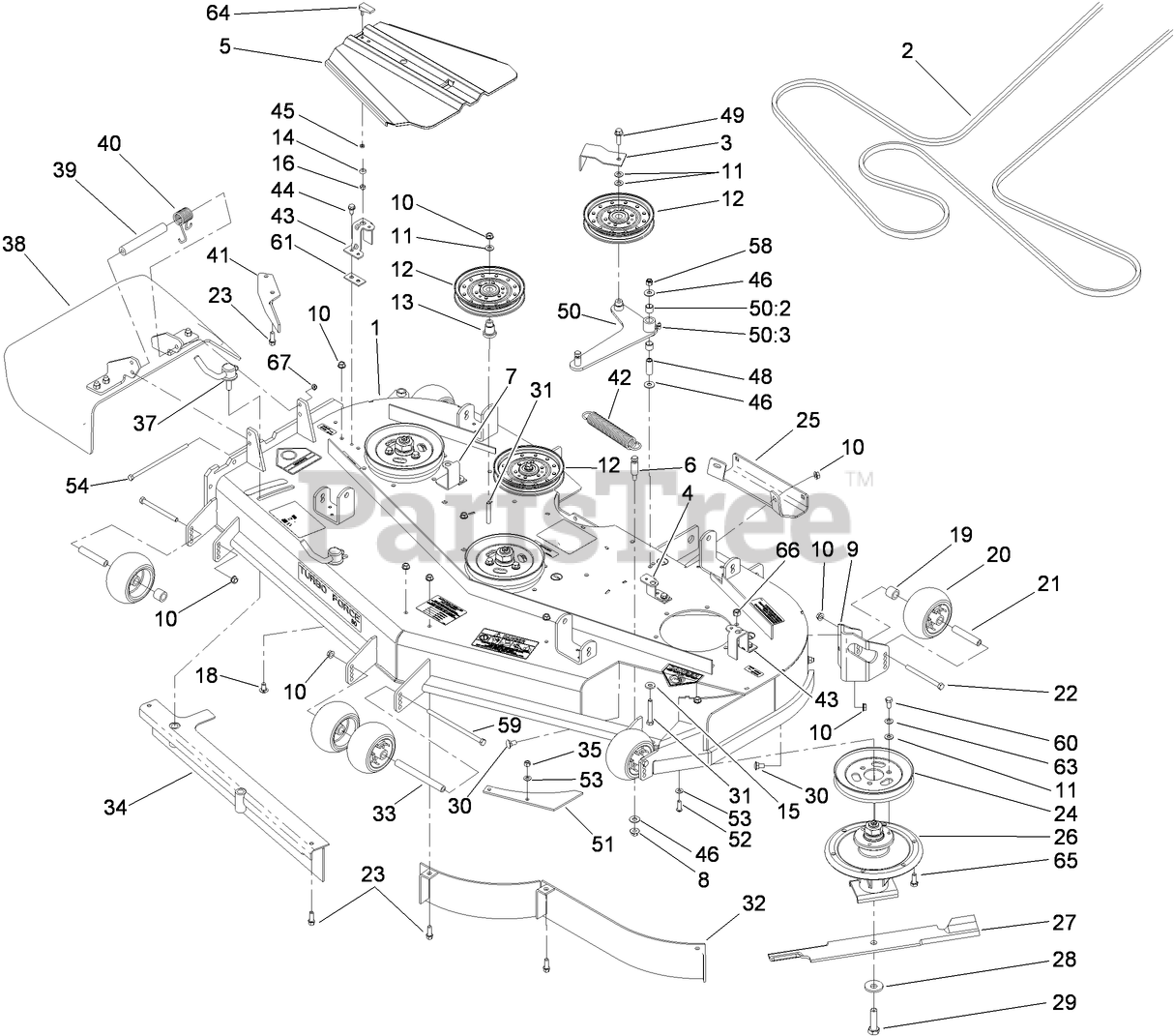

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 114-4478

DECK DECAL ASM

$3659.99

$

Usually ships in 3-6 days

0

2

Toro 114-4420

BELT-V

$161.99

$

In Stock, only 1 left!

0

3

Toro 108-7220-01

GUIDE-BELT

$41.99

$

In Stock, only 2 left!

0

4

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 1 left!

0

5

Toro 112-8664

COVER-BELT

$39.99

$

In Stock, only 2 left!

0

6

Toro 110-0801

PIN-THREADED, SPRING ANCHOR

$23.99

$

In Stock, only 1 left!

0

7

Toro 108-4122-01

BRACKET-COVER
(Superseded to 119-4221-01)

$32.99

$

Usually ships in 3-6 days

0

8

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 106-7354-01

MOUNT-WHEEL, LH

$107.99

$

In Stock, only 1 left!

0

10

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

12

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 16

0

13

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, only 4 left!

0

14

Toro 106-6778

BUSHING-LATCH, SWELL

$1.99

$

In Stock, Qty 20+

0

15

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

19

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 19

0

20

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

21

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

22

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

23

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

24

Toro 105-7734

Pulley

$49.99

$

In Stock, Qty 9

0

25

Toro 105-8792-01

Plate-Skid

$84.99

$

In Stock, only 1 left!

0

26

Toro 112-8698

SPINDLE ASM

$771.99

$

Usually ships in 3-6 days

0

27

Toro 105-7718-03

BLADE-HI FLOW

$25.99

$

In Stock, Qty 9

0

28

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 18

0

29

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

0

30

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

31

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

32

$168.99

$

Usually ships in 3-6 days

0

33

Toro 98-5967

SPACER-WHEEL

$15.99

$

Usually ships in 3-6 days

0

34

$269.99

$

Usually ships in 3-6 days

0

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 107-1664

LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

38

Toro 108-2792

RUBBER DEFLECTOR ASM

$227.99

$

In Stock, only 1 left!

0

39

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

40

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

41

Toro 106-3216-01

BAFFLE-DISCHARGE

$25.99

$

Usually ships in 3-6 days

0

42

Toro 119-0392

SPRING-EXTENSION

$45.99

$

In Stock, only 3 left!

0

43

Toro 108-4121-01

BRACKET-COVER
(Superseded to 119-4220-01)

$12.99

$

In Stock, Qty 6

0

44

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

45

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

46

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

48

Toro 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

49

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 18

0

50

Toro 108-5949

DECK IDLER ARM ASM

$192.99

$

In Stock, only 1 left!

0

50:2

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

50:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

51

Toro 107-3137

PLATE-TURBO

$47.99

$

Usually ships in 3-6 days

0

52

Toro 3274-104

SCREW-HSBH

$1.99

$

In Stock, only 4 left!

0

53

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

54

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

58

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

59

Toro 108-5388

SCREW-HH

$15.99

$

Usually ships in 3-6 days

0

60

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

61

Toro 112-8663-01

SPACER-COVER, BELT
(Superseded to 119-4222-01)

$20.99

$

Usually ships in 3-6 days

0

63

Toro 3290-455

WASHER-BELLEVILLE

$3.99

$

Usually ships in 3-6 days

0

64

Toro 106-6777

HANDLE-LATCH, SWELL

$26.99

$

In Stock, Qty 9

0

65

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

66

Toro 33025-00

NUT-LOCK, NI

$1.49

$

In Stock, only 2 left!

0

67

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8
