74267 CP (Z 580-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) SPINDLE ASSEMBLY NO. 112-8698 Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

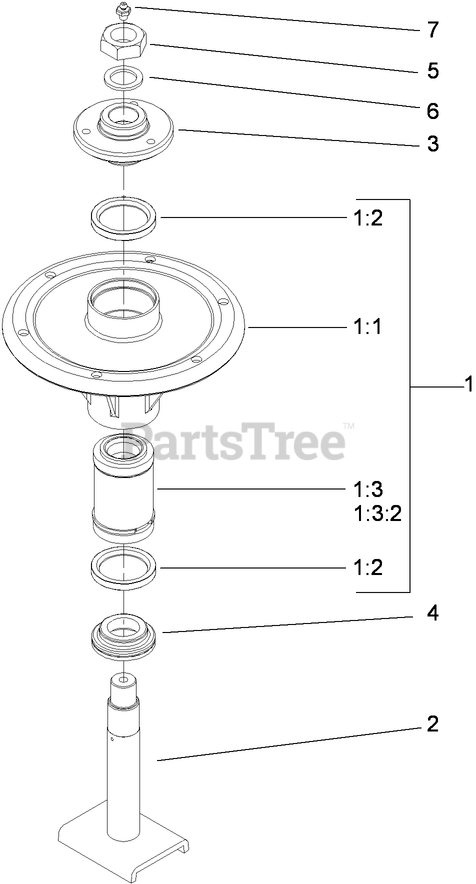

SPINDLE ASSEMBLY NO. 112-8698 Parts Diagram

  • Title

1

SPINDLE BEARING ASM

Note: Not serviced separately

$

$

Not available

1:1

HOUSING-SPINDLE

Note: Not serviced separately

$

$

Not available

1:2

Toro 253-154

SEAL-OIL

$5.99

$

In Stock, Qty 16

0

1:3

Toro 71-2530

BEARING/SPACER KIT

$175.99

$

Usually ships in 3-6 days

0

1:3:2

SPACER-BEARING

Note: Not serviced separately

$

$

Not available

2

Toro 110-3285

SPINDLE SHAFT ASM

$

$

Not available

3

Toro 114-1161

HUB-SPLINE

$

$

Not available

4

Toro 69-6950

SPACER-SHAFT, SPINDLE

$24.99

$

Usually ships in 3-6 days

0

5

Toro 3296-49

NUT-LOCK, NI

$14.99

$

In Stock, only 2 left!

0

6

Toro 3-8514

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

7

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0
