74266 CP (Z 595-D) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) COOLING SYSTEM ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

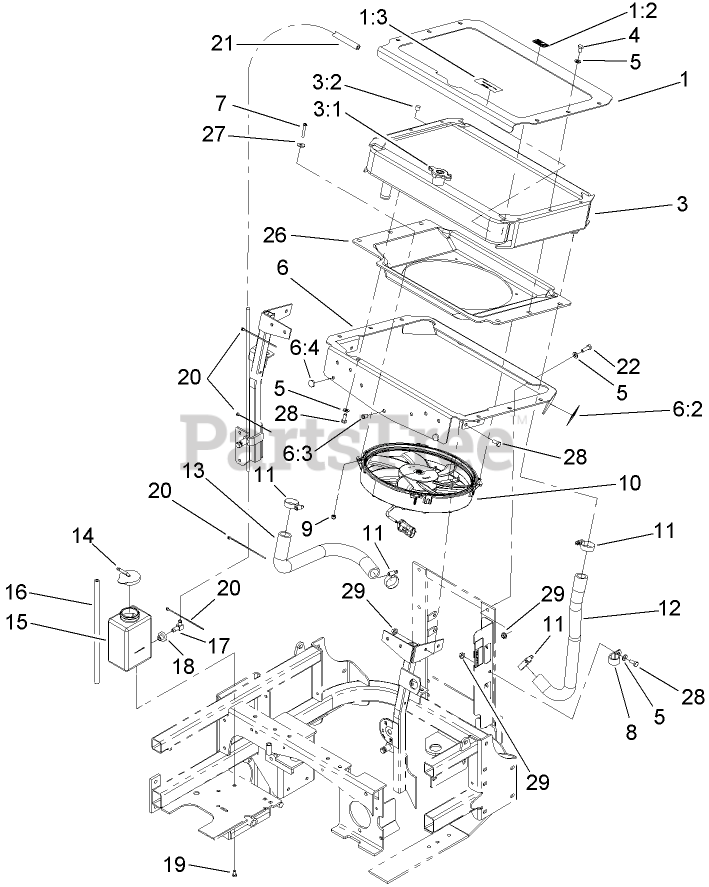

COOLING SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 112-8305

TOP RADIATOR PLATE ASM

$167.99

$

Usually ships in 3-6 days

0

1:2

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

1:3

Toro 110-3842

DECAL-ANTIFREEZE

$9.49

$

Usually ships in 3-6 days

0

3

Toro 108-5382

RADIATOR ASM

$2072.99

$

Usually ships in 3-6 days

0

3:1

Toro 1-643161

CAP-RADIATOR

$84.99

$

In Stock, only 3 left!

0

3:2

Toro 99-8551

PLUG-PIPE

$5.49

$

Usually ships in 3-6 days

0

4

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 112-8306

BOTTOM RAD PLATE ASM

$324.99

$

Usually ships in 3-6 days

0

6:2

Toro 1-643253

DECAL-FAN, RADIATOR

$5.49

$

Usually ships in 3-6 days

0

6:3

Toro 32148-6

INSERT-NUT

$1.99

$

Usually ships in 3-6 days

0

6:4

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

7

Toro 1-803067

SCREW

$1.49

$

Usually ships in 3-6 days

0

8

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

9

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 112-4172

FAN-HI PERFORMANCE

$423.99

$

Usually ships in 3-6 days

0

11

Toro 1-633989

CLAMP-HOSE
(Superseded to 2412-34)

$2.49

$

In Stock, Qty 5

0

12

Toro 108-5372

HOSE-RADIATOR, LH

$87.99

$

Usually ships in 3-6 days

0

13

Toro 112-8314

HOSE-RADIATOR, RH

$87.99

$

Usually ships in 3-6 days

0

14

Toro 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 1 left!

0

15

Toro 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

16

Toro 1-603954

HOSE-LINE, FUEL

$8.99

$

In Stock, only 1 left!

0

17

Toro 1-643259

FITTING-ELBOW
(Superseded to 46-6550)

$40.99

$

Usually ships in 3-6 days

0

18

Toro 1-513645

BUSHING-VALVE, FUEL
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

19

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

20

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Toro 103-1428

HOSE-OVERFLOW

$28.99

$

Usually ships in 3-6 days

0

22

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 112-8317

SHROUD

$199.99

$

Usually ships in 3-6 days

0

27

Toro 3256-67

WASHER

$0.99

$

In Stock, Qty 9

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
