74266 (7000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 315000001 - 315999999) (2015) Starter Component Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

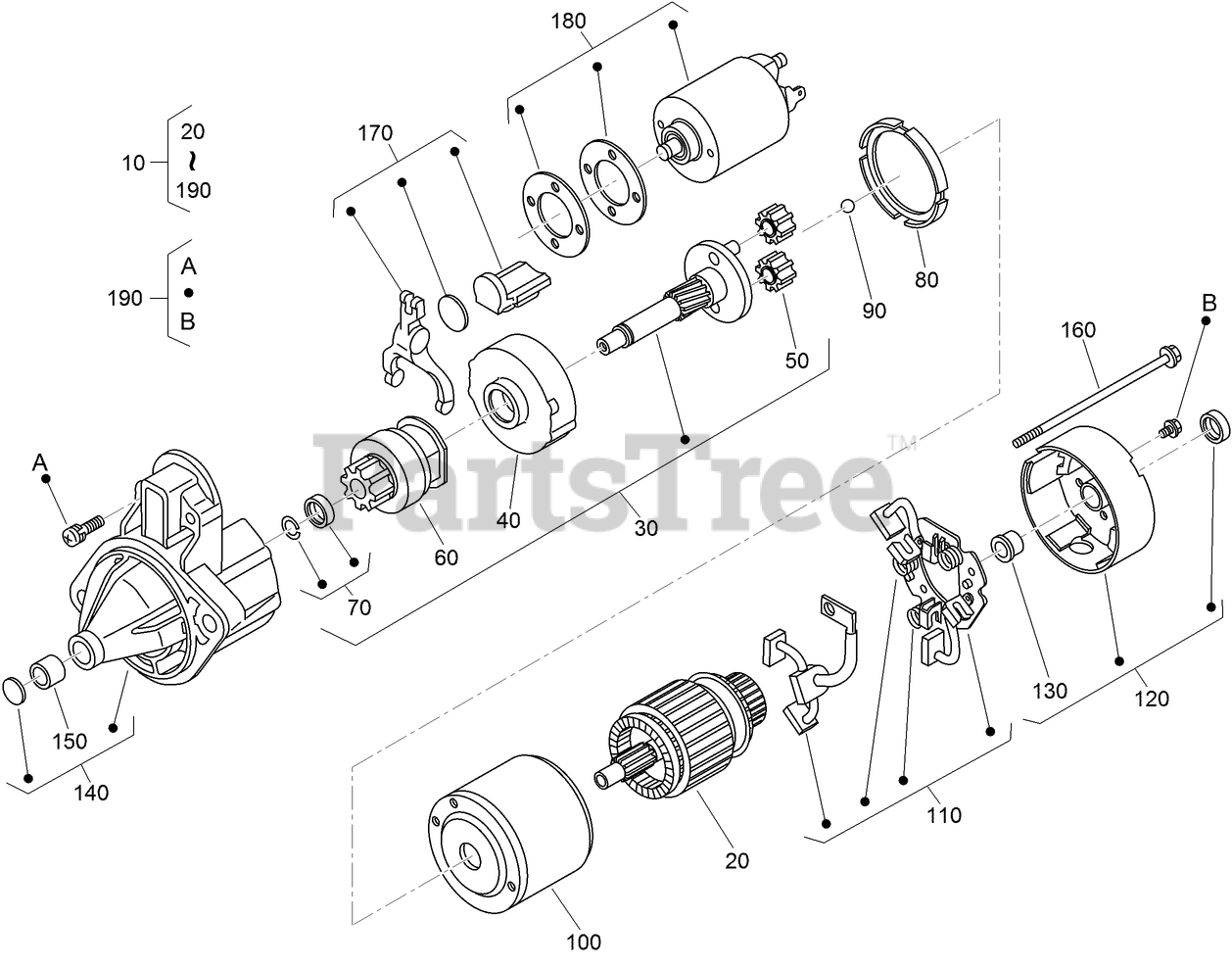

Starter Component Assembly Parts Diagram

  • Title

10

Toro 130-1294

See Supercession: 110-3800
(Superseded to 110-3800)

$882.99

$

Usually ships in 3-6 days

0

20

Toro 110-3801

ARMATURE

$1574.99

$

Usually ships in 3-6 days

0

30

Toro 110-3802

SHAFT ASM

$1458.99

$

Usually ships in 3-6 days

0

40

Toro 120-3142

GEAR-INTERNAL

$55.99

$

Usually ships in 3-6 days

0

50

Toro 110-3804

GEAR-PLANETARY

$136.99

$

Usually ships in 3-6 days

0

60

Toro 110-3805

CLUTCH-RUNNING, OVER

$817.99

$

In Stock, only 1 left!

0

70

Toro 110-3806

STOPPER

$33.99

$

Usually ships in 3-6 days

0

80

Toro 120-3143

GASKET

$8.49

$

Usually ships in 3-6 days

0

90

Toro 110-3808

BALL

$4.49

$

Usually ships in 3-6 days

0

100

Toro 130-1295

YOKE

$600.99

$

Usually ships in 3-6 days

0

110

Toro 110-3810

BRUSH HOLDER ASM

$632.99

$

Usually ships in 3-6 days

0

120

Toro 110-3811

REAR BRACKET ASM

$218.99

$

Usually ships in 3-6 days

0

130

Toro 110-3812

BUSHING

$19.99

$

Usually ships in 3-6 days

0

140

Toro 110-3813

FRONT BRACKET ASM

$739.99

$

Usually ships in 3-6 days

0

150

Toro 110-3814

BUSHING

$21.99

$

Usually ships in 3-6 days

0

160

Toro 110-3815

BOLT

$18.99

$

Usually ships in 3-6 days

0

170

Toro 110-3816

FORK LEVER ASM

$65.99

$

Usually ships in 3-6 days

0

180

Toro 125-9099

See Supercession: 110-3817
(Superseded to 110-3817)

$441.99

$

Usually ships in 3-6 days

0

190

Toro 110-3818

SCREWS (SET OF 4)

$8.99

$

Usually ships in 3-6 days

0
