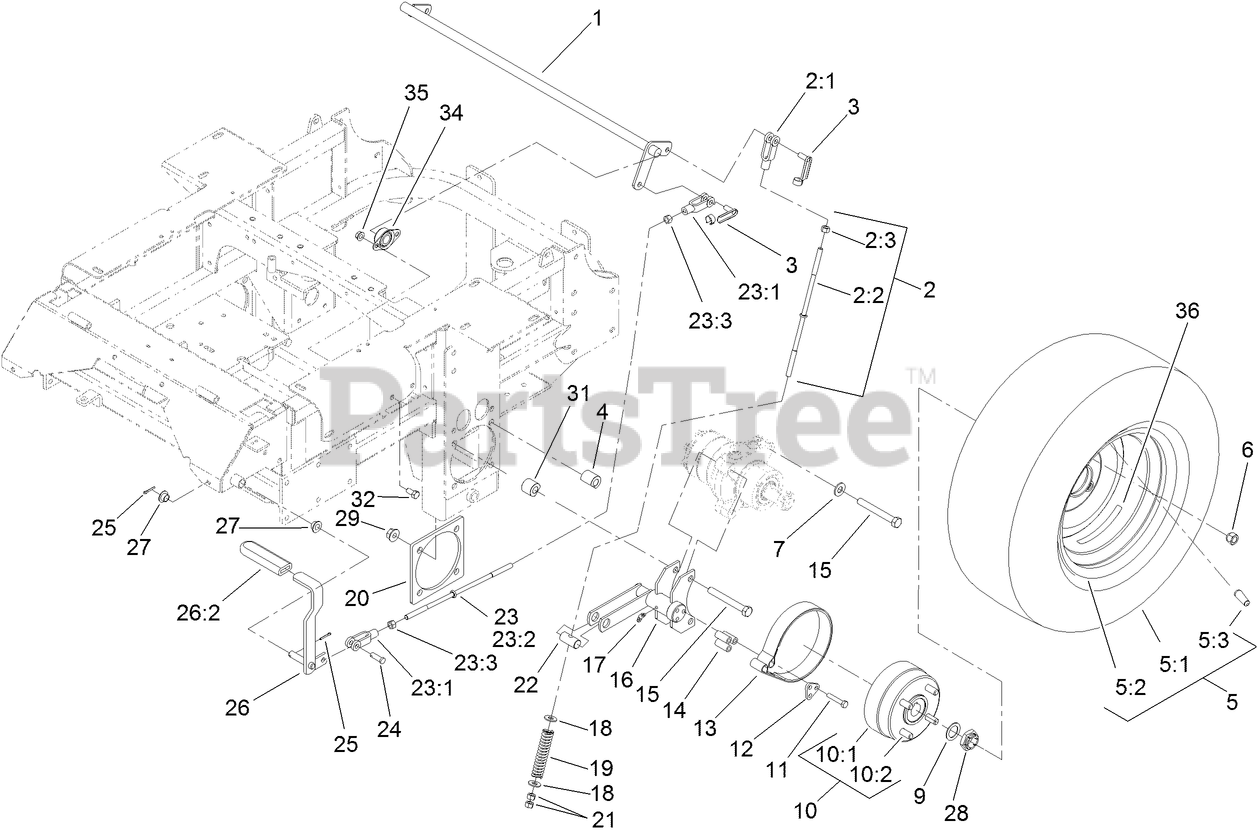

74266 (7000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 315000001 - 315999999) (2015) Main Frame and Rear Wheel Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

Main Frame and Rear Wheel Assembly Parts Diagram

  • Title

1

Toro 1-632217-03

SHAFT-BRAKE

$169.99

$

Usually ships in 3-6 days

0

2

Toro 108-5963

BRAKE ROD ASM

$51.99

$

Usually ships in 3-6 days

0

2:1

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 11

0

2:2

Toro 108-5980

ROD-BRAKE

$43.99

$

Usually ships in 3-6 days

0

2:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

3

Toro 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 6

0

4

Toro 114-1185

SPACER-WHEEL, LONG

$11.99

$

Usually ships in 3-6 days

0

5

Toro 127-9512

WHEEL AND TIRE ASM

$494.99

$

Usually ships in 3-6 days

0

5:1

Toro 1-653160

TIRE
(Superseded to 116-5363)

$210.99

$

Usually ships in 3-6 days

0

5:2

Toro 127-9513

WHEEL

$330.99

$

Usually ships in 3-6 days

0

5:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

6

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

7

Toro 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

9

Toro 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0

10

Toro 103-0590

WHEEL HUB ASM

$182.99

$

In Stock, Qty 10

0

10:1

Toro 103-0589

HUB-WHEEL

$173.99

$

In Stock, only 3 left!

0

10:2

Toro 1-633926

STUD-WHEEL

$4.99

$

In Stock, Qty 20+

0

11

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

12

Toro 103-0374

RETAINER-BAND, BRAKE

$5.49

$

In Stock, only 3 left!

0

13

Toro 103-0355

BAND-BRAKE

$58.99

$

In Stock, only 3 left!

0

14

Toro 103-0384

SPACER

$1.99

$

In Stock, only 4 left!

0

15

Toro 325-18

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

16

Toro 103-0352-03

BRACKET-BRAKE

$217.99

$

Usually ships in 3-6 days

0

17

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, Qty 9

0

18

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

19

Toro 1-633454

SPRING-BRAKE

$10.99

$

Usually ships in 3-6 days

0

20

Toro 103-3271-03

PLATE-REINFORCEMENT

$51.99

$

Usually ships in 3-6 days

0

21

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

22

Toro 1-633144

PIN-TRUNION

$13.99

$

Usually ships in 3-6 days

0

23

Toro 108-5962

BRAKE ROD ASM

$54.99

$

Usually ships in 3-6 days

0

23:1

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 11

0

23:2

Toro 1-633477

ROD-BRAKE

$19.99

$

In Stock, only 1 left!

0

23:3

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

24

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 15

0

25

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

26

Toro 1-634500

BRAKE LEVER ASM

$74.99

$

Usually ships in 3-6 days

0

26:2

Toro 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 3 left!

0

27

Toro 1-513140

BEARING-CONTROL

$6.49

$

In Stock, Qty 8

0

28

Toro 116-1399

LOCKNUT

$14.99

$

In Stock, only 1 left!

0

29

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

31

Toro 114-1184

SPACER-WHEEL, SHORT

$10.99

$

Usually ships in 3-6 days

0

32

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

34

Toro 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 3 left!

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Toro 126-2055

DECAL-TORQUE, WHEEL HUB LUG

$6.49

$

In Stock, Qty 11
