74266 (7000) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) Traction Frame and Floor Pan Assembly Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

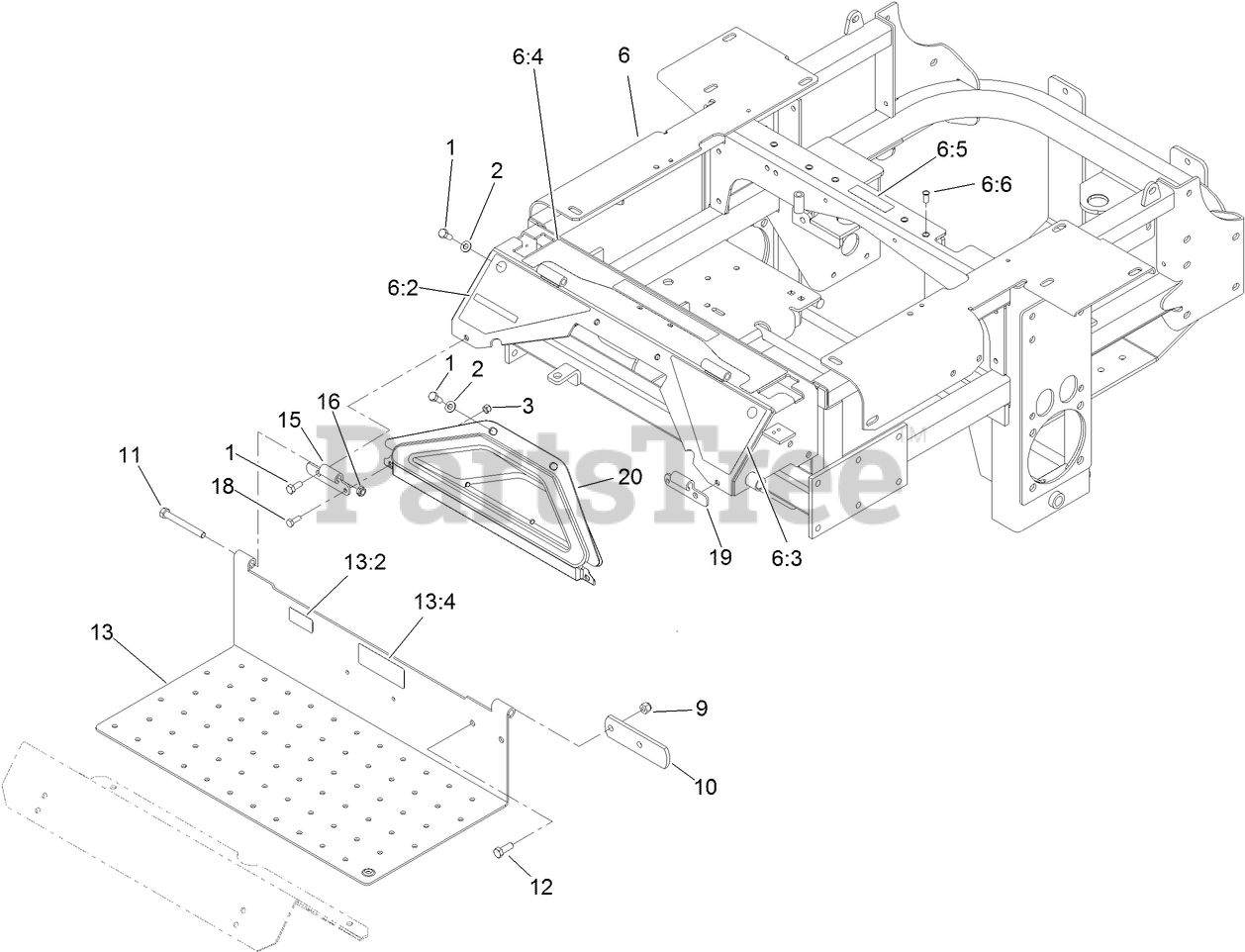

Traction Frame and Floor Pan Assembly Parts Diagram

  • Title

1

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

2

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 14

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

6

Toro 114-8194

TRACTION FRAME ASM
(Superseded to 131-7712)

$2634.99

$

Usually ships in 3-6 days

0

6:2

Toro 106-9989

DECAL-WARNING

$20.99

$

Usually ships in 3-6 days

0

6:3

Toro 106-7492

DECAL-DANGER

$20.99

$

Usually ships in 3-6 days

0

6:4

Toro 110-0819

DECAL-CONSOLE, TOP

$52.99

$

Usually ships in 3-6 days

0

6:5

Toro 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

6:6

Toro 32148-11

NUT-CLINCH

$2.49

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

10

Toro 1-633964-03

STOP-BRAKE, PARK

$12.99

$

Usually ships in 3-6 days

0

11

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 115-3852

FLOOR PAN ASM

$229.99

$

Usually ships in 3-6 days

0

13:2

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

13:4

Toro 121-7559

DECAL-DIESEL, BIO-READY

$7.99

$

Usually ships in 3-6 days

0

15

Toro 106-7488-03

HINGE-FLOORPAN, LH

$22.99

$

Usually ships in 3-6 days

0

16

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 106-7489-03

HINGE-FLOORPAN, RH

$22.99

$

Usually ships in 3-6 days

0

20

Toro 106-7498

POCKET

$34.99

$

Usually ships in 3-6 days

0
