74265 (Z 593-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) HYDRAULIC TANK, MOTOR AND PUMP ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

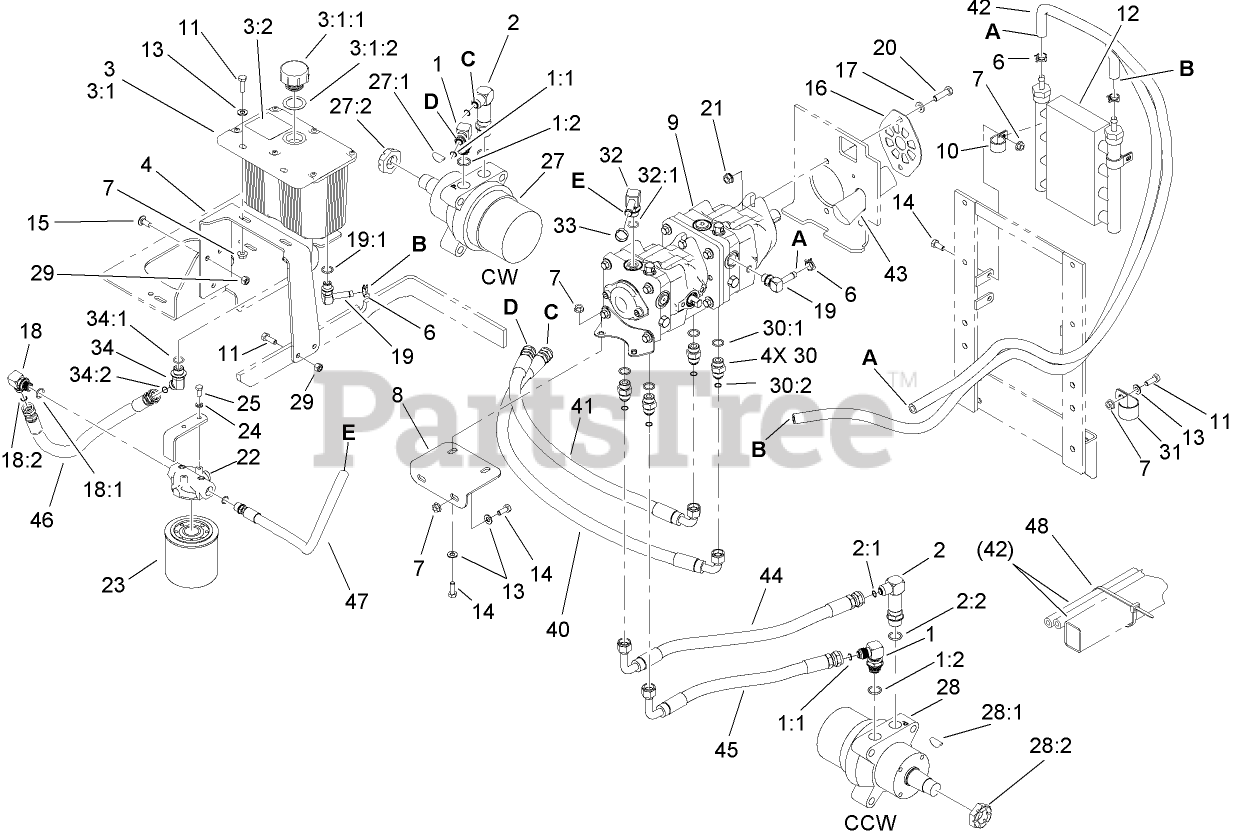

HYDRAULIC TANK, MOTOR AND PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633605

FITTING-HYD, 90 DEG

$47.99

$

Usually ships in 3-6 days

0

1:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

1:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

2

Toro 108-5323

FITTING-ELBOW-90

$97.99

$

Usually ships in 3-6 days

0

2:1

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

2:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

3

Toro 108-5315

HYDRAULIC TANK ASM

$510.99

$

Usually ships in 3-6 days

0

3:1

TANK-HYDRAULIC

Note: Not serviced separately

$

$

Not available

3:1:1

Toro 103-1948

CAP-RESERVOIR, HYD

$27.99

$

In Stock, Qty 5

0

3:1:2

Toro 103-1949

GASKET-CAP

$

$

Not available

3:2

Toro 1-523552

DECAL-TANK, HYD

$1.99

$

In Stock, Qty 15

0

4

Toro 108-5352-03

BRACKET-TANK, HYDRAULIC

$93.99

$

Usually ships in 3-6 days

0

6

Toro 103-1988

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

7

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 107-3462-03

BRACKET-PUMP, FRONT

$27.99

$

Usually ships in 3-6 days

0

9

Toro 107-9885

TANDEM PUMP ASM

$4597.99

$

Usually ships in 3-6 days

0

10

Toro 110-0824

R-CLAMP

$5.49

$

Usually ships in 3-6 days

0

11

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 110-0812

COOLER-OIL, HYDRO

$299.99

$

Usually ships in 3-6 days

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Toro 108-5367-03

PLATE-SHIELD, PUMP

$22.99

$

Usually ships in 3-6 days

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 103-2153

FITTING-90 DEG

$47.99

$

Usually ships in 3-6 days

0

18:1

Toro 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

0

18:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

19

Toro 100-4887

FITTING-ELBOW, 90

$28.99

$

In Stock, only 1 left!

0

19:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

20

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Toro 86-9080

HEAD-FILTER

$117.99

$

Usually ships in 3-6 days

0

23

Toro 67-8110

CARTRIDGE-FILTER, OIL

$23.99

$

In Stock, only 3 left!

0

24

Toro 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

25

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 107-9886

MOTOR-WHEEL, CW
(Superseded to 112-8358)

$1334.99

$

Usually ships in 3-6 days

0

27:1

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 14

0

27:2

Toro 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

28

Toro 108-5917

MOTOR-WHEEL, CCW
(Superseded to 112-8357)

$1411.99

$

Usually ships in 3-6 days

0

28:1

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 14

0

28:2

Toro 1-809036

NUT-HH

$37.99

$

In Stock, Qty 5

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

30

Toro 1-603990

FITTING-STRAIGHT

$18.99

$

In Stock, Qty 15

0

30:1

Toro 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

0

30:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

31

Toro 2412-82

CLAMP-R

$4.99

$

Usually ships in 3-6 days

0

32

Toro 108-5316

FITTING-ELBOW, 90 DEG

$46.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

33

Toro 103-2104

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

34

Toro 1-523221

FITTING-HYD, 45 DEG

$47.99

$

Usually ships in 3-6 days

0

34:1

Toro 1-603920

O-RING

$3.49

$

In Stock, Qty 20+

0

34:2

Toro 1-603992

O-Ring

$2.99

$

In Stock, Qty 20+

0

40

Toro 107-3495

HYDRAULIC HOSE ASM

$137.99

$

Usually ships in 3-6 days

0

41

Toro 107-3490

HYDRAULIC HOSE ASM

$132.99

$

Usually ships in 3-6 days

0

42

Toro 107-3492

HOSE-HYDRAULIC

$20.99

$

Usually ships in 3-6 days

0

43

Toro 108-5377

SLEEVE-FABRIC

$16.99

$

Usually ships in 3-6 days

0

44

Toro 108-5318

HYDRAULIC HOSE ASM

$128.99

$

In Stock, only 1 left!

0

45

Toro 107-3491

HYDRAULIC HOSE ASM

$119.99

$

Usually ships in 3-6 days

0

46

Toro 110-3854

HYDRAULIC HOSE ASM

$95.99

$

Usually ships in 3-6 days

0

47

Toro 108-5374

HYDRAULIC HOSE ASM

$45.99

$

Usually ships in 3-6 days

0

48

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
