74265 (Z 593-D) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) CASTER WHEEL ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

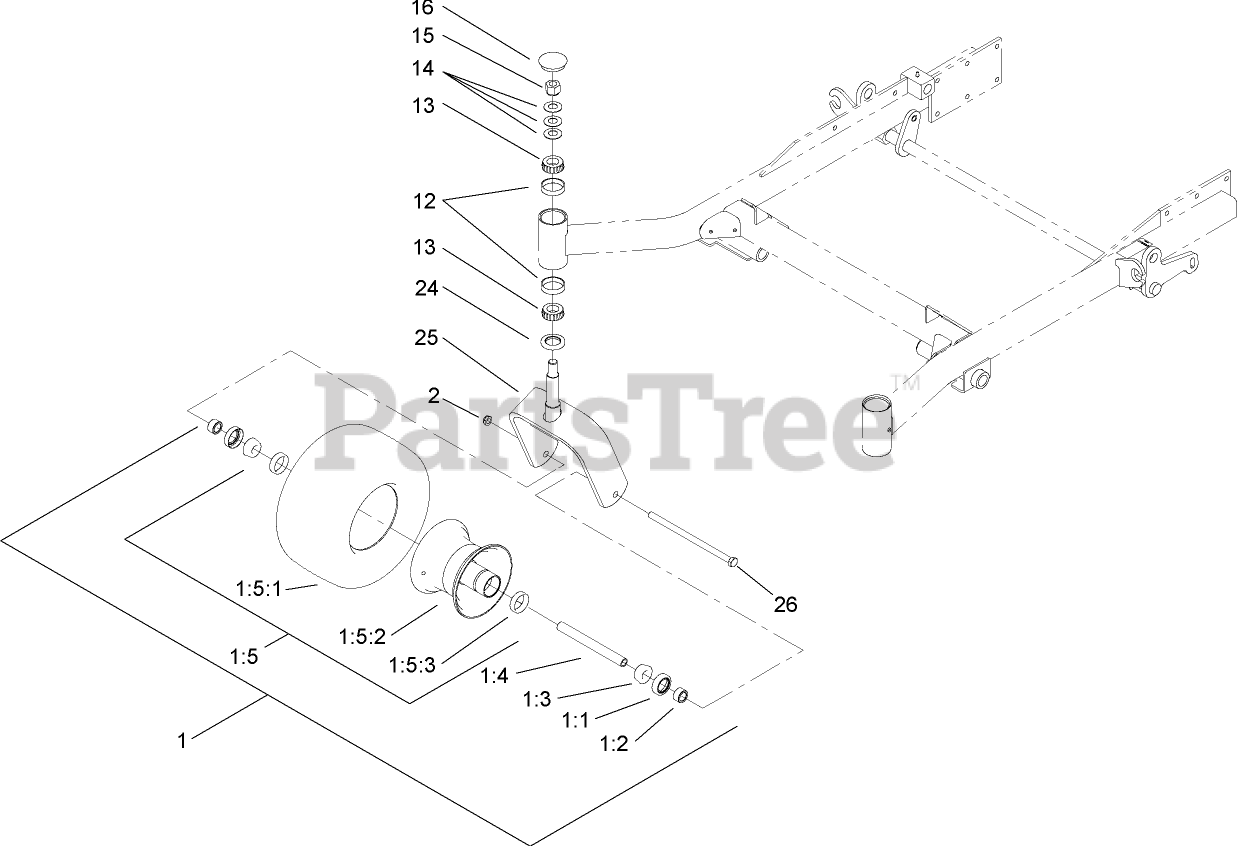

CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 1-644251

CASTER WHEEL ASM

$234.99

$

In Stock, only 1 left!

0

1:1

Toro 1-633580

SEAL-BEARING

$9.49

$

In Stock, Qty 8

0

1:2

Toro 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 14

0

1:3

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 12

0

1:4

Toro 1-633959

SPACER-CASTER, FRONT

$18.99

$

In Stock, only 1 left!

0

1:5

WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

1:5:1

Toro 1-523009

TIRE

$113.99

$

Usually ships in 3-6 days

0

1:5:2

Toro 1-633987

WHEEL

$232.99

$

In Stock, only 1 left!

0

1:5:3

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

2

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

12

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 11

0

13

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 18

0

14

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

15

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 12

0

16

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

24

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

25

Toro 103-1474-01

CASTER-FORK
(Superseded to 116-8888)

$185.99

$

In Stock, Qty 10

0

26

Toro 325-39

Screw-HH

$18.99

$

In Stock, Qty 18

0
