74265 TE (Z 593-D) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) TRACTION FRAME AND FLOOR PAN ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

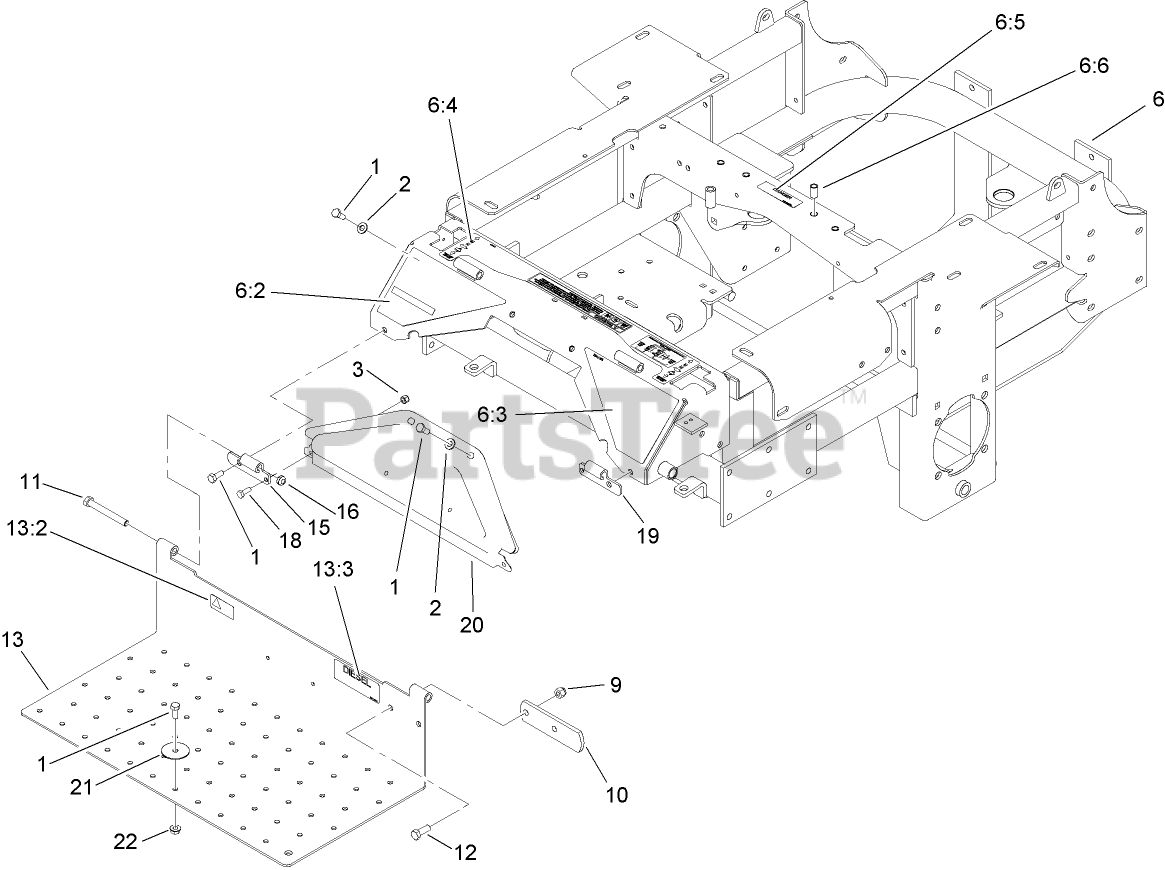

TRACTION FRAME AND FLOOR PAN ASSEMBLY Parts Diagram

  • Title

1

Toro 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

2

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 16

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 107-3499

MAIN FRAME ASM

$

$

Not available

6:2

Toro 107-3963

DECAL-DANGER, LEFT

$103.99

$

Usually ships in 3-6 days

0

6:3

Toro 107-3964

DECAL-WARNING, RIGHT

$103.99

$

Usually ships in 3-6 days

0

6:4

Toro 110-0820

DECAL-CONSOLE, TOP (CE)

$64.99

$

Usually ships in 3-6 days

0

6:5

Toro 98-1977

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

6:6

Toro 32148-11

INSERT-THREADED

$1.99

$

Usually ships in 3-6 days

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 1-633964-03

STOP-BRAKE, PARK

$12.99

$

Usually ships in 3-6 days

0

11

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 110-3857

FLOOR PAN ASM

$232.99

$

Usually ships in 3-6 days

0

13:2

Toro 98-4387

DECAL-PROTECTION, EAR

$7.49

$

In Stock, Qty 8

0

13:3

Toro 107-7666

DECAL-DIESEL

$20.99

$

Usually ships in 3-6 days

0

15

Toro 106-7488-03

Hinge-Floorpan, LH

$22.99

$

Usually ships in 3-6 days

0

16

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

18

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 106-7489-03

Hinge-Floorpan, RH

$22.99

$

Usually ships in 3-6 days

0

20

Toro 106-7498

Pocket

$33.99

$

Usually ships in 3-6 days

0

21

Toro 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

22

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0
