74265 TE (Z 580-D) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 311000001 - 311999999) (2011) HYDRO AND GEARBOX ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

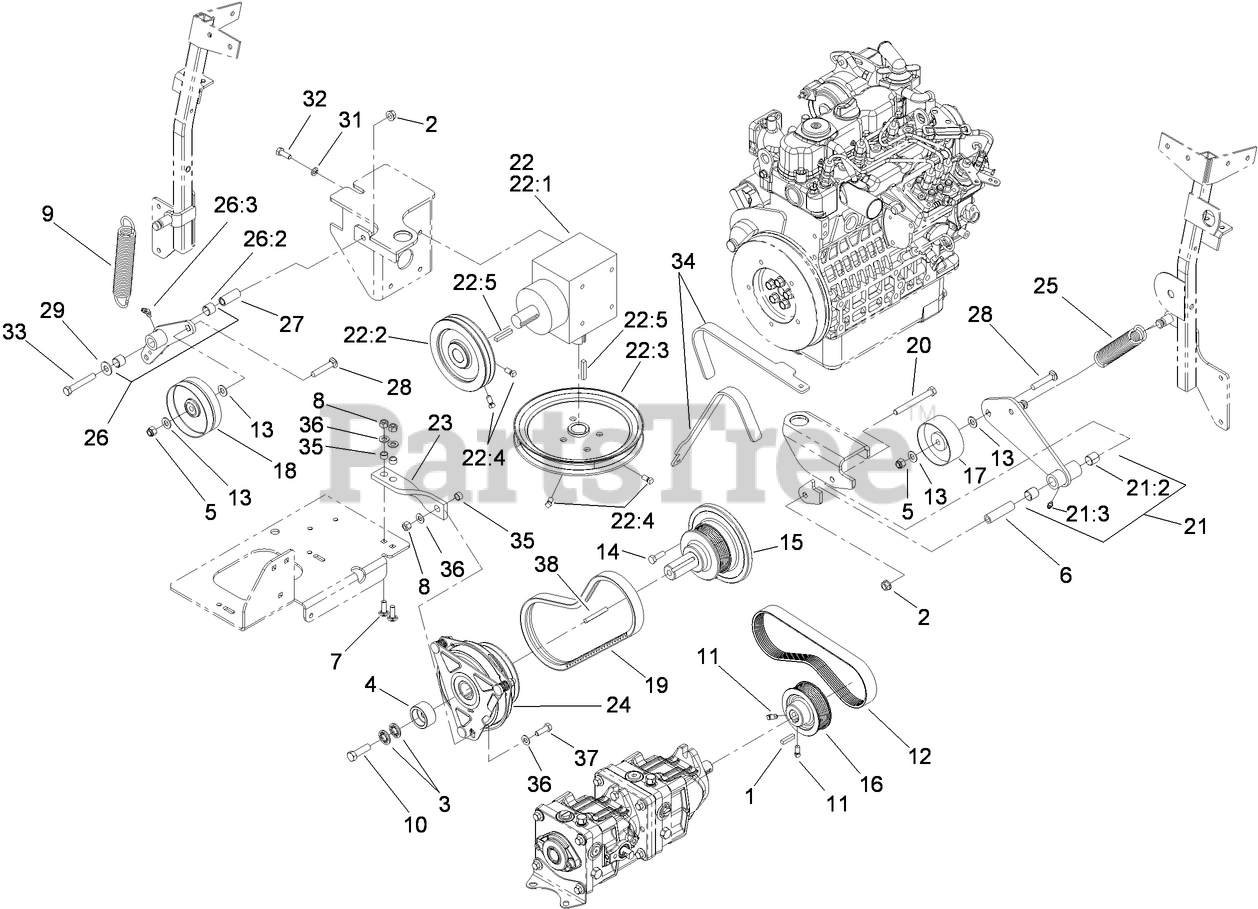

HYDRO AND GEARBOX ASSEMBLY Parts Diagram

  • Title

1

Toro 5-0698

KEY

$2.99

$

In Stock, only 1 left!

0

2

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

3

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

4

Toro 114-8152

RETAINER-CLUTCH

$33.99

$

Usually ships in 3-6 days

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

7

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 119-0392

SPRING-EXTENSION

$47.99

$

In Stock, Qty 5

0

10

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, Qty 9

0

11

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 16

0

12

Toro 107-9910

BELT-V

$63.99

$

In Stock, Qty 10

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 19

0

15

Toro 112-2335

SHAFT-STUB

$412.99

$

Usually ships in 3-6 days

0

16

Toro 108-5976

PULLEY

$210.99

$

Usually ships in 3-6 days

0

17

Toro 108-5910

PULLEY-FLAT

$113.99

$

In Stock, Qty 20+

0

18

Toro 110-0803

PULLEY-FLAT

$44.99

$

In Stock, only 1 left!

0

19

Toro 110-0805

BELT-V

$125.99

$

In Stock, Qty 6

0

20

Toro 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

21

Toro 108-5939

PUMP IDLER ARM ASM

$218.99

$

In Stock, only 3 left!

0

21:2

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

21:3

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

22

GEARBOX ASM

Note: Not serviced separately

$

$

Not available

22:1

Toro 107-9887

GEARBOX-90 DEG

$1538.99

$

Usually ships in 3-6 days

0

22:2

Toro 108-5912

PULLEY

$314.99

$

Usually ships in 3-6 days

0

22:3

Toro 110-0893

PULLEY

$161.99

$

Usually ships in 3-6 days

0

22:4

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 16

0

22:5

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 9

0

23

Toro 112-1781

STRAP-STOP, CLUTCH

$18.99

$

Usually ships in 3-6 days

0

24

Toro 112-2320

CLUTCH-MAGNETIC

$1445.99

$

In Stock, only 2 left!

0

25

Toro 119-0394

SPRING-EXTENSION

$33.99

$

In Stock, only 2 left!

0

26

Toro 112-2354

GEARBOX IDLER ASM (W/BEARINGS)

$147.99

$

Usually ships in 3-6 days

0

26:2

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

26:3

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, Qty 6

0

27

Toro 1-603044

BUSHING

$15.99

$

In Stock, Qty 20+

0

28

Toro 3231-6

SCREW-CARR

$3.49

$

In Stock, Qty 17

0

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

31

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

34

Toro 110-0876

TOOL-ALIGNMENT, PULLEY

$96.99

$

Usually ships in 3-6 days

0

35

Toro 65-9820

SPACER

$2.49

$

Usually ships in 3-6 days

0

36

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

37

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 5-1336

KEY-SQUARE

$11.99

$

In Stock, Qty 5

0
