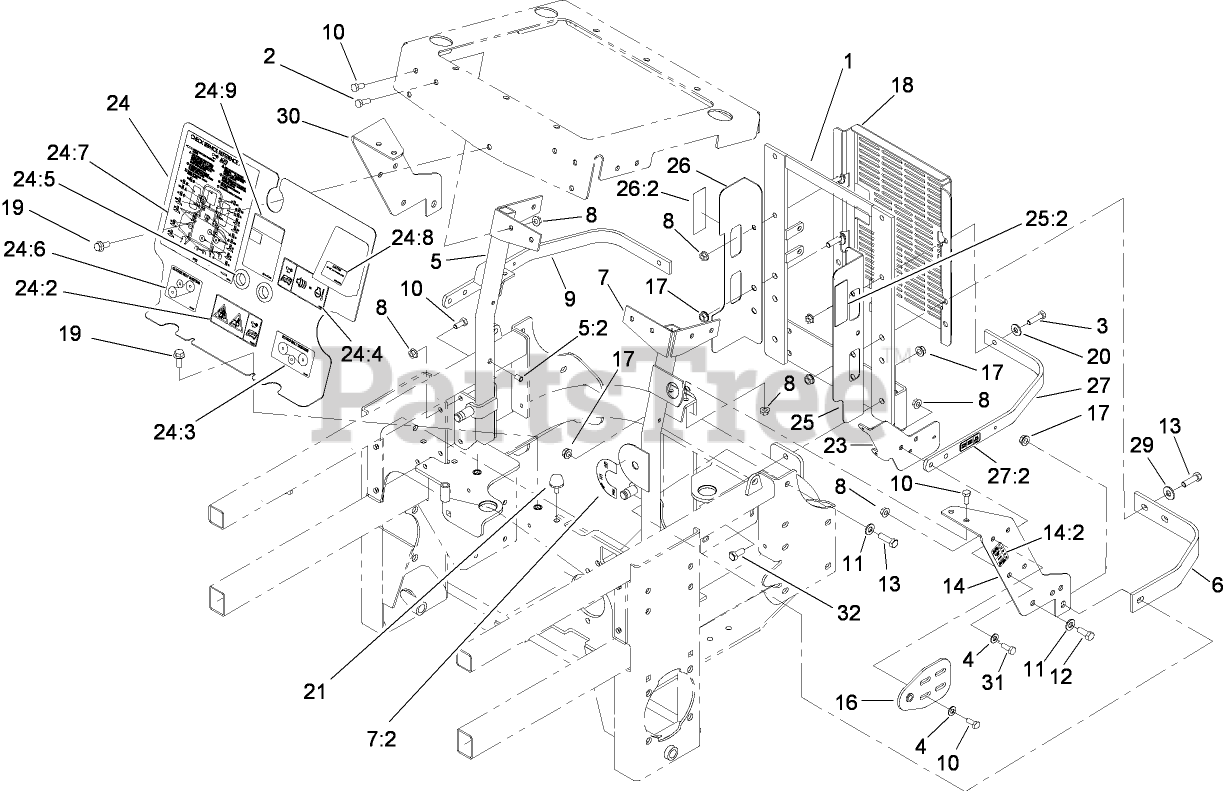

74265 TE (Z 580-D) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ENGINE HOUSING ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

ENGINE HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9934-03

SUPPORT-RADIATOR, REAR

$196.99

$

Usually ships in 3-6 days

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

5

Toro 114-1170

RH RADIATOR BRACE ASM

$214.99

$

Usually ships in 3-6 days

0

5:2

Toro 32148-11

INSERT-THREADED

$1.99

$

Usually ships in 3-6 days

0

6

Toro 103-7623-03

STRAP-GUARD

$42.99

$

Usually ships in 3-6 days

0

7

Toro 110-3870

LH RADIATOR BRACE ASM

$190.99

$

Usually ships in 3-6 days

0

7:2

Toro 107-2114

DECAL-VALVE, FUEL

$30.99

$

Usually ships in 3-6 days

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 114-8223-03

TOP-RIB

$41.99

$

Usually ships in 3-6 days

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 112-8318

LH SUPPORT BRACKET ASM

$

$

Not available

14:2

Toro 117-3865

DECAL-FUSES

$

$

Not available

16

Toro 108-5345-03

PLATE-PIVOT, HOOD

$55.99

$

Usually ships in 3-6 days

0

17

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

18

Toro 112-8302-03

SHIELD-COOLER

$112.99

$

Usually ships in 3-6 days

0

19

Toro 3234-33

SCREW-HHF

$0.99

$

In Stock, Qty 10

0

20

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 13

0

23

Toro 107-8081-03

BRACKET-RELAY/FUSE

$

$

Not available

24

Toro 108-5936

FRONT ENGINE SHIELD ASM

$267.99

$

Usually ships in 3-6 days

0

24:2

Toro 110-3853

DECAL-DANGER, ROTATING DEVICES

$9.99

$

Usually ships in 3-6 days

0

24:3

Toro 108-5955

DECAL-ROUTING, HYDRO BELT

$17.99

$

Usually ships in 3-6 days

0

24:4

Toro 110-3852

DECAL- WARNING, BUZZER

$6.99

$

Usually ships in 3-6 days

0

24:5

Toro 100-3815

GROMMET-RUBBER

$9.99

$

In Stock, only 2 left!

0

24:6

Toro 108-5957

DECAL-ROUTING, CLUTCH BELT

$17.99

$

Usually ships in 3-6 days

0

24:7

Toro 110-3851

DECAL-CHECK, SERVICE

$14.99

$

Usually ships in 3-6 days

0

24:8

Toro 110-0806

DECAL-CAUTION

$8.49

$

Usually ships in 3-6 days

0

24:9

Toro 104-2449

DECAL-COOLANT

$9.99

$

Usually ships in 3-6 days

0

25

Toro 110-0879

GUARD-FAN, LH (CE)

$83.99

$

Usually ships in 3-6 days

0

25:2

Toro 107-7719

DECAL-DANGER

$32.99

$

Usually ships in 3-6 days

0

26

Toro 110-0888

GUARD-FAN, RH (CE)

$83.99

$

Usually ships in 3-6 days

0

26:2

Toro 107-7719

DECAL-DANGER

$32.99

$

Usually ships in 3-6 days

0

27

Toro 110-0890

STRAP-TOP

$

$

Not available

27:2

Toro 110-0305

DECAL-RELAY

$

$

Not available

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Toro 108-5339-03

BRACKET-SUPPORT, RH

$40.99

$

Usually ships in 3-6 days

0

31

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0
