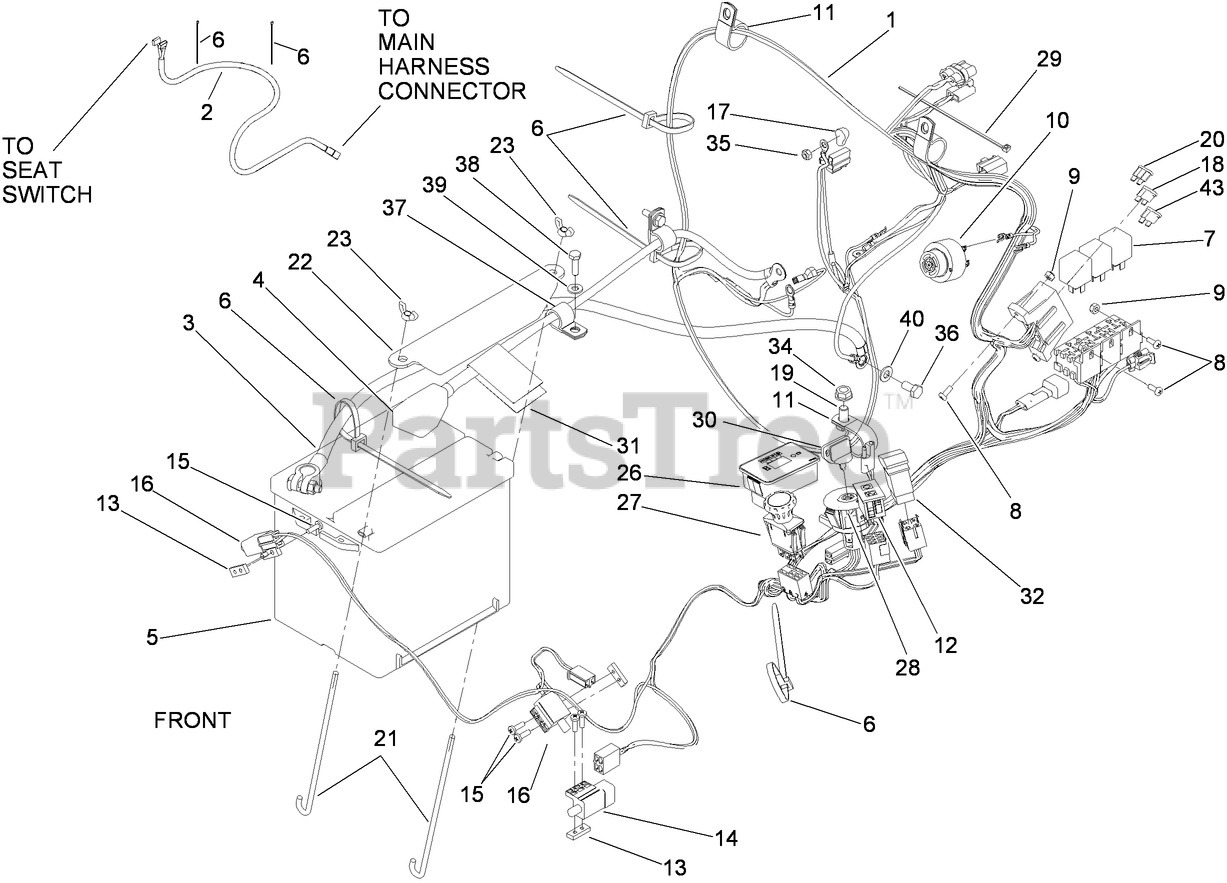

74265 TE (Z 580-D) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 290000001 - 290999999) (2009) ELECTRICAL ASSEMBLY Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-3802

HARNESS-WIRE

$

$

Not available

2

Toro 103-1227

HARNESS-WIRING, SEAT

$23.99

$

Usually ships in 3-6 days

0

3

Toro 110-0303

CABLE-BATTERY, NEGATIVE

$94.99

$

Usually ships in 3-6 days

0

4

Toro 110-0304

CABLE-BATTERY, POSITIVE

$96.99

$

Usually ships in 3-6 days

0

5

Toro 106-5187

BATTERY-DRY

$210.99

$

Usually ships in 3-6 days

0

6

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

7

Toro 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

8

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 103-0205

ALARM-TONE, DUAL

$67.99

$

In Stock, only 2 left!

0

11

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

12

Toro 100-8071

LAMP-WARNING

$41.99

$

Usually ships in 3-6 days

0

13

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

14

Toro 1-633111

SWITCH

$21.99

$

In Stock, Qty 19

0

15

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Toro 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

17

Toro 1-643178

CAP-INSULATOR, RED

$5.49

$

Usually ships in 3-6 days

0

18

Toro 103-1368

FUSE-40 AMP

$5.49

$

Usually ships in 3-6 days

0

19

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

20

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

21

Toro 103-1312

Bolt-Holddown

$6.49

$

Usually ships in 3-6 days

0

22

Toro 103-1311-03

HOLDDOWN-BATTERY

$27.99

$

Usually ships in 3-6 days

0

23

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

26

Toro 112-8650

HOUR METER ASM
(Superseded to 116-5609)

$149.99

$

In Stock, only 1 left!

0

27

Toro 116-0124

SWITCH-PTO, 10 AMP
(Superseded to 135-3653)

$68.99

$

In Stock, Qty 9

0

28

Toro 116-0050

SWITCH-IGNITION

$38.99

$

In Stock, only 1 left!

0

29

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

30

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

31

Toro 107-9309

DECAL-INSTRUCTIONS, CHARGING

$21.99

$

Usually ships in 3-6 days

0

32

Toro 110-0811

SWITCH-ROCKER

$70.99

$

Usually ships in 3-6 days

0

34

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

35

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

36

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

37

Toro 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

38

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0
