74265 TE (7000) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) Piston and Crankshaft Assembly Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

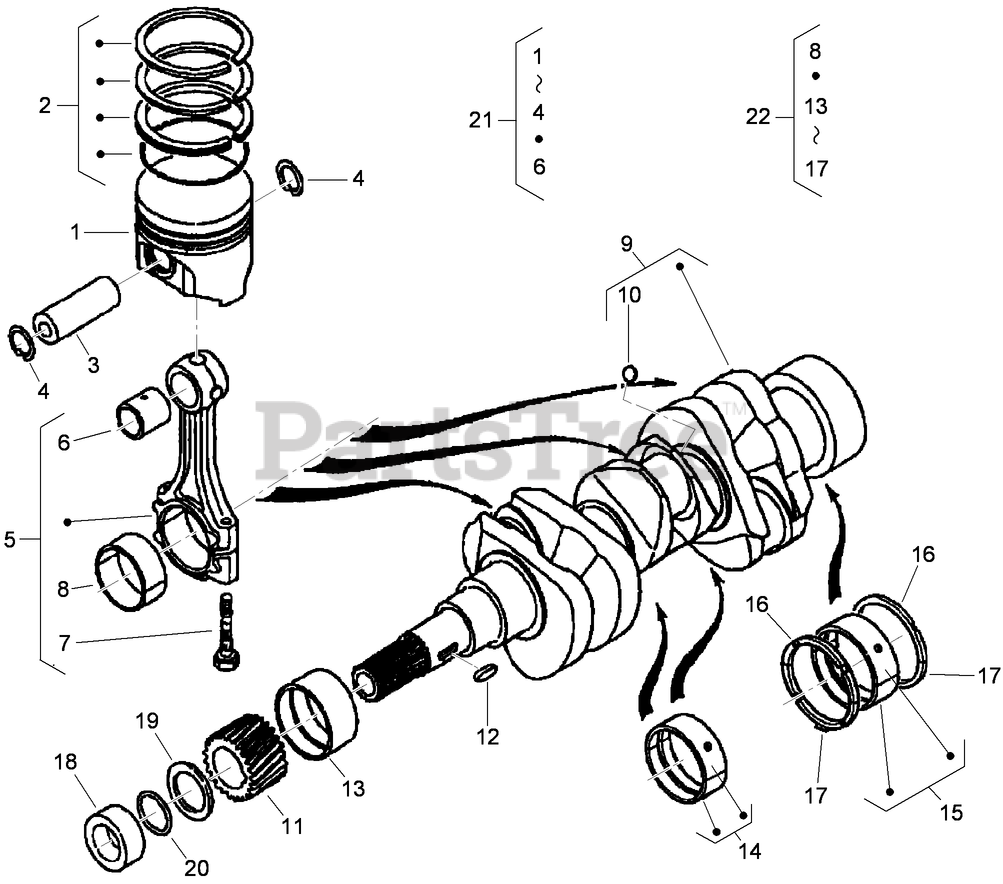

Piston and Crankshaft Assembly Parts Diagram

  • Title

1

Toro 117-0306

See Supercession: 130-8100
(Superseded to 130-8100)

$502.99

$

Usually ships in 3-6 days

0

1

Toro 117-0307

See Supercession: 130-1536
(Superseded to 130-1539)

$588.99

$

Usually ships in 3-6 days

0

2

Toro 112-2501

PISTON RING ASM (STD)

$373.99

$

Usually ships in 3-6 days

0

2

Toro 112-2502

PISTON RING ASM (+.25MM)

$370.99

$

Usually ships in 3-6 days

0

3

Toro 110-3734

PIN-PISTON

$32.99

$

Usually ships in 3-6 days

0

4

Toro 100-1835

CIRCLIP-INTERNAL

$3.49

$

Usually ships in 3-6 days

0

5

Toro 110-3735

See Supercession: 125-9070
(Superseded to 125-9070)

$646.99

$

Usually ships in 3-6 days

0

6

Toro 110-3736

BUSHING-PIN, PISTON

$27.99

$

Usually ships in 3-6 days

0

7

Toro 100-1999

BOLT-ROD, CONNECTING

$21.99

$

Usually ships in 3-6 days

0

8

Toro 100-1942

See Supercession: 121-3849
(Superseded to 121-3849)

$63.99

$

Usually ships in 3-6 days

0

8

Toro 100-1943

See Supercession: 121-2420
(Superseded to 121-2420)

$58.99

$

Usually ships in 3-6 days

0

8

Toro 100-2000

METAL-CRANKPIN (STD)

$56.99

$

Usually ships in 3-6 days

0

9

Toro 117-0308

CRANKSHAFT

$3032.99

$

Usually ships in 3-6 days

0

10

Toro 100-1791

BALL

$2.49

$

Usually ships in 3-6 days

0

11

Toro 100-1891

GEAR-CRANKSHAFT

$113.99

$

Usually ships in 3-6 days

0

12

Toro 100-1752

KEY-FEATHER

$4.49

$

Usually ships in 3-6 days

0

13

Toro 110-3738

METAL-CRANKSHAFT (STD)

$46.99

$

Usually ships in 3-6 days

0

13

Toro 110-3739

METAL-CRANKSHAFT (-.0.20MM)
(Superseded to 121-2424)

$93.99

$

Usually ships in 3-6 days

0

13

Toro 110-3740

METAL-CRANKSHAFT (-0.40MM)

$42.99

$

Usually ships in 3-6 days

0

14

Toro 110-3741

CRANKSHAFT METAL ASM (STD)

$76.99

$

Usually ships in 3-6 days

0

14

Toro 110-3742

CRANKSHAFT METAL ASM (-0.20MM)
(Superseded to 125-9083)

$70.99

$

Usually ships in 3-6 days

0

14

Toro 110-3743

CRANKSHAFT METAL ASM (-0.40MM)

$76.99

$

Usually ships in 3-6 days

0

15

Toro 110-3744

See Supercession: 125-9066
(Superseded to 125-9066)

$93.99

$

Usually ships in 3-6 days

0

15

Toro 110-3745

CRANKSHAFT METAL ASM (-0.20MM)

$76.99

$

Usually ships in 3-6 days

0

15

Toro 110-3746

CRANKSHAFT METAL ASM (-0.40MM)

$76.99

$

Usually ships in 3-6 days

0

16

Toro 100-1836

METAL-SIDE (STD)

$17.99

$

Usually ships in 3-6 days

0

16

Toro 100-1838

METAL-SIDE (+0.20MM)

$

$

Not available

16

Toro 100-1839

METAL-SIDE (+0.40MM)

$7.49

$

Usually ships in 3-6 days

0

17

Toro 117-0309

METAL-SIDE (STD)

$27.99

$

Usually ships in 3-6 days

0

17

Toro 117-0310

METAL-SIDE (+0.20MM)

$39.99

$

Usually ships in 3-6 days

0

17

Toro 117-0311

METAL-SIDE (+0.40MM)

$39.99

$

Usually ships in 3-6 days

0

18

Toro 100-1890

COLLAR-CRANKSHAFT

$84.99

$

Usually ships in 3-6 days

0

19

Toro 100-1974

SLINGER-OIL

$3.99

$

Usually ships in 3-6 days

0

20

Toro 100-2209

O-RING

$11.99

$

Usually ships in 3-6 days

0

21

Toro 117-0328

PISTON KIT (STD)

$

$

Not available

21

Toro 117-0329

See Supercession: 127-3862
(Superseded to 127-3862)

$632.99

$

Usually ships in 3-6 days

0

22

Toro 110-3749

ENGINE METAL KIT

$498.99

$

Usually ships in 3-6 days

0

22

Toro 110-3750

ENGINE METAL KIT

$496.99

$

Usually ships in 3-6 days

0

22

Toro 110-3751

ENGINE METAL KIT

$505.99

$

Usually ships in 3-6 days

0
