74265 TE (7000) - Toro 152cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 313000001 - 313999999) (2013) Main Bearing Case Assembly Parts Diagram

152cm Z Master Zero-Turn Mower, Side-Discharge Deck

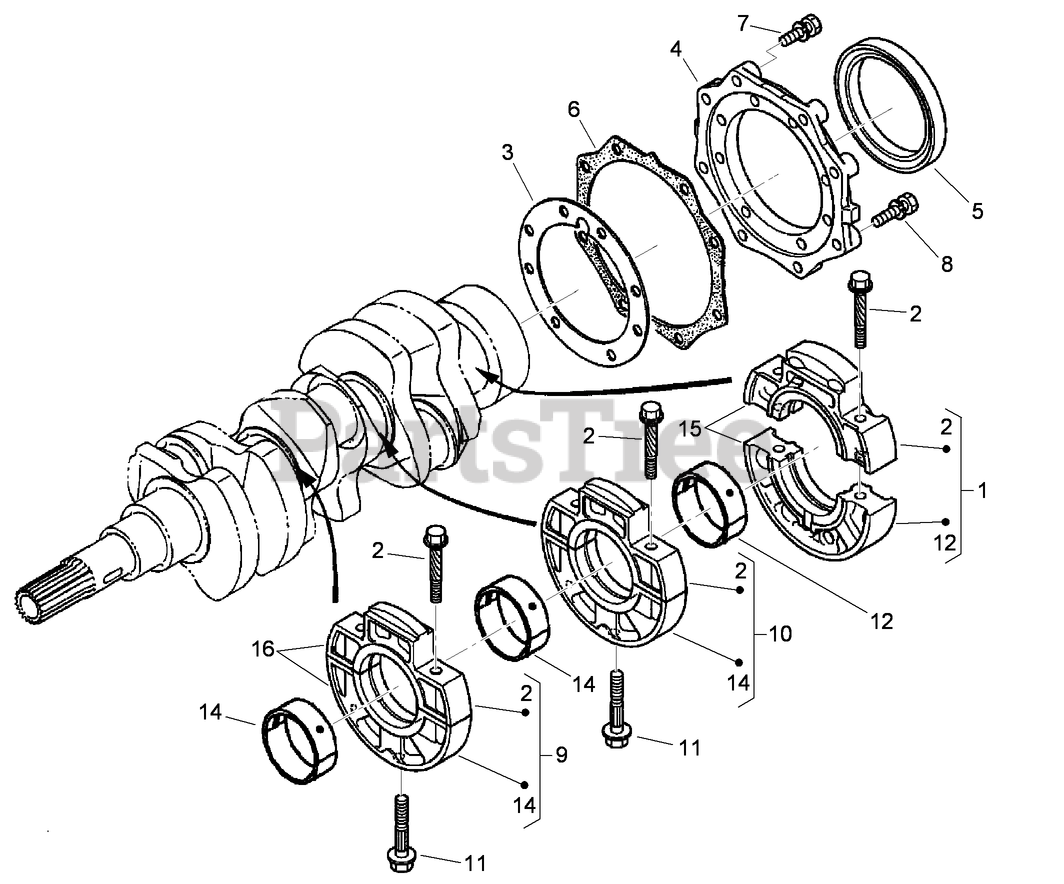

Main Bearing Case Assembly Parts Diagram

  • Title

1

Toro 112-2494

See Supercession: 121-2426
(Superseded to 121-2426)

$208.99

$

Usually ships in 3-6 days

0

2

Toro 110-3723

BOLT-CASE, BEARING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 117-0304

GASKET-CASE, BEARING

$12.99

$

Usually ships in 3-6 days

0

4

Toro 112-8334

COVER-CASE, BEARING

$151.99

$

Usually ships in 3-6 days

0

5

Toro 110-3724

SEAL-OIL

$64.99

$

Usually ships in 3-6 days

0

6

Toro 100-1876

GASKET-COVER, CASE

$17.99

$

Usually ships in 3-6 days

0

7

Toro 98-7568

BOLT

$1.49

$

Usually ships in 3-6 days

0

8

Toro 100-1750

BOLT

$2.49

$

Usually ships in 3-6 days

0

9

Toro 112-2495

MAIN CASE BEARING ASM

$272.99

$

Usually ships in 3-6 days

0

10

Toro 112-2496

MAIN CASE BEARING ASM

$272.99

$

Usually ships in 3-6 days

0

11

Toro 100-1874

BOLT-CASE, BEARING

$14.99

$

Usually ships in 3-6 days

0

12

Toro 110-3744

See Supercession: 125-9066
(Superseded to 125-9066)

$93.99

$

Usually ships in 3-6 days

0

12

Toro 110-3745

CRANKSHAFT METAL ASM (-0.20MM)

$76.99

$

Usually ships in 3-6 days

0

12

Toro 110-3746

CRANKSHAFT METAL ASM (-0.40MM)

$76.99

$

Usually ships in 3-6 days

0

14

Toro 110-3741

CRANKSHAFT METAL ASM (STD)

$76.99

$

Usually ships in 3-6 days

0

14

Toro 110-3742

CRANKSHAFT METAL ASM (-0.20MM)
(Superseded to 125-9083)

$70.99

$

Usually ships in 3-6 days

0

14

Toro 110-3743

CRANKSHAFT METAL ASM (-0.40MM)

$76.99

$

Usually ships in 3-6 days

0

15

Toro 110-3722

MAIN BEARING CASE ASM

$252.99

$

Usually ships in 3-6 days

0

16

Toro 110-3725

MAIN BEARING CASE ASM

$310.99

$

Usually ships in 3-6 days

0
