74264 TE (Z 593-D) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) WATER FLANGE, PUMP, PIPE AND THERMOSTAT ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

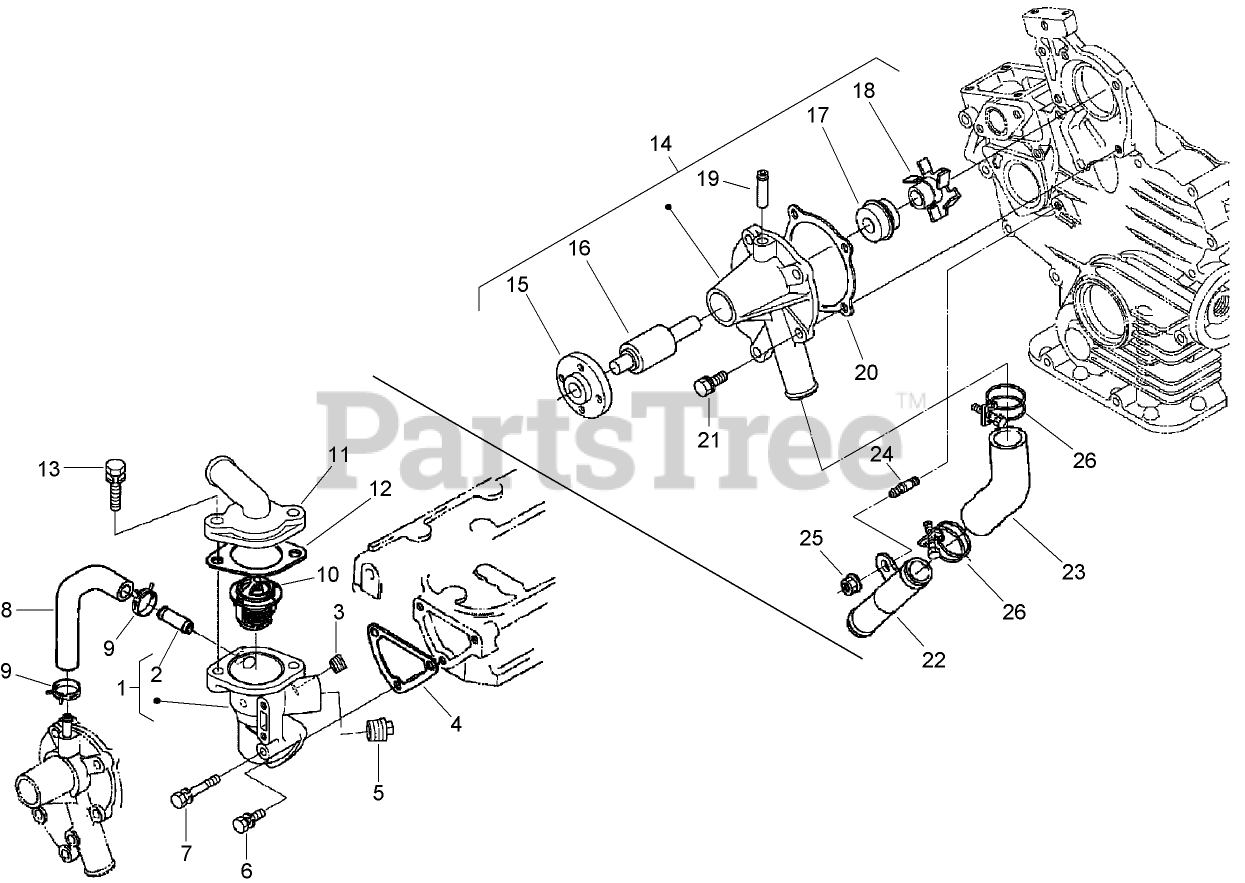

WATER FLANGE, PUMP, PIPE AND THERMOSTAT ASSEMBLY Parts Diagram

  • Title
1

Toro 110-3819

WATER FLANGE ASM

$250.99

$

Usually ships in 3-6 days

0

2

Toro 98-9580

PIPE-RETURN, WATER

$6.49

$

Usually ships in 3-6 days

0

3

$6.99

$

Usually ships in 3-6 days

0

4

Toro 110-3820

GASKET-FLANGE, WATER

$3.99

$

Usually ships in 3-6 days

0

5

$12.99

$

Usually ships in 3-6 days

0

6

$1.49

$

Usually ships in 3-6 days

0

7

Toro 98-9355

BOLT
(Superseded to 105-3797)

$2.49

$

Usually ships in 3-6 days

0

8

Toro 110-3822

PIPE-RETURN, WATER

$37.99

$

In Stock, only 2 left!

0

9

Toro 98-9579

BAND-PIPE

$6.99

$

Usually ships in 3-6 days

0

10

Toro 98-7778

THERMOSTAT ASM

$85.99

$

Usually ships in 3-6 days

0

11

Toro 110-3823

COVER-THERMOSTAT

$102.99

$

Usually ships in 3-6 days

0

12

Toro 98-7776

GASKET
(Superseded to 105-3748)

$5.99

$

In Stock, only 3 left!

0

13

$1.99

$

Usually ships in 3-6 days

0

14

Toro 110-3824

WATER PUMP ASM

$594.99

$

Usually ships in 3-6 days

0

15

Toro 100-1933

FLANGE-PUMP, WATER

$13.99

$

Usually ships in 3-6 days

0

16

Toro 100-1934

BEARING-BALL

$96.99

$

Usually ships in 3-6 days

0

17

Toro 99-3518

WATER PUMP SEAL ASM

$73.99

$

Usually ships in 3-6 days

0

18

Toro 110-3825

IMPELLER-PUMP, WATER

$

$

Not available

19

Toro 100-1932

PIPE-RETURN, WATER

$12.99

$

In Stock, only 1 left!

0

20

Toro 110-3826

GASKET-PUMP, WATER
(Superseded to 117-0330)

$17.99

$

In Stock, only 1 left!

0

21

$2.49

$

Usually ships in 3-6 days

0

22

Toro 100-1918

PIPE-WATER

$55.99

$

Usually ships in 3-6 days

0

23

Toro 110-3827

PIPE-WATER

$18.99

$

In Stock, only 1 left!

0

24

$4.49

$

Usually ships in 3-6 days

0

25

Toro 100-2203

NUT-FLANGE

$1.99

$

Usually ships in 3-6 days

0

26

Toro 110-3828

BAND-PIPE

$12.99

$

Usually ships in 3-6 days

0
