74264 TE (Z 593-D) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) HYDRO AND GEARBOX ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

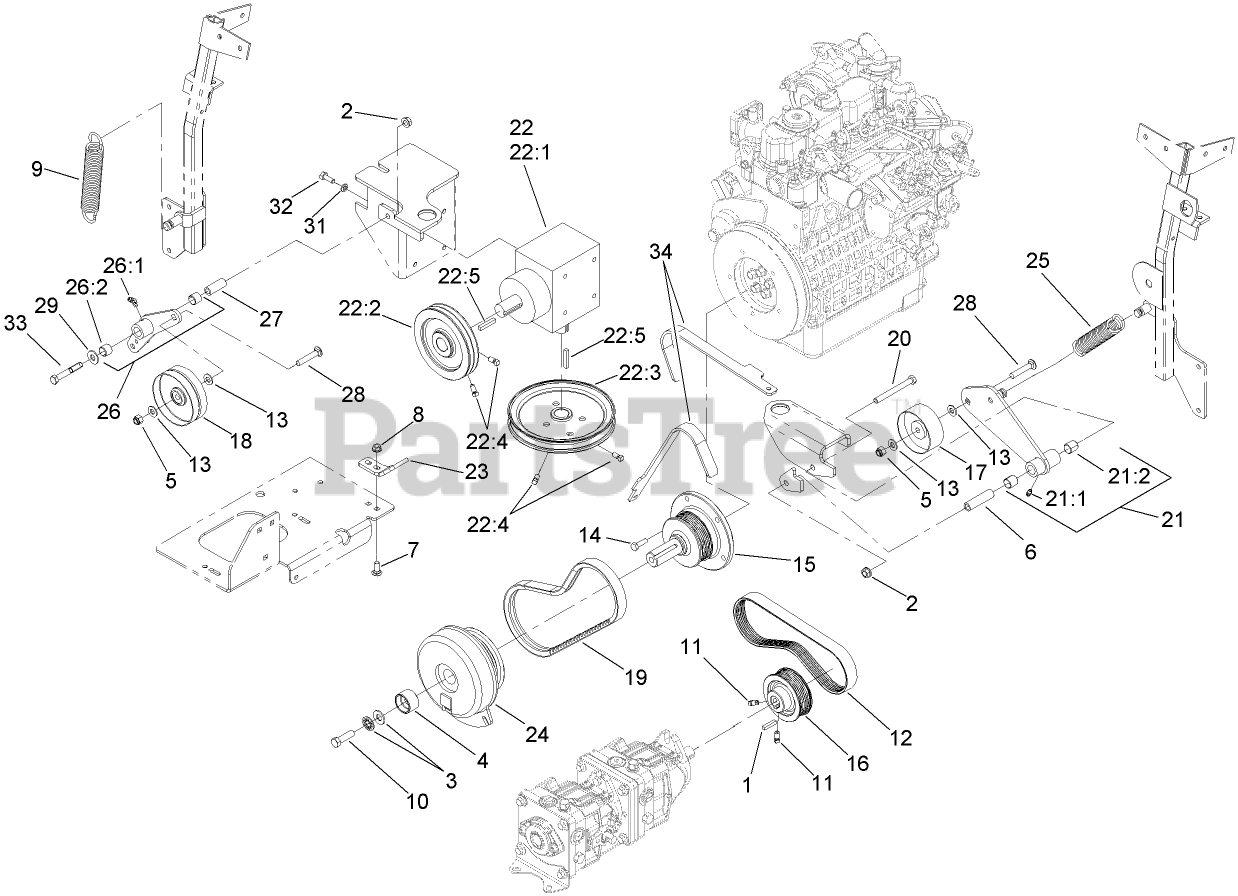

HYDRO AND GEARBOX ASSEMBLY Parts Diagram

  • Title

1

Toro 5-0698

KEY

$2.99

$

In Stock, only 1 left!

0

2

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

3

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

4

Toro 110-0854

RETAINER-CLUTCH

$40.99

$

Usually ships in 3-6 days

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

6

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 18

0

7

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

8

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

9

Toro 110-0818

SPRING-EXTENSION
(Superseded to 119-0392)

$45.99

$

In Stock, only 3 left!

0

10

Toro 3212-6

SCREW-HH

$2.49

$

In Stock, only 1 left!

0

11

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

12

Toro 107-9910

BELT-V

$60.99

$

Usually ships in 3-6 days

0

13

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

14

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

15

Toro 108-5975

SHAFT-STUB
(Superseded to 110-6248)

$627.99

$

Usually ships in 3-6 days

0

16

Toro 108-5976

PULLEY

$199.99

$

In Stock, only 1 left!

0

17

Toro 108-5910

PULLEY-FLAT

$107.99

$

Usually ships in 3-6 days

0

18

Toro 110-0803

PULLEY-FLAT

$42.99

$

In Stock, only 2 left!

0

19

Toro 110-0805

BELT-V

$118.99

$

In Stock, only 1 left!

0

20

Toro 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

21

Toro 108-5939

PUMP IDLER ARM ASM

$206.99

$

In Stock, only 1 left!

0

21:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

21:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

22

Gearbox ASM

Note: Not serviced separately

$

$

Not available

22:1

Toro 107-9887

GEARBOX-90 DEG

$1452.99

$

Usually ships in 3-6 days

0

22:2

Toro 108-5912

PULLEY

$296.99

$

Usually ships in 3-6 days

0

22:3

Toro 110-0893

PULLEY

$152.99

$

Usually ships in 3-6 days

0

22:4

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, Qty 20+

0

22:5

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 10

0

23

Toro 110-0815

BRACKET-CLUTCH STOP

$36.99

$

Usually ships in 3-6 days

0

24

Toro 110-0862

CLUTCH-ELECTROMAGNETIC
(Superseded to 114-8150)

$1478.99

$

Usually ships in 3-6 days

0

25

Toro 108-5985

SPRING-EXTENSION
(Superseded to 119-0394)

$32.99

$

In Stock, only 1 left!

0

26

Toro 112-2354

GEARBOX IDLER ASM (W/BEARINGS)

$139.99

$

Usually ships in 3-6 days

0

26:1

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

26:2

Toro 103-4681

SLEEVE-BEARING

$5.49

$

In Stock, Qty 20+

0

27

Toro 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

28

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

29

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

31

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

33

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

34

Toro 110-0876

TOOL-ALIGNMENT, PULLEY

$91.99

$

Usually ships in 3-6 days

0
