74264 TE (Z 593-D) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 260000001 - 260999999) (2006) INJECTION PUMP AND GOVERNOR ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

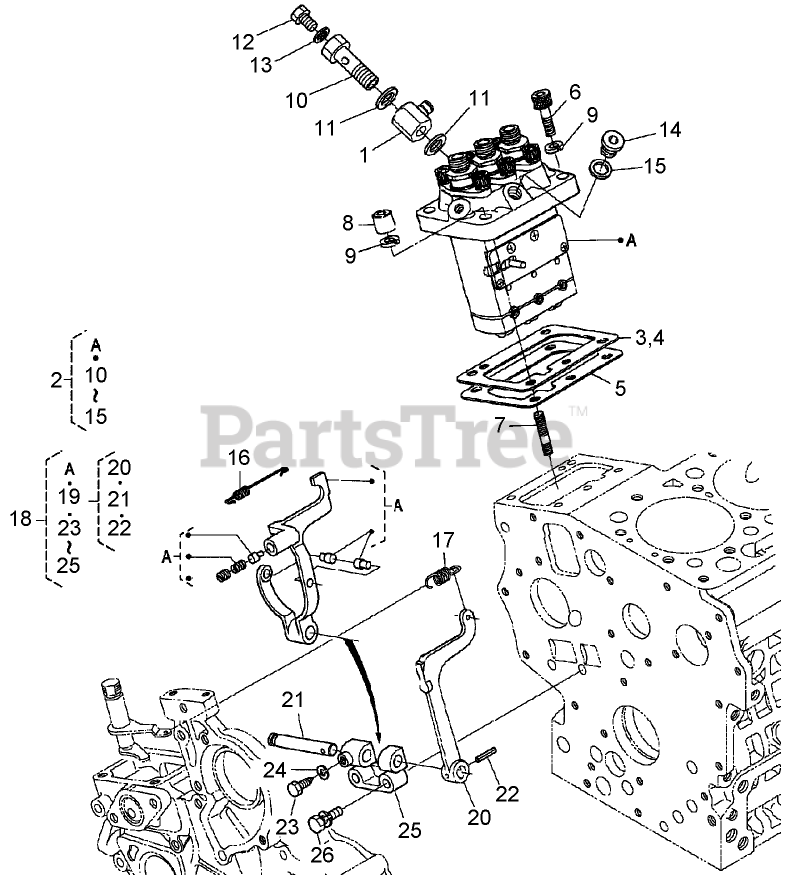

INJECTION PUMP AND GOVERNOR ASSEMBLY Parts Diagram

  • Title
1

$39.99

$

Usually ships in 3-6 days

0

2

Toro 110-3765

INJECTION PUMP ASM

$5481.99

$

Usually ships in 3-6 days

0

3

Toro 100-1951

SHIM-PUMP, INJECTION
(Superseded to 98-9456)

$10.99

$

In Stock, only 1 left!

0

4

Toro 100-1952

SHIM-PUMP, INJECTION
(Superseded to 98-9457)

$12.99

$

In Stock, only 1 left!

0

5

Toro 98-9458

SHIM-INJECTION (0.30MM)

$18.99

$

In Stock, only 1 left!

0

6

Toro 98-9361

BOLT-HSH

$1.49

$

Usually ships in 3-6 days

0

7

$1.99

$

Usually ships in 3-6 days

0

8

Toro 98-9440

NUT-CAP

$28.99

$

Usually ships in 3-6 days

0

9

Toro 98-7515

WASHER-SPRING
(Superseded to 98-7699)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 100-1896

SCREW-HOLLOW

$44.99

$

Usually ships in 3-6 days

0

11

Toro 98-9445

GASKET

$2.99

$

In Stock, only 3 left!

0

12

Toro 98-9430

SCREW

$26.99

$

In Stock, only 1 left!

0

13

Toro 98-9446

GASKET

$3.99

$

Usually ships in 3-6 days

0

14

$19.99

$

Usually ships in 3-6 days

0

15

Toro 98-9451

GASKET

$2.99

$

Usually ships in 3-6 days

0

16

Toro 110-3766

SPRING-START

$29.99

$

In Stock, Qty 7

0

17

Toro 110-3767

SPRING-GOVERNOR

$14.99

$

In Stock, only 1 left!

0

18

Toro 110-3768

FORK LEVER ASM

$

$

Not available

19

Toro 100-1905

FORK LEVER ASM

$33.99

$

Usually ships in 3-6 days

0

20

Toro 100-1907

LEVER-FORK

$30.99

$

Usually ships in 3-6 days

0

21

Toro 100-1908

SHAFT-LEVER, FORK

$25.99

$

Usually ships in 3-6 days

0

22

Toro 100-1751

PIN-SPRING

$2.49

$

Usually ships in 3-6 days

0

23

$13.99

$

Usually ships in 3-6 days

0

24

Toro 100-1783

OBS WASHER-SPRING
(Superseded to 127-0408)

$0.99

$

Usually ships in 3-6 days

0

25

Toro 100-1909

HOLDER-LEVER, FORK

$14.99

$

Usually ships in 3-6 days

0

26

$2.49

$

Usually ships in 3-6 days

0
