74264 TE (Z 580-D) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 280000001 - 280999999) (2008) FUEL SYSTEM AND THROTTLE CONTROL ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

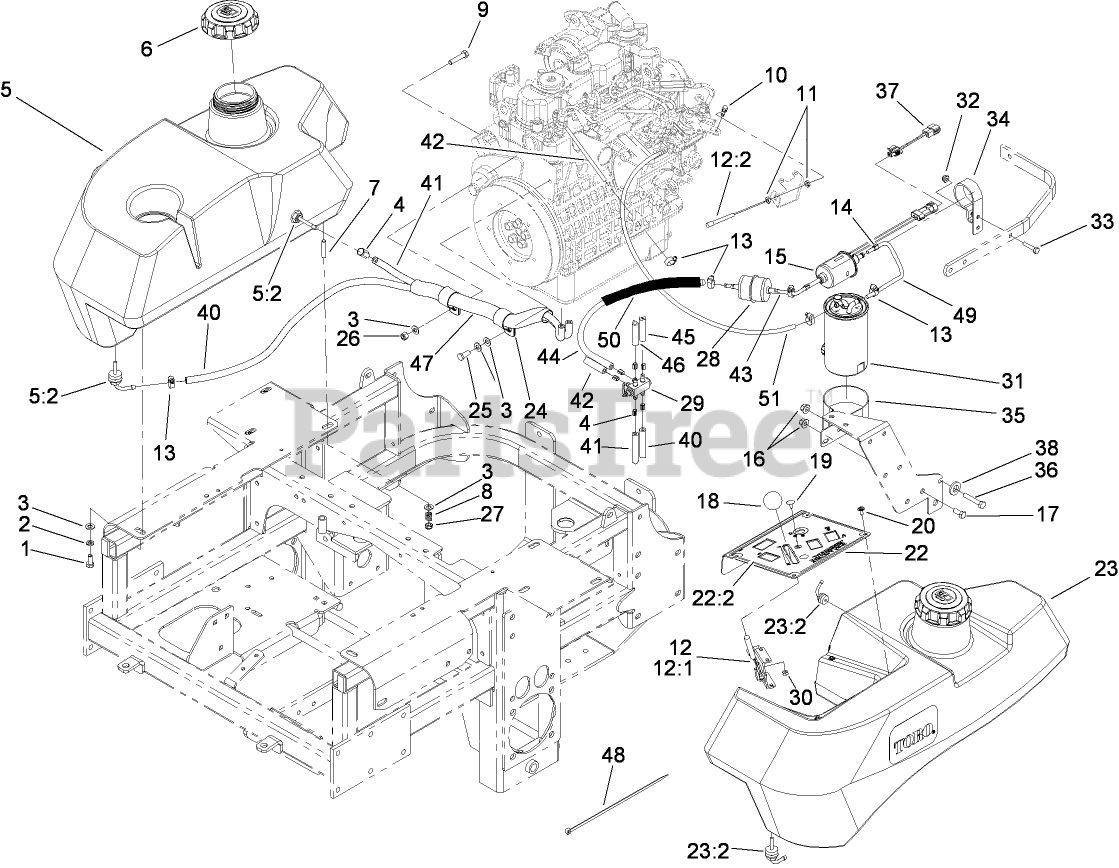

FUEL SYSTEM AND THROTTLE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 1-643293

CLAMP-HOSE, FUEL

$6.49

$

In Stock, Qty 6

0

5

Toro 114-8221

RH FUEL TANK ASM

$687.99

$

Usually ships in 3-6 days

0

5:2

Toro 103-2615

Fitting-Fuel, Bulkhead

$39.99

$

In Stock, only 1 left!

0

6

Toro 110-0897

CAP-FUEL, DIESEL
(Superseded to 114-5062)

$32.99

$

In Stock, only 1 left!

0

7

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

8

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

Usually ships in 3-6 days

0

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 108-5928

SWIVEL-STOP, CABLE

$15.99

$

In Stock, only 1 left!

0

11

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

12

Toro 108-5927

CABLE-CONTROL, THROTTLE

$94.99

$

Usually ships in 3-6 days

0

12:1

Toro 112-2333

LEVER-CABLE, THROTTLE

$

$

Currently unavailable

12:2

Toro 108-6337

CABLE-THROTTLE

$30.99

$

Usually ships in 3-6 days

0

13

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

14

Toro 1-643277

CLAMP-HOSE, FUEL

$4.99

$

In Stock, only 3 left!

0

15

Toro 110-8806

PUMP-FUEL
(Superseded to 144-4020)

$204.99

$

In Stock, only 2 left!

0

16

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 8

0

19

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

20

Toro 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 11

0

22

Toro 112-2388

CONTROL PANEL ASM

$

$

Not available

22:2

Toro 112-2389

DECAL-PANEL, CONTROL

$56.99

$

Usually ships in 3-6 days

0

23

Toro 114-8222

LH FUEL TANK ASM

$687.99

$

Usually ships in 3-6 days

0

23:2

Toro 103-2615

Fitting-Fuel, Bulkhead

$39.99

$

In Stock, only 1 left!

0

24

Toro 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

25

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

27

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

28

Toro 112-7836

FILTER-INLINE

$14.99

$

In Stock, Qty 20+

0

29

Toro 1-643234

VALVE-FUEL, DUAL FLOW

$217.99

$

In Stock, only 1 left!

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 112-9188

ELEMENT-FILTER, FUEL/WATER

$67.99

$

In Stock, only 2 left!

0

32

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

33

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 10

0

34

Toro 110-8817

BRACKET-PUMP, FUEL

$25.99

$

Usually ships in 3-6 days

0

35

Toro 110-8807

BRACKET-FILTER, FUEL

$104.99

$

Usually ships in 3-6 days

0

36

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

37

Toro 110-8808

HARNESS-WIRE

$39.99

$

Usually ships in 3-6 days

0

38

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

40

Toro 108-5376

HOSE-FUEL

$42.99

$

In Stock, only 1 left!

0

41

Toro 109-0301

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

42

Toro 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 2 left!

0

43

Toro 108-3283

HOSE-FUEL

$4.99

$

Usually ships in 3-6 days

0

44

Toro 109-0303

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

45

Toro 109-0275

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

46

Toro 109-0297

HOSE-FUEL

$7.99

$

In Stock, only 1 left!

0

47

Toro 108-5377

SLEEVE-FABRIC

$16.99

$

Usually ships in 3-6 days

0

48

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

49

Toro 110-4124

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

50

Toro 114-8224

CONDUIT-FUEL LINE

$5.49

$

Usually ships in 3-6 days

0

51

Toro 110-4105

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0
