74263 CP (Z 560) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) SEAT AND ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

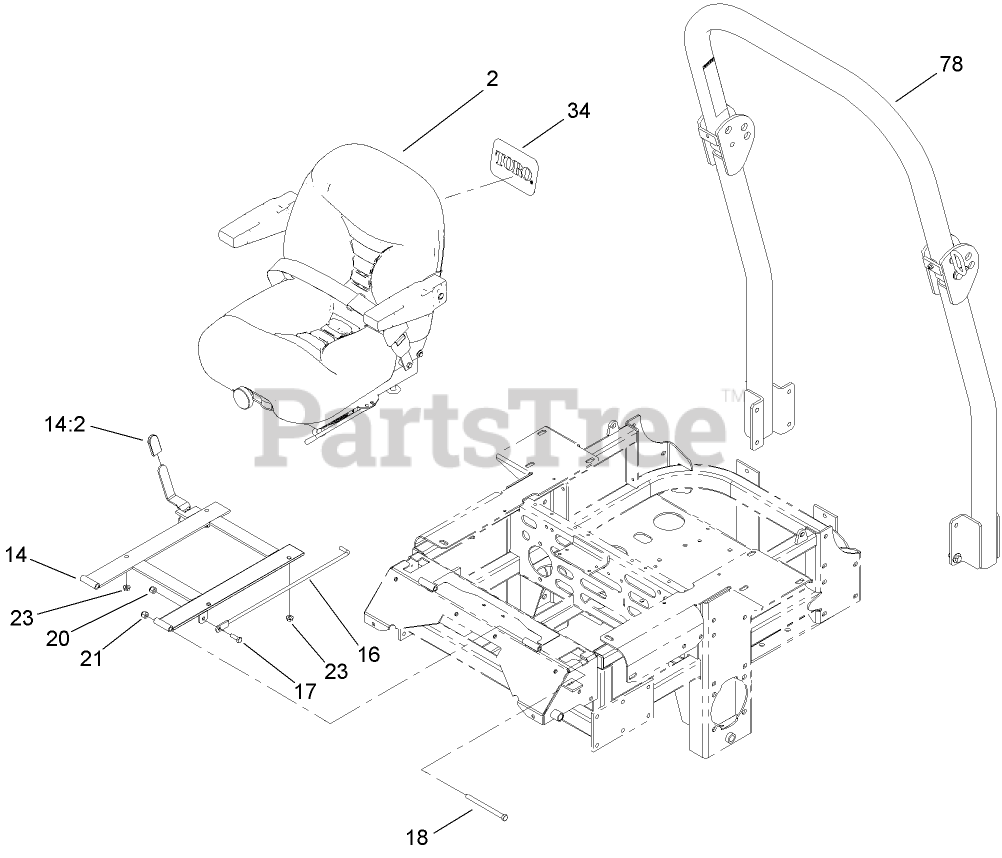

SEAT AND ROLL-OVER PROTECTION SYSTEM ASSEMBLY Parts Diagram

  • Title
2

Toro 110-0838

DELUXE SEAT ASM

$2338.99

$

Usually ships in 3-6 days

0

14

Toro 110-5850

SEAT FRAME AND LATCH ASM

$101.99

$

Usually ships in 3-6 days

0

14:2

Toro 103-4434

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

16

Toro 1-633293

ROD-HOLDUP, SEAT

$14.99

$

Usually ships in 3-6 days

0

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

21

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 99-4693

DECAL

$22.99

$

In Stock, only 2 left!

0

78

Toro 108-1097

ROPS ASM

$944.99

$

Usually ships in 3-6 days

0
