74262 CP (Z 560) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) FUEL SYSTEM AND THROTTLE CONTROL ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

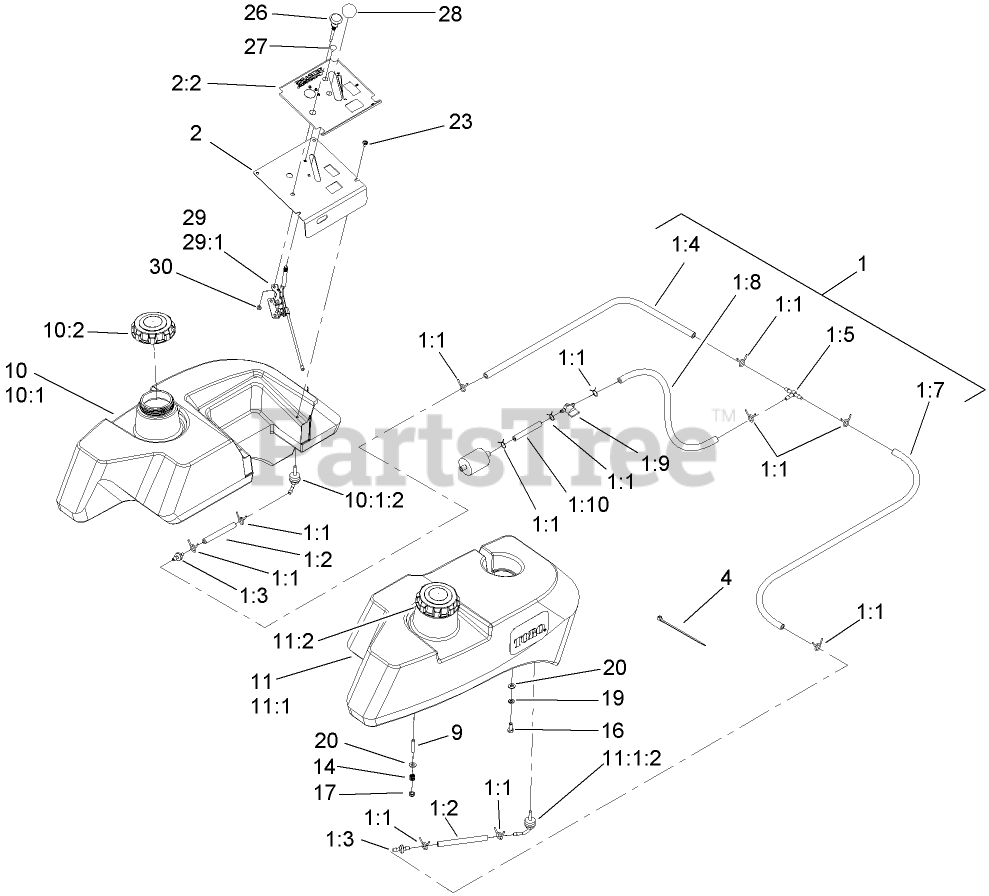

FUEL SYSTEM AND THROTTLE CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 107-9285

FUEL LINE ASM

$

$

Not available

1:1

$1.49

$

In Stock, Qty 8

0

1:2

Toro 109-0678

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

1:3

Toro 99-5000

VALVE-CHECK, FUEL

$9.49

$

In Stock, only 2 left!

0

1:4

Toro 109-0305

HOSE-FUEL
(Superseded to 1-603954)

$8.99

$

In Stock, only 1 left!

0

1:5

Toro 99-5005

FITTING-TEE, BARBED

$2.99

$

In Stock, only 2 left!

0

1:7

Toro 109-0302

HOSE-FUEL

$12.99

$

In Stock, Qty 5

0

1:8

Toro 110-5702

HOSE-FUEL

$24.99

$

Usually ships in 3-6 days

0

1:9

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

1:10

Toro 109-0660

HOSE-FUEL

$4.49

$

In Stock, only 3 left!

0

2

Toro 110-5732

CONTROL PANEL ASM

$

$

Not available

2:2

Toro 110-5731

DECAL-PANEL, CONTROL

$

$

Not available

4

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

9

$6.49

$

Usually ships in 3-6 days

0

10

Toro 105-3644

LH FUEL TANK KIT

$901.99

$

Usually ships in 3-6 days

0

10:1

LH FUEL TANK ASM

Note: Not serviced separately

$

$

Not available

10:1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

10:2

Toro 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, only 1 left!

0

11

Toro 105-3643

RH FUEL TANK KIT

$901.99

$

Usually ships in 3-6 days

0

11:1

RH FUEL TANK ASM

Note: Not serviced separately

$

$

Not available

11:1:2

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

11:2

Toro 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, only 1 left!

0

14

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

17

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

19

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

20

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 11

0

26

Toro 110-5720

CONTROL-CHOKE, PUSH / PULL

$66.99

$

In Stock, Qty 9

0

27

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

28

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 7

0

29

Toro 110-5727

THROTTLE CONTROL ASM

$88.99

$

In Stock, only 3 left!

0

29:1

Toro 112-2334

LEVER-THROTTLE

$82.99

$

Usually ships in 3-6 days

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+
