74261 (Z 560) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270002001 - 270999999) (2007) CASTOR AND WHEEL ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

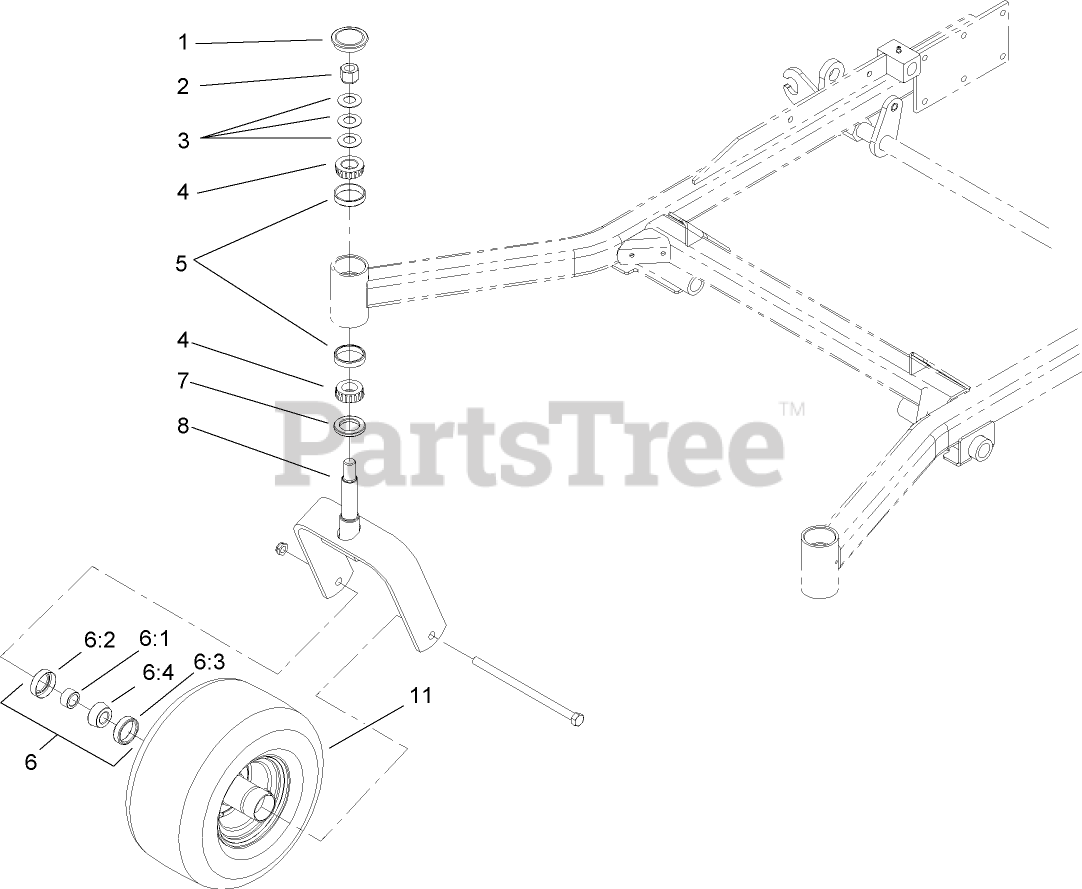

CASTOR AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

2

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

3

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

4

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 16

0

5

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 20+

0

6

Toro 110-8837

CASTER WHEEL BEARING KIT

$50.99

$

In Stock, only 2 left!

0

6:1

Toro 1-633581

SPACER-BEARING

$4.99

$

In Stock, Qty 20+

0

6:2

Toro 1-633580

SEAL-BEARING

$9.49

$

In Stock, Qty 8

0

6:3

Toro 1-633584

BEARING-CUP

$9.49

$

In Stock, Qty 12

0

6:4

Toro 1-633585

BEARING-CONE, TAPER

$21.99

$

In Stock, Qty 20+

0

7

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

8

Toro 1-642111-01

CASTER
(Superseded to 116-8887)

$149.99

$

In Stock, only 1 left!

0

11

Toro 110-5746

CASTOR WHEEL ASM

$333.99

$

In Stock, Qty 5

0
