74259 (Z 288 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) DRIVE IDLER ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

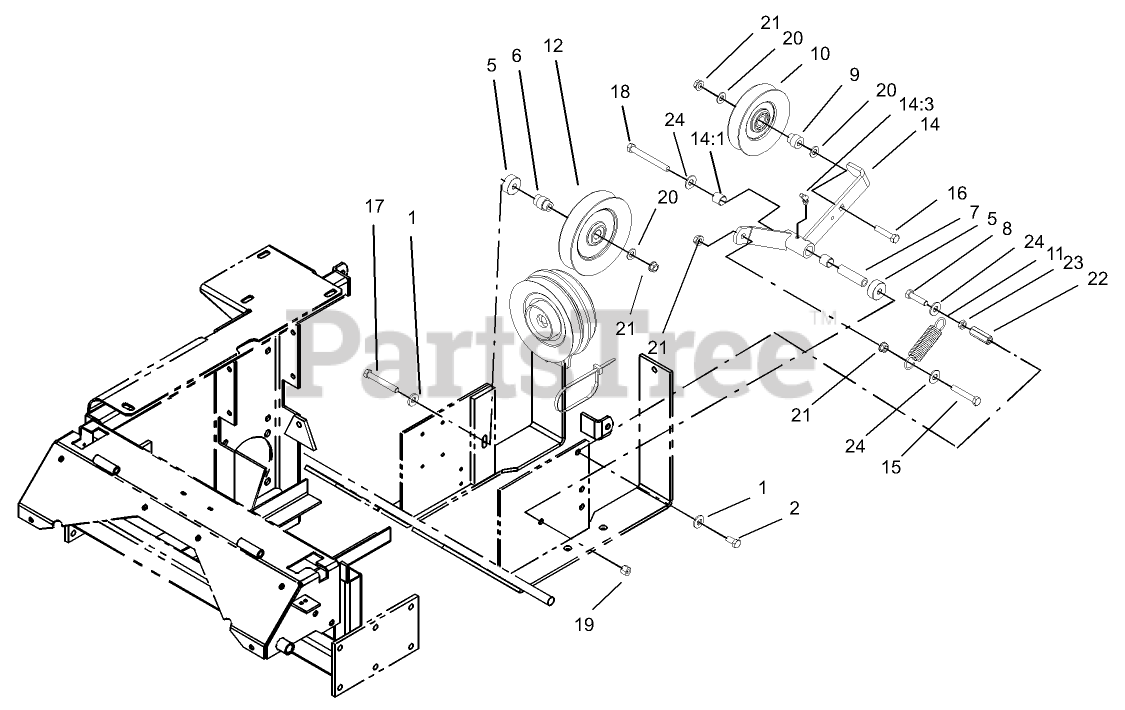

DRIVE IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

2

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

Toro 103-2956

Spacer-Idler

$9.99

$

In Stock, only 2 left!

0

6

Toro 103-2627

Bushing-Idler

$3.49

$

In Stock, Qty 16

0

7

Toro 1-603384

BUSHING-PIVOT, IDLER

$13.99

$

In Stock, Qty 20+

0

8

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

10

Toro 99-4638

Idler
(Superseded to 1-603805)

$54.99

$

In Stock, Qty 11

0

11

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, Qty 20+

0

12

Toro 1-633166

PULLEY-IDLER

$56.99

$

Usually ships in 3-6 days

0

14

Toro 99-4677

IDLER ARM ASM

$152.99

$

In Stock, only 2 left!

0

14:1

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

14:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

15

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

18

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

19

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

22

Toro 103-3286

Nut-Coupling

$5.49

$

Usually ships in 3-6 days

0

23

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+
