74259 (Z 288 E) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) DECK AND WHEEL GAGE ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

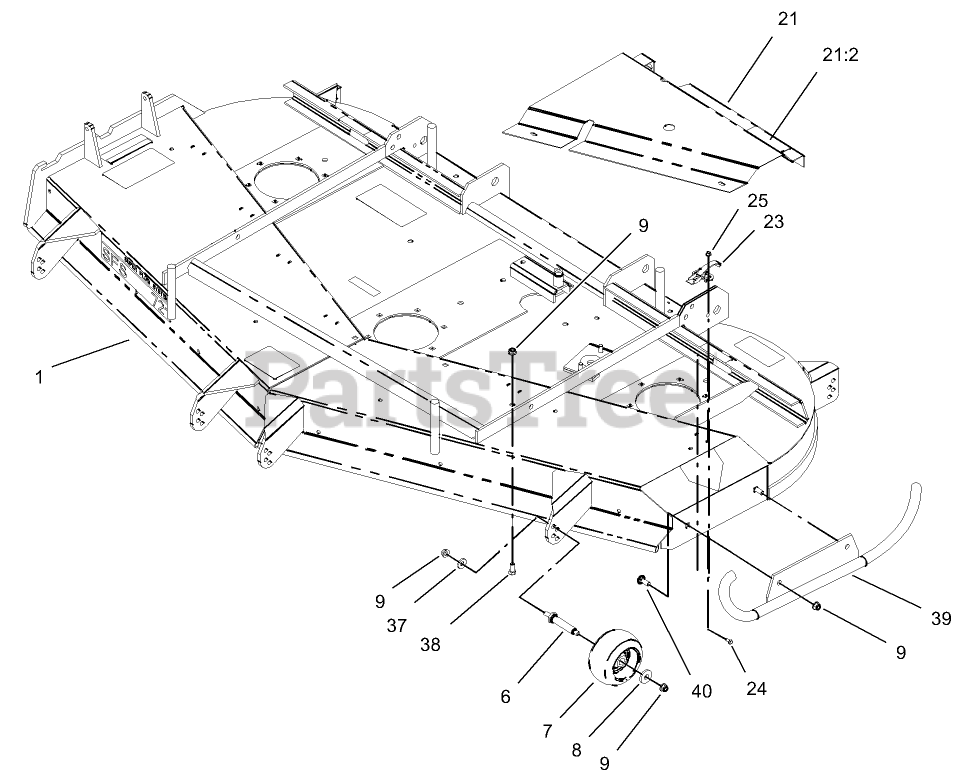

DECK AND WHEEL GAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-1698

DECK SERVICE ASM

$

$

Not available

6

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

7

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 20+

0

8

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

21

Toro 99-2623

LH COVER W/DECAL ASM

$

$

Not available

21:2

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

23

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

24

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

25

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 18

0

37

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

38

Toro 323-2

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

39

Toro 98-7923-01

SKID

$

$

Not available

40

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0
