74258 (Z 288 E) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) SEAT ASSEMBLY NO. 99-8522 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

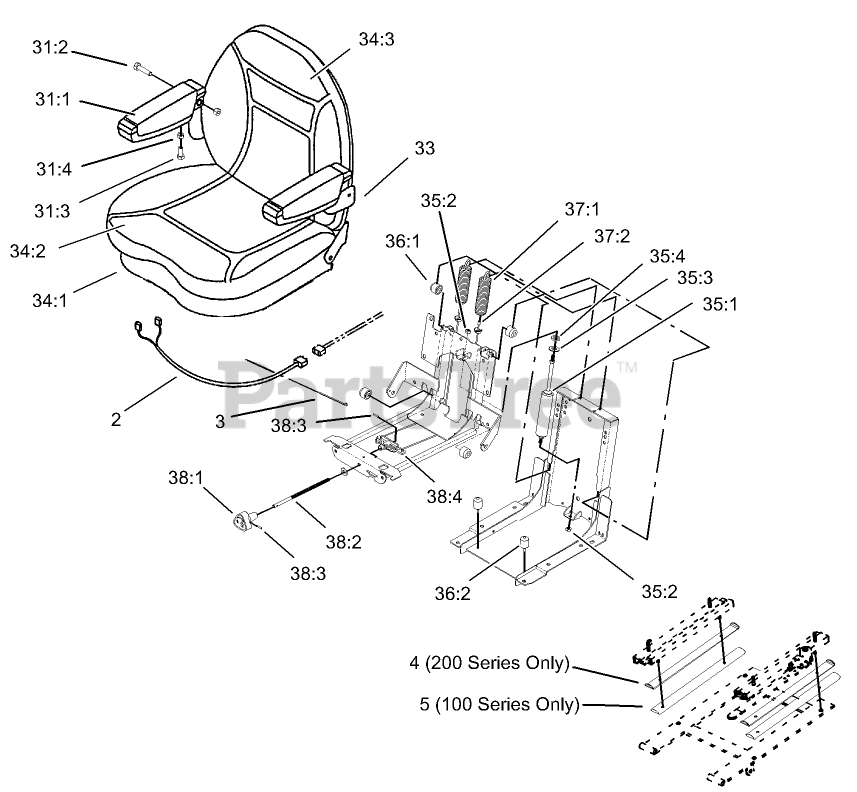

SEAT ASSEMBLY NO. 99-8522 Parts Diagram

  • Title

2

Toro 103-1227

HARNESS-WIRING, SEAT

$23.99

$

Usually ships in 3-6 days

0

3

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

4

Toro 1-633872-03

STOP-SEAT

$46.99

$

Usually ships in 3-6 days

0

5

Toro 1-653282-03

STOP/SPACER-SEAT

$47.99

$

Usually ships in 3-6 days

0

30

Toro 1-643281

SWITCH-SEAT

Note: Not illustrated

$54.99

$

Usually ships in 3-6 days

0

31:1

Pad-Arm

Note: Not serviced separately

$

$

Not available

31:2

Capscrew

Note: Not serviced separately

$

$

Not available

31:3

Capscrew

Note: Not serviced separately

$

$

Not available

31:4

Flange-Locknut

Note: Not serviced separately

$

$

Not available

31:5

Spacer

Note: Not illustrated

$

$

Not available

31

Toro 1-631842

KIT-PAD, ARMREST

$225.99

$

Usually ships in 3-6 days

0

32:1

Boot

Note: Not serviced separately

$

$

Not available

32:2

Wire-Form, Upper

Note: Not illustrated

$

$

Not available

32:3

Wire-Form, Lower

Note: Not serviced separately

$

$

Not available

32:4

Tie Wrap

Note: Not illustrated

$

$

Not available

32

Toro 1-631843

KIT-BOOT

Note: Not illustrated

$

$

Not available

33

Toro 1-631844

ARM KIT ASM

$525.99

$

Usually ships in 3-6 days

0

33:1

Capscrew

Note: Not serviced separately

$

$

Not available

33:2

Armrest ASM

Note: Not serviced separately

$

$

Not available

33:3

Washer

Note: Not serviced separately

$

$

Not available

34:1

Pan

Note: Not serviced separately

$

$

Not available

34:2

Seat-Gray

Note: Not serviced separately

$

$

Not available

34:3

Back-Gray

Note: Not serviced separately

$

$

Not available

34:4

Adhesive-Thermoset

Note: Not illustrated

$

$

Not available

34:5

Nut-Panel

Note: Not serviced separately

$

$

Not available

34:6

Staple

Note: Not serviced separately

$

$

Not available

34

Toro 1-631845

PAN ASM

$

$

Not available

35:1

Damper

Note: Not serviced separately

$

$

Not available

35:2

Locknut-Hex

Note: Not serviced separately

$

$

Not available

35:3

Washer

Note: Not serviced separately

$

$

Not available

35:4

Spacer

Note: Not serviced separately

$

$

Not available

35

Toro 1-631846

KIT-DAMPER

$

$

Not available

36:1

Roller

Note: Not serviced separately

$

$

Not available

36:2

Bumper

Note: Not serviced separately

$

$

Not available

36:4

Spacer

Note: Not illustrated

$

$

Not available

36

Toro 1-631847

KIT-ROLLER

$

$

Not available

37:1

Spring

Note: Not serviced separately

$

$

Not available

37:2

Cable ASM

Note: Not serviced separately

$

$

Not available

37

Toro 1-631848

KIT-SPRING & CABLE

$157.99

$

In Stock, only 1 left!

0

38:1

Knob-Tension, Adjust

Note: Not serviced separately

$

$

Not available

38:2

Shaft-Tension Adjust

Note: Not serviced separately

$

$

Not available

38:3

Pin-Spring

Note: Not serviced separately

$

$

Not available

38:4

Spring-Hanger

Note: Not serviced separately

$

$

Not available

38

Toro 1-631849

KIT-KNOB & SHAFT

$

$

Not available
